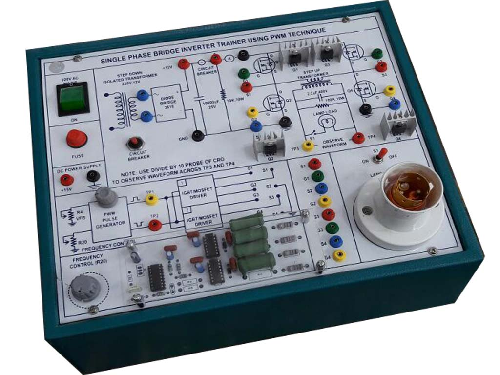

SINGLE PHASE MOSFET BRIDGE INVERTER USING PWM TECHNIQUE manufacturer in india

MODAL NO: MT-E088

QTY


SINGLE PHASE MOSFET BRIDGE INVERTER USING PWM TECHNIQUE manufacturer in india

SCOPE OF LEARNING:

Single Phase Mosfet Bridge Inverter Using PWM Technique.

SALIENT FEATURES:

Protection Cover.

Over Load Protection Through Circuit Breaker

Fuse for Short Circuit protection

Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and      symbols.

Instruction manual.

Patch Cords 2mm Both.

High Voltage Test Points are Provided With 2mm Sockets

The trainer is housed in Metal Cabinet.

Size of the trainer set 12”x8”

OPTIONAL ACCESSORIES:

CRO


TECHNICAL SPECIFICATIONS:

Power Supplies:

Power Supply +15Vat 150mA

Isolated Supply 0-12V AT 2A.

Operated on Mains power 230V, 50Hz +10%

Components are mounted on the panels are:

Mosfet IRF540 (4 Nos.)

PWM Pulse Generator Circuit.

Frequency Control Through Potentiometer

Loads:

Bulb
