Study and
verification of Norton's theorem,2.Study and verification of Thevenin's
Theorem,3.Study and verification of Maximum Power Transfer
Theorem,4.Study and verification of Superposition theorem,5.Study and
verification of Reciprocity theorem,6. Study and verification of
Tellegen's Theorem,7. Kirchhoff current law,8. Kirchhoff voltage law,9.
Ohm 's law,10. Others
| Availability of On Board Circuit for | Study and verification of Norton's theorem,2.Study and verification of Thevenin's Theorem,3.Study and verification of Maximum Power Transfer Theorem,4.Study and verification of Superposition theorem,5.Study and verification of Reciprocity theorem,6. Study and verification of Tellegen's Theorem,7. Kirchhoff current law,8. Kirchhoff voltage law,9. Ohm 's law,10. Others |
| If other then indicate the type of On Board Circuit | LVDT trainer |
| Type of On-board meter available | Digital |
| Number of Potentio meters provided onboard to vary load resistance | 1 |
| Number of variable DC power supply available on board | 1 |
| Variable DC power supply | 30Volt |
| Number of LED indicators available to indicate Power input | 1 |
| Availability of DC Voltmeter available on board | Yes |
| Range of DC Voltmeter (in volt) | 0-50 |
| Availability of DC Ammeter on board | Yes |
| Range of DC Ammeter (in Milli Ampere) | 0-50 |
| Number of test points provided onboard to observe signals | 10 |
| Necessary patch cords available for interconnection | Yes |
| Casing Material | Plastic |
| Availability of CD (Soft Copy) with sample project code, simulation for network theorem kit software & useful documents | No |
| Indicate operating input power supply requirements | 220v |
| Min Operating tempature for Network Theorem Kit in degree celsius | 0 |
| Max Operating temperature for Network Theorem Kit in degree Celsius | 45 |
| Operating Humidity for Network Theorem Kit (RH) | 85% |

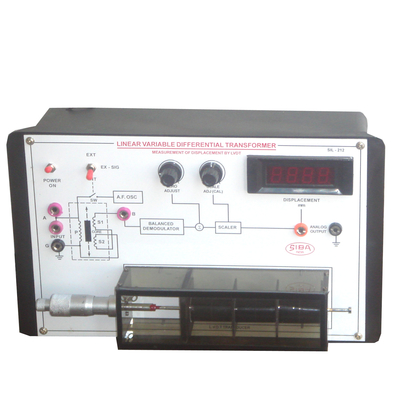

LVDT transducer trainer kit manufacturer in india
