Four-Stroke Petrol Engine Model
Product Specification Sheet
Four-Stroke Petrol Engine Model
Model Number: MT-1234

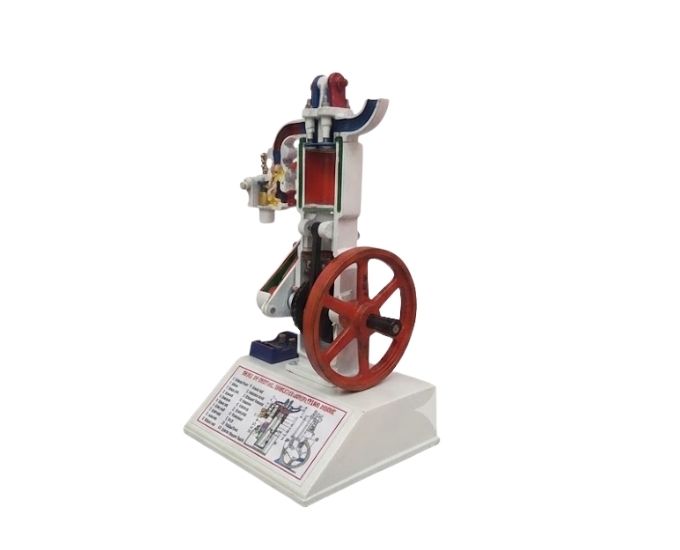

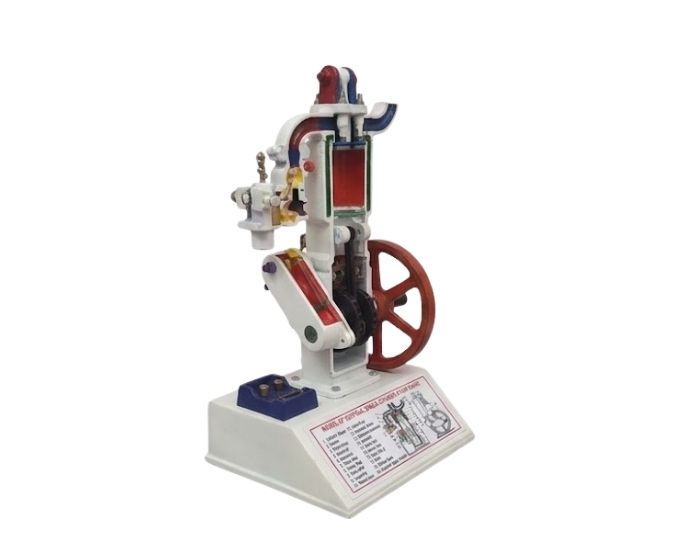

The Four-Stroke Petrol Engine Model from Micro Technologies is a sectional mechanical demonstration model designed to illustrate the construction, piston movement, valve operation, crankshaft rotation and complete four-stroke cycle of a spark-ignition engine. The MT-1234 features visible internal components and a manually operated flywheel mounted on a stable bench-top base for practical engine demonstrations.
Product Specification
The Four-Stroke Petrol Engine Model from Micro Technologies is designed for practical demonstration of the construction and mechanical operation of a four-stroke spark-ignition internal combustion engine. Its sectional configuration provides clear visibility of important engine components and their coordinated movement throughout the operating cycle.
The MT-1234 represents a conventional four-stroke petrol engine arrangement with a visible cylinder, piston, connecting rod, crank mechanism, valve assembly and flywheel. The cutaway-style construction allows internal mechanical movements that are normally hidden inside an engine to be conveniently observed.
A manually operated flywheel enables the mechanism to be rotated slowly and at a controlled speed. As the flywheel turns, users can observe the reciprocating movement of the piston, rotation of the crankshaft and coordinated opening and closing of the valve mechanism.
The model demonstrates the four basic stages of a petrol engine cycle: intake, compression, power and exhaust. A complete operating cycle takes place during four piston strokes and two revolutions of the crankshaft.
During the intake stage, the model demonstrates piston movement and the corresponding inlet-valve operation. The compression stage illustrates how the air-fuel charge is compressed as the piston moves toward the top of the cylinder.
The power stage represents combustion following spark ignition in an actual petrol engine and the resulting downward movement of the piston. The exhaust stage demonstrates the removal of combustion gases through the exhaust side as the piston completes the cycle.
The visible valve mechanism makes the MT-1234 particularly useful for examining the relationship between valve movement, piston position and crankshaft rotation. This provides a practical mechanical representation of basic four-stroke engine timing.
Because the apparatus is a mechanical demonstration model, no petrol or actual combustion is required for basic operation. This allows the complete engine cycle to be repeatedly demonstrated in a controlled laboratory environment.
Manufactured and supplied by Micro Technologies, the Four-Stroke Petrol Engine Model is suitable for automobile engineering laboratories, mechanical engineering laboratories, IC engine laboratories, automotive training facilities, research laboratories and industrial technical training applications.
Features
- Four-stroke petrol engine demonstration model
- Spark-ignition engine representation
- Sectional engine construction
- Visible cylinder and piston mechanism
- Manual flywheel operation
- Crankshaft and connecting-rod movement
- Valve mechanism representation
- Intake and exhaust valve demonstration
- Complete four-stroke cycle visualization
- Stable bench-top mounting
- No fuel required for demonstration
- Compact and reusable laboratory model
Benefits
- Provides clear visualization of four-stroke petrol engine operation
- Demonstrates intake, compression, power and exhaust stages
- Helps examine piston and crankshaft coordination
- Makes valve movement easy to observe
- Manual flywheel enables slow and controlled demonstration
- Useful for studying fundamental engine timing relationships
- No running engine or petrol is required for basic demonstrations
- Suitable for repeated IC engine laboratory investigations
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Four-Stroke Petrol Engine Model |
| Model No. | MT-1234 |
| Engine Type | Petrol / Spark Ignition |
| Operating Cycle | Four Stroke |
| Cycle Stages | Intake, Compression, Power & Exhaust |
| Model Type | Sectional Demonstration Model |
| Operation | Manual |
| Flywheel | Provided |
| Cylinder & Piston | Visible Demonstration Arrangement |
| Valve Mechanism | Demonstrative |
| Mounting | Stable Bench-Top Base |
| Fuel Requirement | None for Demonstration |
| Primary Application | Petrol & IC Engine Demonstration |
Available Model
| Model No. | Product |
|---|---|
| MT-1234 | Four-Stroke Petrol Engine Model |
Applications
- Four-stroke petrol engine demonstration
- Spark-ignition engine studies
- IC engine construction study
- Intake stroke demonstration
- Compression stroke demonstration
- Power stroke demonstration
- Exhaust stroke demonstration
- Piston and crankshaft motion study
- Valve movement observation
- Basic engine timing demonstration
- Automobile engineering laboratory use
- Mechanical engineering laboratory use
- Automotive technical training
Available Variants
Four-Stroke Petrol Engine Model, Four Stroke Spark Ignition Engine Model, Petrol Engine Demonstration Model, Sectional Petrol Engine Model, Four Stroke SI Engine Model, Petrol Engine Cutaway Model, Automotive Petrol Engine Training Model
SKU System
MT-4SPE-1234
FAQs
What is the MT-1234 Four-Stroke Petrol Engine Model used for?
The MT-1234 is designed to demonstrate the construction, internal component movement and complete operating sequence of a four-stroke spark-ignition petrol engine.
What is the model number of this Petrol Engine Model?
The Micro Technologies model number is MT-1234.
What are the four strokes of a petrol engine?
The four strokes are intake, compression, power and exhaust.
How many crankshaft revolutions complete one four-stroke cycle?
A complete four-stroke cycle requires two crankshaft revolutions, during which the piston completes four strokes.
Is the MT-1234 manually operated?
Yes. A manual flywheel allows the engine mechanism to be rotated slowly for convenient observation.
Can valve and piston movements be observed?
Yes. The sectional arrangement provides a visible representation of piston movement and the coordinated operation of the valve mechanism.
Is this a spark-ignition engine model?
Yes. The MT-1234 represents a four-stroke spark-ignition petrol engine.
Does the model require petrol to operate?
No. It is a mechanical demonstration model and does not require petrol or actual combustion for basic operation.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Model MT-1234
- Sectional four-stroke petrol engine arrangement
- Visible piston and valve mechanism
- Manual flywheel for controlled demonstration
- Suitable for automobile and mechanical laboratories
- Stable bench-top construction
- Institutional, OEM and bulk supply available
Call to Action
Equip your automobile or mechanical engineering laboratory with the Four-Stroke Petrol Engine Model – MT-1234 from Micro Technologies for effective demonstration of spark-ignition engine construction and the complete four-stroke cycle. Contact us for competitive pricing, institutional procurement, bulk orders, OEM requirements, distributor supply and customized quotations.
