Small Steam Engine with Horizontal Boiler
Product Specification Sheet
Small Steam Engine with Horizontal Boiler
Model Number: MT-1239

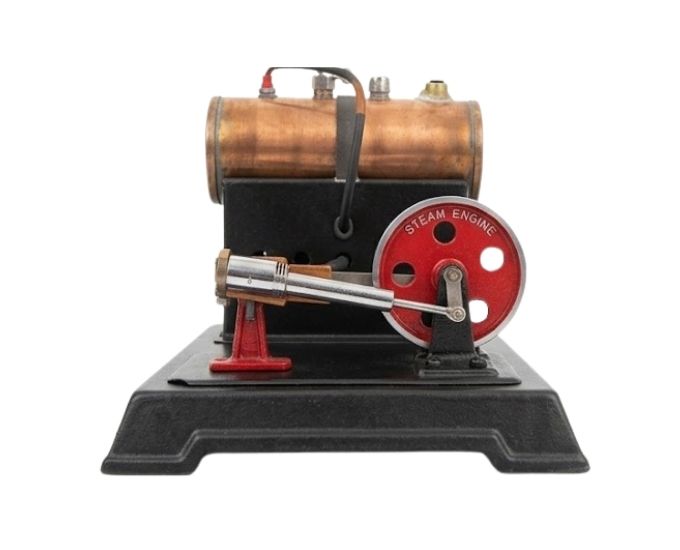

The Small Steam Engine with Horizontal Boiler from Micro Technologies is a compact demonstration apparatus designed to illustrate steam generation, reciprocating engine motion, flywheel rotation and thermal-to-mechanical energy conversion. The MT-1239 features a horizontally mounted boiler with a visible engine and flywheel mechanism arranged on a stable bench-top base for practical steam-engine demonstrations.
Product Specification
The Small Steam Engine with Horizontal Boiler from Micro Technologies is a compact laboratory demonstration model designed for studying the basic construction and operation of a steam-powered reciprocating engine. Its integrated arrangement combines a horizontal boiler and visible mechanical engine mechanism on a common base.
The MT-1239 incorporates a small horizontally positioned cylindrical boiler supported above the base. The boiler arrangement represents the steam-generation section of the system and provides a clear demonstration of the relationship between steam production and mechanical engine operation.
The steam-engine mechanism is positioned alongside the boiler and incorporates a visible piston arrangement, mechanical linkage and flywheel. This open construction allows the motion of the principal mechanical components to be observed during suitable demonstrations.
As the engine mechanism operates, reciprocating movement is transmitted through the connecting arrangement to produce rotation of the flywheel. The model therefore provides a practical representation of the conversion of reciprocating linear motion into continuous rotary motion.
The flywheel provides a clear visual reference for the rotary output of the engine mechanism and helps demonstrate its role in maintaining smoother rotational movement during the operating cycle.
The apparatus is also useful for demonstrating the broader concept of energy conversion in steam-powered systems, where thermal energy is used to generate steam and the resulting pressure is converted into mechanical motion.
Its small-size configuration makes the MT-1239 suitable where laboratory bench space is limited. The integrated base keeps the boiler and engine components in a convenient arrangement for observation and demonstration.
Manufactured and supplied by Micro Technologies, the Small Steam Engine with Horizontal Boiler is suitable for mechanical engineering laboratories, thermal engineering laboratories, steam-power laboratories, engineering training facilities, research laboratories and technical demonstration applications.
Features
- Small-size steam engine model
- Horizontal cylindrical boiler
- Integrated boiler and engine arrangement
- Visible reciprocating mechanism
- Flywheel provided
- Open mechanical construction
- Demonstrates reciprocating-to-rotary motion
- Suitable for steam-power demonstrations
- Compact bench-top configuration
- Stable supporting base
- Clear component visibility
- Suitable for repeated laboratory demonstrations
Benefits
- Demonstrates steam generation and engine operation in one setup
- Provides clear visualization of mechanical energy conversion
- Helps study reciprocating and rotary motion
- Horizontal boiler provides a clear steam-system representation
- Visible flywheel improves observation of rotary output
- Compact size saves laboratory bench space
- Useful for mechanical and thermal engineering demonstrations
- Integrated construction simplifies laboratory setup
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Small Steam Engine with Horizontal Boiler |
| Model No. | MT-1239 |
| Product Type | Steam Engine Demonstration Model |
| Boiler Type | Horizontal |
| Boiler Shape | Cylindrical |
| Size | Small |
| Engine Mechanism | Reciprocating |
| Flywheel | Provided |
| Mechanical Output | Rotary Motion |
| Component Arrangement | Open / Visible |
| Mounting | Common Stable Base |
| Configuration | Bench Top |
| Primary Application | Steam Engine & Energy Conversion Demonstration |
Available Model
| Model No. | Product |
|---|---|
| MT-1239 | Small Steam Engine with Horizontal Boiler |
Applications
- Steam engine demonstrations
- Horizontal boiler studies
- Steam generation demonstrations
- Reciprocating motion studies
- Rotary motion demonstrations
- Crank and linkage mechanism studies
- Flywheel operation demonstrations
- Thermal-to-mechanical energy conversion
- Steam power system studies
- Mechanical engineering laboratory use
- Thermal engineering laboratory use
- Technical training applications
Available Variants
Small Steam Engine with Horizontal Boiler, Horizontal Boiler Steam Engine Model, Mini Steam Engine Model, Working Steam Engine Model, Reciprocating Steam Engine Model, Laboratory Steam Engine Model, Steam Power Demonstration Model, Small Horizontal Steam Engine
SKU System
MT-SEHB-1239
FAQs
What is the MT-1239 Small Steam Engine with Horizontal Boiler used for?
The MT-1239 is designed for demonstrations involving steam generation, reciprocating engine motion, flywheel rotation and thermal-to-mechanical energy conversion.
What is the model number of this Steam Engine?
The Micro Technologies model number is MT-1239.
What type of boiler is provided?
The model features a small horizontal cylindrical boiler integrated with the steam-engine mechanism.
Does the MT-1239 include a flywheel?
Yes. A visible flywheel is provided as part of the engine mechanism to demonstrate rotary movement.
What type of motion does the apparatus demonstrate?
It demonstrates reciprocating motion and its conversion into rotary motion through the engine's mechanical linkage and flywheel.
Can energy conversion be demonstrated with this model?
Yes. The apparatus provides a practical representation of thermal energy being used for steam generation and subsequently converted into mechanical motion.
Why is the small-size configuration useful?
Its compact size requires less bench space while retaining the principal components required for steam-engine and mechanical-motion demonstrations.
Is it suitable for engineering laboratories?
Yes. The MT-1239 is suitable for mechanical engineering, thermal engineering, steam-power and technical training laboratories.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Model MT-1239
- Compact horizontal boiler arrangement
- Visible steam-engine mechanism
- Flywheel and reciprocating motion demonstration
- Space-efficient bench-top design
- Suitable for mechanical and thermal engineering laboratories
- Institutional, OEM and bulk supply available
Call to Action
Add the Small Steam Engine with Horizontal Boiler – MT-1239 from Micro Technologies to your laboratory equipment range for practical steam-power and mechanical energy-conversion demonstrations. Send your quantity and technical requirements for competitive pricing, institutional procurement, OEM orders, distributor supply and customized quotations.
