Horizontal Steam Engine with Electric Heater
Product Specification Sheet
Horizontal Steam Engine with Electric Heater
Model Number: MT-1241
The Horizontal Steam Engine with Electric Heater from Micro Technologies is a practical steam-engine demonstration apparatus designed to illustrate steam generation, reciprocating piston motion, crank mechanism operation, flywheel rotation and thermal-to-mechanical energy conversion. The MT-1241 features a horizontal boiler arrangement with integrated electric heating and a visible engine mechanism mounted on a stable laboratory base.
Product Specification
The Horizontal Steam Engine with Electric Heater from Micro Technologies is designed for laboratory demonstration of steam generation and mechanical power conversion using an electrically heated boiler arrangement. The apparatus provides a clean and convenient alternative to fuel-fired models where electric heating is preferred.

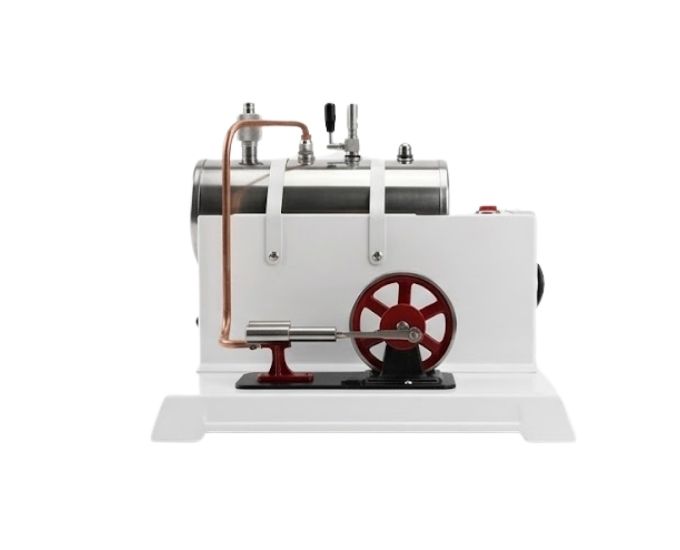

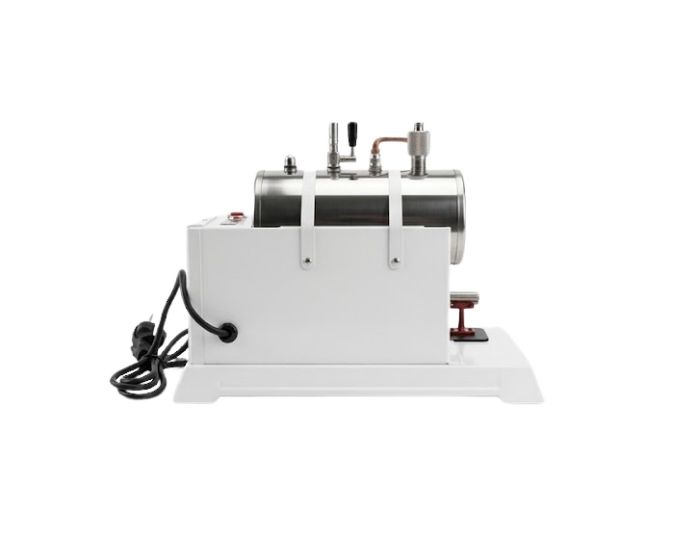

The MT-1241 features a horizontal cylindrical boiler assembly equipped with an electric heating arrangement for generating steam under controlled operating conditions. The boiler is mounted on a rigid base along with the visible steam-engine mechanism.
Steam generated in the boiler is directed to the engine section, where pressure acts on the piston mechanism to create reciprocating motion. This movement is transmitted through the connecting rod and crank arrangement to the flywheel.
A visible flywheel demonstrates the conversion of reciprocating motion into rotary motion and helps illustrate the role of rotational inertia in a reciprocating engine system.
The open mechanical arrangement allows the movement of the piston, connecting rod, crank and flywheel to be clearly observed during operation. This makes the apparatus useful for practical demonstrations of steam-engine kinematics and mechanical energy conversion.
The electric heater provides a convenient heat source without requiring separate liquid or solid fuel. This makes the MT-1241 particularly suitable for controlled indoor laboratory environments where cleaner operation and straightforward electrical heating are desirable.
The apparatus is also useful for demonstrating the broader concept of thermal energy being converted into steam energy and then into mechanical work through the reciprocating engine mechanism.
Its bench-top design keeps the boiler, electric heating system, engine mechanism and flywheel integrated into a single laboratory unit, simplifying setup and observation.
Manufactured and supplied by Micro Technologies, the Horizontal Steam Engine with Electric Heater is suitable for mechanical engineering laboratories, thermal engineering laboratories, steam-power laboratories, research facilities, technical training centers and industrial demonstration applications.
Features
- Horizontal steam engine configuration
- Electrically heated boiler
- Horizontal cylindrical boiler arrangement
- Visible reciprocating engine mechanism
- Connecting rod and crank system
- Flywheel provided
- Demonstrates reciprocating-to-rotary motion
- Clean electric heating arrangement
- Stable laboratory mounting base
- Compact bench-top configuration
- Open mechanical construction for observation
- Suitable for repeated demonstrations
Benefits
- Provides practical demonstration of steam-engine operation
- Electric heating offers clean and convenient operation
- Demonstrates thermal-to-mechanical energy conversion
- Clearly shows crank and flywheel movement
- Useful for studying reciprocating and rotary motion
- Integrated setup simplifies laboratory use
- Suitable for controlled indoor demonstrations
- Supports repeated mechanical and thermal engineering experiments
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Horizontal Steam Engine with Electric Heater |
| Model No. | MT-1241 |
| Product Type | Steam Engine Demonstration Model |
| Boiler Type | Horizontal Cylindrical |
| Heating Method | Electric |
| Engine Mechanism | Reciprocating |
| Flywheel | Provided |
| Motion Output | Rotary |
| Component Visibility | Open / Demonstrative |
| Mounting | Stable Base |
| Configuration | Bench Top |
| Primary Application | Steam Power & Energy Conversion Demonstration |
Available Model
| Model No. | Product |
|---|---|
| MT-1241 | Horizontal Steam Engine with Electric Heater |
Applications
- Steam engine operation demonstration
- Electric steam generation studies
- Reciprocating motion investigations
- Crank mechanism demonstrations
- Flywheel operation studies
- Rotary motion demonstrations
- Thermal energy conversion
- Mechanical energy conversion
- Steam-power demonstrations
- Mechanical engineering laboratory use
- Thermal engineering laboratory use
- Technical training applications
Available Variants
Horizontal Steam Engine with Electric Heater, Electric Steam Engine Model, Electrically Heated Steam Engine, Horizontal Boiler Steam Engine, Working Steam Engine Model, Laboratory Steam Engine Model, Reciprocating Steam Engine Model, Steam Power Demonstration Model
SKU System
MT-HSEE-1241
FAQs
What is the MT-1241 Horizontal Steam Engine with Electric Heater used for?
The MT-1241 is designed for demonstrating steam generation, reciprocating engine motion, crank operation, flywheel rotation and thermal-to-mechanical energy conversion.
What is the model number of this Steam Engine?
The Micro Technologies model number is MT-1241.
What type of heating system is used?
The MT-1241 uses an electric heating arrangement for generating steam in the horizontal boiler.
What type of boiler does the apparatus have?
The model features a horizontal cylindrical boiler integrated with the engine mechanism.
Does the apparatus include a flywheel?
Yes. A visible flywheel is provided to demonstrate rotary motion and the operation of a reciprocating steam engine.
What kind of motion can be observed?
The model demonstrates reciprocating piston motion and its conversion into rotary motion through the crank and flywheel arrangement.
Can this model be used to demonstrate energy conversion?
Yes. The apparatus demonstrates the conversion of electrical energy into heat, heat into steam energy, and steam energy into mechanical motion.
Is the MT-1241 suitable for engineering laboratories?
Yes. It is suitable for mechanical engineering, thermal engineering, steam-power and technical training laboratories.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Model MT-1241
- Electrically heated horizontal boiler
- Visible reciprocating engine mechanism
- Flywheel and crank arrangement
- Clean and convenient laboratory operation
- Suitable for mechanical and thermal engineering laboratories
- Institutional, OEM and bulk supply available
Call to Action
Choose the Horizontal Steam Engine with Electric Heater – MT-1241 from Micro Technologies for practical steam-power and energy-conversion demonstrations. Contact us for competitive pricing, institutional procurement, bulk quantities, OEM requirements, distributor supply and customized quotations.
