Red Fuel Operated Steam Engine Model
Product Specification Sheet
Red Fuel Operated Steam Engine Model
Model Number: MT-1238
The Red Fuel Operated Steam Engine Model from Micro Technologies is a compact working demonstration apparatus designed to illustrate steam generation, reciprocating piston movement, crankshaft operation, flywheel rotation and mechanical energy conversion. The MT-1238 features a boiler-style chamber, burner arrangement and visible mechanical drive system mounted on a stable red base for practical steam-engine demonstrations.
Product Specification
The Red Fuel Operated Steam Engine Model from Micro Technologies is a compact demonstration apparatus designed for practical observation of the operation and mechanical arrangement of a traditional reciprocating steam engine. Its visible construction allows the relationship between steam generation and mechanical motion to be studied in a convenient bench-top configuration.

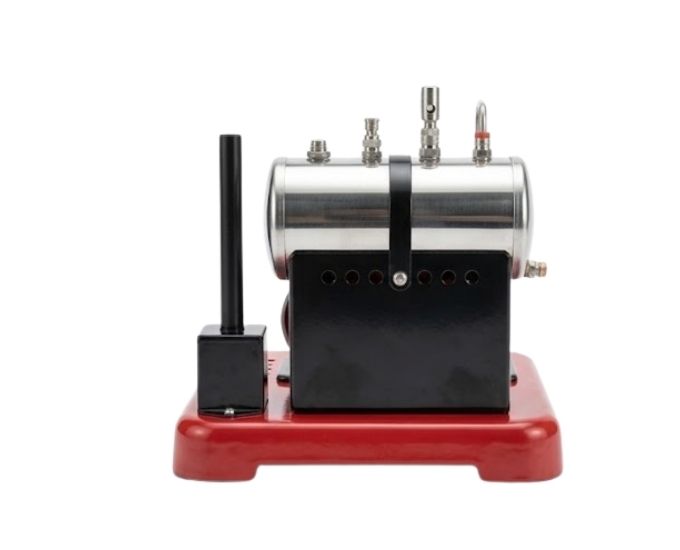

The MT-1238 incorporates a cylindrical boiler-style vessel positioned above the mechanical engine assembly. A suitable fuel-operated heating arrangement provides thermal energy for generating steam from water placed in the system according to the specified operating procedure.
Steam produced in the system is directed toward the engine mechanism, where pressure produces reciprocating movement. This movement is transferred through the mechanical linkage to the crankshaft and flywheel, providing a visible demonstration of the conversion of thermal energy into mechanical motion.

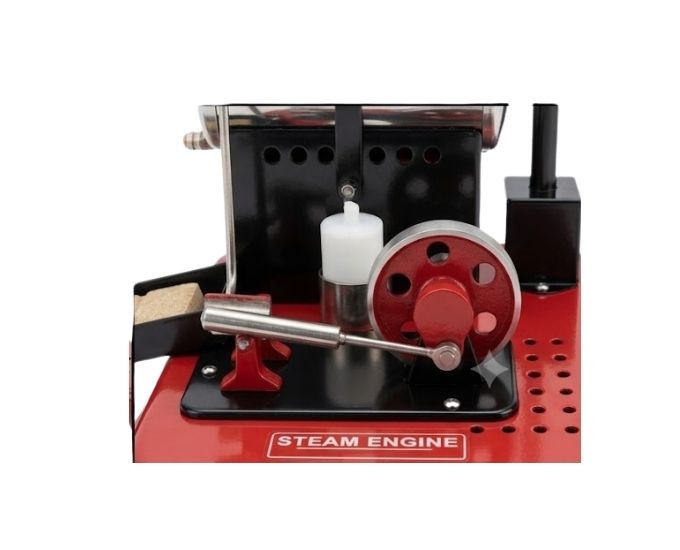

A prominent flywheel forms an important part of the demonstration. As the engine operates, the flywheel rotates and helps illustrate how reciprocating piston movement can be converted into smoother continuous rotary motion.
The exposed crank and linkage arrangement allows the mechanical motion of the engine to remain clearly visible. This makes the model useful for studying reciprocating motion, rotary motion, crank mechanisms, flywheel action and basic steam-power conversion.
The fuel-operated configuration provides a more practical representation of a working steam-engine system than a purely static model. It allows the relationship between heating, steam generation and resulting mechanical output to be demonstrated within one compact apparatus.
The MT-1238 is mounted on a stable base that supports the boiler, engine mechanism, flywheel and heating arrangement. Its compact construction makes it suitable for bench-top demonstrations while allowing convenient observation of the principal components.
Manufactured and supplied by Micro Technologies, the Red Fuel Operated Steam Engine Model is suitable for mechanical engineering laboratories, thermal engineering laboratories, steam engineering demonstrations, research facilities, industrial training centers and technical demonstration applications.
Features
- Fuel-operated steam engine model
- Cylindrical boiler-style chamber
- Steam generation arrangement
- Reciprocating engine mechanism
- Visible crank and linkage system
- Rotary flywheel
- Demonstrates thermal-to-mechanical energy conversion
- Open mechanical construction for observation
- Compact bench-top configuration
- Stable supporting base
- Suitable for practical steam-engine demonstrations
- Reusable laboratory apparatus
Benefits
- Provides a practical demonstration of steam-engine operation
- Connects steam generation with mechanical motion
- Demonstrates reciprocating-to-rotary motion conversion
- Makes crank and flywheel movement clearly observable
- Useful for thermal and mechanical energy-conversion studies
- Compact configuration simplifies laboratory installation
- Suitable for repeated engineering demonstrations
- Provides a more interactive demonstration than a static engine model
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Red Fuel Operated Steam Engine Model |
| Model No. | MT-1238 |
| Product Type | Working Steam Engine Demonstration Model |
| Energy Source | Fuel Operated |
| Boiler Arrangement | Cylindrical |
| Engine Mechanism | Reciprocating |
| Flywheel | Provided |
| Motion Output | Rotary |
| Mechanical Linkage | Visible |
| Mounting | Stable Base |
| Configuration | Bench Top |
| Primary Application | Steam Engine & Energy Conversion Demonstration |
Available Model
| Model No. | Product |
|---|---|
| MT-1238 | Red Fuel Operated Steam Engine Model |
Applications
- Steam engine operation demonstration
- Steam generation studies
- Reciprocating motion demonstration
- Rotary motion investigation
- Crank mechanism study
- Flywheel action demonstration
- Thermal energy conversion studies
- Mechanical energy conversion demonstrations
- Steam power demonstrations
- Mechanical engineering laboratory use
- Thermal engineering laboratory use
- Technical and industrial training
Available Variants
Fuel Operated Steam Engine Model, Red Steam Engine Model, Working Steam Engine Model, Live Steam Engine Demonstration Model, Reciprocating Steam Engine Model, Miniature Steam Engine Model, Laboratory Steam Engine Model, Steam Power Demonstration Model
SKU System
MT-FOSE-1238
FAQs
What is the MT-1238 Fuel Operated Steam Engine Model used for?
The MT-1238 is designed for demonstrating steam generation, reciprocating engine motion, flywheel rotation and conversion of thermal energy into mechanical motion.
What is the model number of this Steam Engine Model?
The Micro Technologies model number is MT-1238.
Is the MT-1238 a working steam engine model?
It is designed as a fuel-operated demonstration model in which steam generation can be used to demonstrate mechanical engine operation when operated according to the supplied specifications and instructions.
Does the model have a flywheel?
Yes. A visible flywheel is incorporated to demonstrate rotary motion and the mechanical action of a reciprocating steam engine.
What type of motion does the model demonstrate?
The model demonstrates reciprocating motion and its conversion into rotary motion through the crank and flywheel mechanism.
Can this model demonstrate energy conversion?
Yes. It provides a practical representation of the conversion of thermal energy into steam energy and subsequently into mechanical motion.
Is the model suitable for thermal engineering laboratories?
Yes. It is suitable for thermal engineering, mechanical engineering, steam power and energy-conversion laboratory demonstrations.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Model MT-1238
- Fuel-operated demonstration configuration
- Visible steam-engine mechanism
- Cylindrical boiler arrangement
- Clear flywheel and crank movement
- Compact bench-top construction
- Suitable for mechanical and thermal engineering laboratories
- Institutional, OEM and bulk supply available
Call to Action
Bring practical steam-power demonstrations to your laboratory with the Red Fuel Operated Steam Engine Model – MT-1238 from Micro Technologies. Contact us for technical specifications, competitive pricing, institutional procurement, bulk requirements, OEM orders, distributor supply and customized quotations.
