Sectional Steam Engine Model
Product Specification Sheet
Sectional Steam Engine Model
Model Number: MT-1244
The Sectional Steam Engine Model from Micro Technologies is a mechanical demonstration model designed to provide clear visualization of the internal construction, piston movement, connecting-rod action, crankshaft rotation and flywheel operation of a reciprocating steam engine. The MT-1244 features an exposed sectional arrangement mounted on a stable base for convenient observation of the complete motion-conversion mechanism.
Product Specification
The Sectional Steam Engine Model from Micro Technologies is designed for detailed mechanical demonstration of the internal arrangement and motion of a reciprocating steam engine. Its sectional construction exposes the principal operating components, allowing their relative positions and movements to be clearly observed.

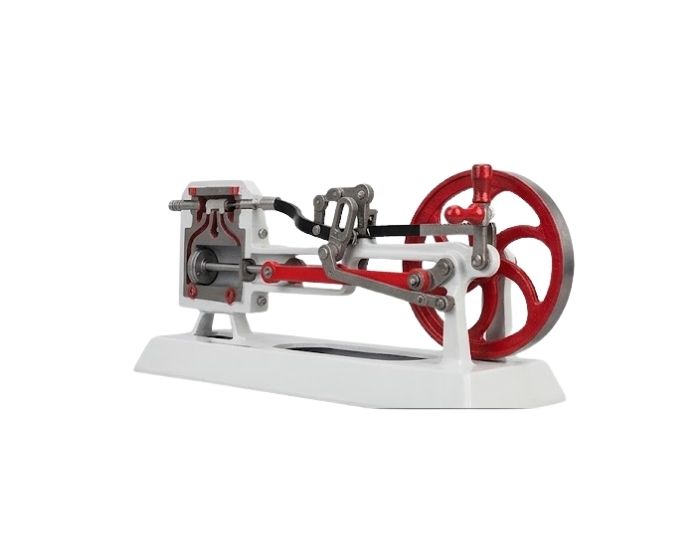

The MT-1244 features a horizontally arranged cylinder and piston mechanism connected to an elongated mechanical linkage. The sectional configuration provides direct visual access to components that would normally remain enclosed inside an operating steam engine.
Movement of the piston produces a reciprocating action that is transmitted through the connecting mechanism to the crank. This arrangement demonstrates how linear reciprocating motion is converted into rotary motion.
A prominent flywheel is incorporated at one end of the model. Rotation of the mechanism demonstrates the relationship between piston movement, crank position and flywheel motion throughout the operating sequence.
The exposed connecting rod and crank arrangement provides a practical representation of one of the fundamental mechanisms used in reciprocating engines. The model is therefore useful for examining piston displacement, connecting-rod movement, crank rotation and flywheel action.
The sectional design also allows different stages of the mechanical cycle to be observed at a convenient speed. This is particularly useful for demonstrations where the relationship between internal components needs to be examined more closely than would be possible with a fully enclosed engine.
Unlike a live steam-engine apparatus, the MT-1244 is primarily intended as a sectional mechanical demonstration model, making it convenient for repeated laboratory observation without requiring steam generation for basic mechanism studies.
The complete mechanism is mounted on a rigid bench-top base that maintains component alignment and provides stable positioning during demonstrations.
Manufactured and supplied by Micro Technologies, the Sectional Steam Engine Model is suitable for mechanical engineering laboratories, thermal engineering laboratories, steam-power laboratories, engineering training facilities, research laboratories and industrial technical demonstration applications.
Features
- Sectional steam engine construction
- Horizontal engine arrangement
- Exposed piston mechanism
- Visible connecting rod
- Crank mechanism representation
- Large flywheel
- Clear internal component visibility
- Demonstrates reciprocating motion
- Demonstrates rotary motion
- Reciprocating-to-rotary motion conversion
- Stable bench-top base
- Suitable for repeated demonstrations
- No steam generation required for basic mechanism study
Benefits
- Provides clear visualization of internal steam-engine components
- Makes piston and connecting-rod movement easy to observe
- Demonstrates crank and flywheel coordination
- Helps study reciprocating-to-rotary motion conversion
- Sectional construction improves understanding of engine geometry
- Allows controlled observation of different mechanism positions
- Requires no live steam for basic mechanical demonstrations
- Suitable for repeated engineering laboratory investigations
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Sectional Steam Engine Model |
| Model No. | MT-1244 |
| Product Type | Sectional Mechanical Demonstration Model |
| Engine Representation | Reciprocating Steam Engine |
| Arrangement | Horizontal |
| Construction | Sectional / Exposed |
| Piston Mechanism | Visible |
| Connecting Rod | Provided |
| Crank Mechanism | Visible |
| Flywheel | Provided |
| Motion Demonstrated | Reciprocating & Rotary |
| Mounting | Stable Bench-Top Base |
| Primary Application | Steam Engine Mechanism Demonstration |
Available Model
| Model No. | Product |
|---|---|
| MT-1244 | Sectional Steam Engine Model |
Applications
- Steam engine construction study
- Sectional engine demonstrations
- Piston movement observation
- Connecting-rod mechanism studies
- Crank mechanism demonstrations
- Flywheel operation studies
- Reciprocating motion investigation
- Rotary motion demonstration
- Motion-conversion studies
- Mechanical engineering laboratory use
- Thermal engineering laboratory use
- Steam-engine training and demonstration
Available Variants
Sectional Steam Engine Model, Steam Engine Cutaway Model, Cut Section Steam Engine Model, Reciprocating Steam Engine Model, Steam Engine Mechanism Model, Mechanical Steam Engine Model, Steam Engine Demonstration Model, Laboratory Steam Engine Model
SKU System
MT-SSEM-1244
FAQs
What is the MT-1244 Sectional Steam Engine Model used for?
The MT-1244 is designed for demonstrating the internal construction, piston movement, connecting-rod action, crank mechanism and flywheel operation of a reciprocating steam engine.
What is the model number of the Sectional Steam Engine?
The Micro Technologies model number is MT-1244.
What does sectional construction mean?
Sectional construction means that important portions of the engine are opened or exposed to make internal components and their mechanical movement visible.
Can piston movement be observed?
Yes. The model provides clear visualization of the reciprocating piston mechanism and its connection with the crank system.
Does the MT-1244 have a flywheel?
Yes. A large visible flywheel is incorporated into the mechanism.
What type of motion does the model demonstrate?
It demonstrates reciprocating linear motion and its conversion into rotary motion through the connecting rod and crank mechanism.
Does the model require steam for demonstration?
For basic study of the sectional mechanism and component movement, live steam is not required.
Where can the Sectional Steam Engine Model be used?
It is suitable for mechanical engineering laboratories, thermal engineering laboratories, steam-power laboratories, technical training centers and engineering demonstration facilities.
