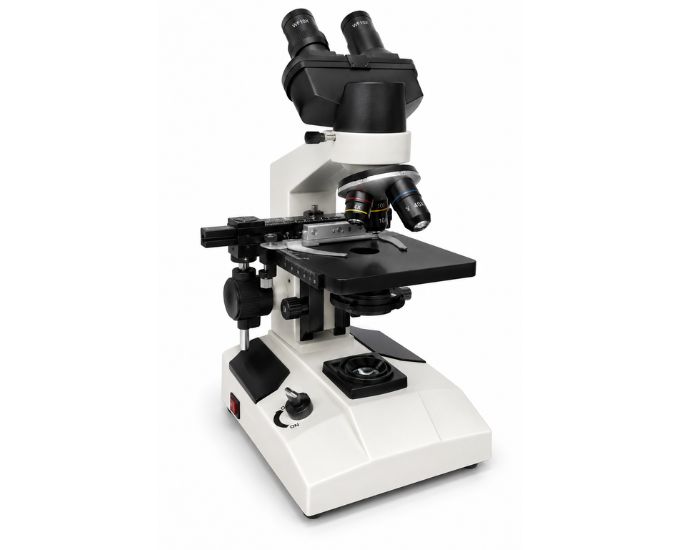

Research Binocular Microscope (MT-258 Series)

The Research Binocular Microscope (MT-258 Series) is a premium research-grade optical microscope developed for precise microscopic analysis in hospitals, pathology laboratories, research institutes, universities, pharmaceutical industries, and diagnostic centres. Manufactured by Micro Technologies, the microscope combines advanced optics with precision mechanical components to deliver accurate and reliable specimen observation.

The microscope is constructed with an all-aluminum pressure die-cast body, providing exceptional rigidity, durability, and vibration-free operation during continuous laboratory use. The ergonomic design ensures comfortable observation even during prolonged research sessions.

The 120 × 140 mm square mechanical stage is fitted with a coaxial low-drive X-Y mechanical stage with graduated scales on both axes, allowing accurate specimen positioning and smooth slide movement for detailed examination.

The quadruple revolving nosepiece with precision click-stop mechanism enables quick objective changes while maintaining optical alignment. The microscope features coaxial coarse and fine focusing controls with graduated scale, ensuring precise focusing across all magnification levels.

The binocular observation system consists of a 45° inclined binocular head with inter-pupillary adjustment, reducing operator fatigue and improving viewing comfort during extended laboratory work.

The optical system includes parfocal achromatic objectives (5x, 10x, 45x (SL), and 100x oil immersion (SL)) together with a pair of 10x wide-field eyepieces, providing bright, sharp, and high-contrast images for advanced biological and clinical observations.

A sub-stage Abbe condenser (N.A. 1.25) equipped with a movable iris diaphragm and blue filter provides excellent illumination control and enhanced image contrast. Illumination is supplied through a 6V 20W built-in halogen lamp or energy-efficient LED illumination with SMPS, ensuring uniform lighting and dependable performance.

Manufactured by Micro Technologies, every Research Binocular Microscope undergoes stringent quality inspection to ensure dependable optical performance, precise mechanical operation, and long operational life. The MT-258 Series is widely used in pathology laboratories, microbiology laboratories, hospitals, universities, biotechnology companies, pharmaceutical industries, research institutes, and diagnostic laboratories.

Features

• Research-grade binocular microscope
• All-aluminum pressure die-cast body
• 45° inclined binocular observation head
• Adjustable inter-pupillary distance
• Quadruple revolving nosepiece
• 120 × 140 mm coaxial mechanical stage
• X-Y graduated stage movement
• Coarse and fine focusing with scale
• Parfocal achromatic objectives
• Objectives: 5x, 10x, 45x & 100x Oil Immersion
• Pair of 10x wide-field eyepieces
• Abbe condenser (N.A. 1.25)
• Movable iris diaphragm with blue filter
• Built-in 6V 20W Halogen / LED illumination with SMPS
• Long operational life

Benefits

• High-resolution research imaging
• Comfortable binocular viewing
• Accurate X-Y specimen positioning
• Smooth objective selection
• Excellent optical clarity
• Ideal for advanced laboratory research
• Reliable continuous operation
• Durable laboratory construction
• Easy maintenance
• Long service life

Product Specifications

Available Models

Optional Accessories

• Plan Achromatic Objectives
• Phase Contrast Attachment
• Mechanical Stage Upgrade
• Digital Camera Adapter
• Trinocular Head Conversion
• Immersion Oil
• Dust Cover
• Calibration Certificate

SKU System

• MT-258-A

FAQs

What is the MT-258 Research Binocular Microscope used for?

The MT-258 Series is designed for advanced biological research, microbiology, pathology, clinical diagnostics, pharmaceutical research, biotechnology, and higher education.

What objectives are supplied with the microscope?

The microscope includes 5x, 10x, 45x (SL), and 100x oil immersion (SL) achromatic objectives.

Does it include a binocular observation head?

Yes. The MT-258 features a 45° inclined binocular head with adjustable inter-pupillary distance for comfortable observation.

What type of stage is provided?

It is equipped with a 120 × 140 mm coaxial low-drive mechanical stage with X-Y movement and graduated scales.

What illumination system is used?

The microscope is supplied with a 6V 20W built-in halogen lamp or LED illumination with SMPS, ensuring bright and uniform lighting.

Which laboratories commonly use the MT-258 Series?

The microscope is widely used in pathology laboratories, microbiology laboratories, hospitals, universities, biotechnology companies, pharmaceutical industries, diagnostic centres, and research institutes.

Can the MT-258 Series be supplied in bulk?

Yes. Micro Technologies offers OEM manufacturing, institutional procurement, government tender supply, distributor support, export orders, and bulk laboratory equipment supply.

Why Choose Our Products

• Research-grade optical performance
• Premium binocular viewing system
• Precision X-Y mechanical stage
• Multiple achromatic objectives
• LED/Halogen illumination options
• Durable die-cast aluminum construction
• OEM and customized manufacturing
• Competitive pricing
• Bulk supply capability
• Strict quality inspection
• Professional technical support
• Reliable after-sales service

Call to Action

Looking for a reliable Research Binocular Microscope (MT-258 Series)? Micro Technologies manufactures and supplies premium research microscopes designed for hospitals, pathology laboratories, microbiology laboratories, universities, pharmaceutical industries, biotechnology companies, research institutes, and diagnostic centres. Contact us today for customized specifications, OEM manufacturing, government tenders, distributor inquiries, bulk orders, or a competitive quotation.
