Binocular Microscope for Laboratory
Product Specification Sheet
Binocular Microscope for Laboratory
Model Number: MTM-004

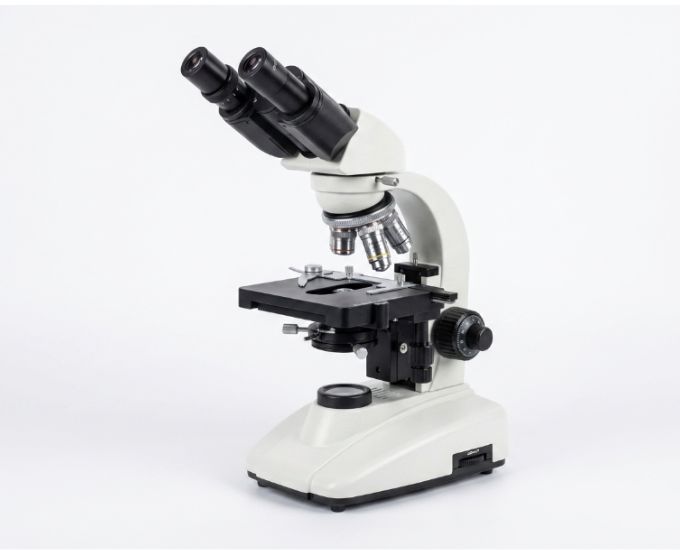

The Premium Research Binocular Microscope from Micro Technologies is a best-selling laboratory microscope designed for advanced biological research, clinical diagnostics, pathology, microbiology, and educational applications. Equipped with a 45° inclined sliding binocular head, WF10X and WF16X eyepieces, precision objectives, a double-layer mechanical stage, and high-intensity halogen illumination, it delivers exceptional optical clarity and precise specimen observation. Its ergonomic design, fine focusing accuracy, and durable construction make it an ideal choice for hospitals, universities, research institutes, pharmaceutical laboratories, and industrial quality control facilities.
Product Specification
The Premium Research Binocular Microscope is a professional-grade optical instrument engineered for high-precision biological observation, laboratory diagnostics, and scientific research. Designed to deliver outstanding image quality and user comfort, this microscope is widely used in hospitals, universities, pathology laboratories, pharmaceutical companies, and research institutes.
The microscope features a 45° inclined sliding binocular head that rotates through 360°, providing comfortable viewing from multiple angles during extended laboratory sessions. It is equipped with WF10X and WF16X wide-field eyepieces and 4X, 10X, 40X spring-loaded, and 100X oil immersion spring-loaded objectives, delivering clear, bright, and high-contrast images suitable for detailed specimen analysis.
A 140 × 155 mm double-layer mechanical stage with a 70 × 50 mm moving range ensures smooth and precise specimen positioning. The integrated N.A. 1.25 Abbe condenser, complete with an iris diaphragm and filter holder, provides uniform light concentration for enhanced resolution and image contrast.
The microscope incorporates coaxial coarse and fine focusing adjustments with a fine focusing precision of 0.002 mm, enabling accurate image refinement even at high magnifications. Illumination is provided by a 6V/20W halogen lamp, compatible with both 110V and 220V power supplies, ensuring bright and consistent lighting for demanding laboratory applications.
Manufactured with a robust metal body and premium optical components, this microscope delivers excellent durability, vibration resistance, and long-term operational reliability. As one of the best-selling binocular microscopes from Micro Technologies, it is trusted by educational institutions, hospitals, diagnostic centers, research organizations, and industrial laboratories for dependable performance and superior optical quality.
Features
- 45° inclined sliding binocular head
- 360° rotatable viewing head
- WF10X and WF16X wide-field eyepieces
- 4X, 10X, 40X (Spring), and 100X Oil Immersion objectives
- Double-layer mechanical stage (140 × 155 mm)
- Stage movement: 70 × 50 mm
- N.A. 1.25 Abbe condenser with iris diaphragm and filter holder
- Coaxial coarse and fine focusing adjustment
- Fine focusing precision: 0.002 mm
- 6V/20W halogen illumination
- Dual voltage (110V/220V)
- Heavy-duty metal construction
- Best-selling laboratory microscope
Benefits
- High-resolution optical performance for professional microscopy
- Comfortable binocular viewing minimizes eye fatigue
- Precision focusing ensures accurate specimen analysis
- Smooth mechanical stage improves laboratory efficiency
- Bright halogen illumination enhances image clarity
- Durable construction ensures long service life
- Suitable for education, research, diagnostics, and industrial laboratories
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Premium Research Binocular Microscope |
| Model Number | MTM-004 |
| Product Type | Compound Binocular Microscope |
| Viewing Head | Sliding Binocular Head, 45° Inclined, 360° Rotatable |
| Eyepieces | WF10X, WF16X |
| Objectives | 4X, 10X, 40X (Spring), 100X Oil Immersion (Spring) |
| Stage | Double Layer Mechanical Stage |
| Stage Size | 140 × 155 mm |
| Stage Movement | 70 × 50 mm |
| Condenser | N.A. 1.25 Abbe Condenser |
| Diaphragm | Iris Diaphragm with Filter Holder |
| Focusing | Coaxial Coarse & Fine Adjustment |
| Fine Focus Precision | 0.002 mm |
| Illumination | 6V/20W Halogen Lamp |
| Operating Voltage | 110V/220V |
| Body Construction | Heavy-duty Metal |
| Applications | Biology, Microbiology, Pathology, Clinical Diagnostics, Research & Education |
| Compliance | Manufactured under ISO Quality Management Standards |
Available Variants
- Standard Binocular Microscope
- Research Binocular Microscope
- Clinical Binocular Microscope
- Professional Laboratory Microscope
- Binocular Microscope with WF16X Eyepieces
FAQs
What is the maximum magnification of this microscope?
The microscope supports magnifications up to 1000X, making it ideal for detailed biological, microbiological, and pathological examinations.
Why does this microscope include both WF10X and WF16X eyepieces?
The two wide-field eyepieces provide flexible viewing options and improved observation for different laboratory applications.
Is this microscope suitable for research laboratories?
Yes. Its precision optics, 0.002 mm fine focusing accuracy, and mechanical stage make it suitable for advanced research, clinical diagnostics, and pharmaceutical laboratories.
What type of illumination does it use?
The microscope features a 6V/20W halogen illumination system compatible with 110V and 220V power supplies for bright and uniform lighting.
Do you offer bulk supply?
Yes. Micro Technologies supplies bulk quantities to hospitals, universities, distributors, research institutes, government laboratories, and industrial organizations.
How should the microscope be maintained?
Clean the optical lenses with lens tissue, keep the microscope covered when not in use, avoid dust and moisture, and perform periodic servicing to maintain optimal performance.
Why Choose Our Products
- Premium optical components for crystal-clear imaging
- Precision engineering with rigorous quality inspection
- Durable metal construction for continuous laboratory use
- Competitive pricing for institutional procurement
- Reliable technical support and after-sales service
- Trusted by educational institutions, hospitals, and research laboratories
Call to Action
Looking for a best-selling Premium Research Binocular Microscope? Micro Technologies manufactures and supplies high-quality binocular microscopes for hospitals, universities, colleges, research institutes, pharmaceutical companies, and industrial laboratories. Contact us today for bulk pricing, OEM manufacturing, distributor partnerships, or a customized quotation tailored to your laboratory requirements.
