Professional Binocular Compound Microscope with Oil Immersion
Product Specification Sheet

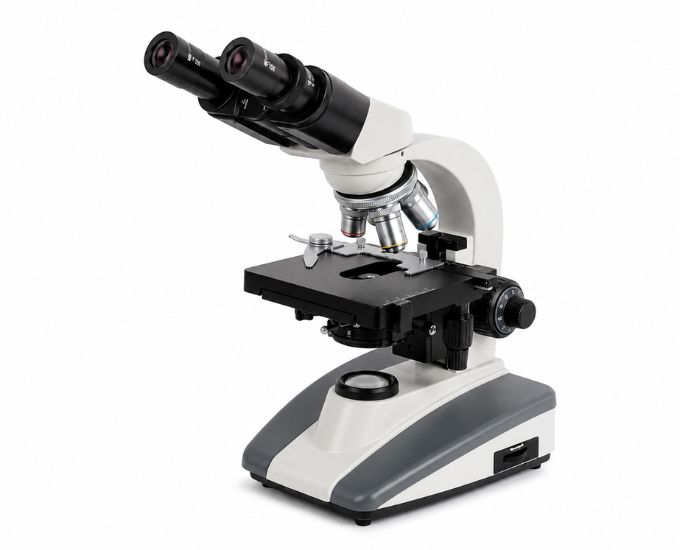

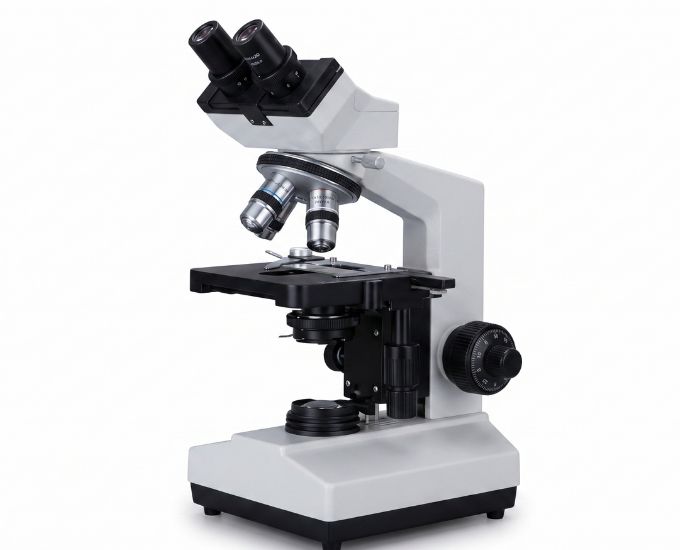

Professional Binocular Compound Microscope with Oil Immersion
Model Number: MTM-021
The Professional Binocular Compound Microscope from Micro Technologies is developed to deliver superior optical performance for laboratories, hospitals, educational institutions, and research facilities. Featuring a 45° inclined, 360° rotatable binocular head and precision-engineered optics, this microscope provides comfortable viewing with exceptional image clarity. Equipped with oil immersion capability, a double-layer mechanical stage, and an Abbe condenser, it supports accurate specimen analysis across biological, microbiological, pathological, and clinical applications. Its robust construction, precision focusing system, and versatile illumination options make it an excellent investment for demanding laboratory environments.
Product Specification
The Professional Binocular Compound Microscope with Oil Immersion is designed for laboratories requiring precision, durability, and outstanding optical performance. Built with premium-quality optical components and a rigid laboratory-grade frame, it enables accurate examination of biological specimens, microorganisms, blood smears, tissue samples, and microbiological cultures.
Its ergonomic binocular viewing head is inclined at 45° and rotates through 360°, allowing users to maintain a comfortable posture during prolonged observation sessions while making the instrument convenient for multiple operators. The wide-field WF10X eyepieces, combined with 4X, 10X, 40X spring-loaded, and 100X spring-loaded oil immersion objectives, provide excellent resolution across a broad range of magnifications.
The microscope incorporates a precision double-layer mechanical stage measuring 115 × 125 mm, allowing smooth X-Y movement for accurate specimen positioning. Its N.A. 1.25 Abbe condenser, complete with an iris diaphragm and optical filter, enhances illumination control and image contrast, resulting in bright, detailed microscopic observations.
Smooth coaxial coarse and fine focusing controls allow quick and precise image adjustments without disturbing the specimen. Standard illumination is provided through a powerful 6V/20W halogen lamp compatible with both AC 110V and 220V power supplies. Optional LED or incandescent illumination configurations are available to suit different laboratory requirements.
Manufactured using durable laboratory-grade materials, this microscope delivers reliable long-term performance under continuous laboratory use. Micro Technologies supplies this microscope to universities, hospitals, pathology laboratories, pharmaceutical companies, research organizations, diagnostic centers, and industrial quality control laboratories seeking dependable microscopy solutions with professional-grade optical accuracy.
Features
- 45° inclined, 360° rotatable binocular viewing head
- Wide-field WF10X eyepieces
- 4X, 10X, 40X(S), and 100X(S) oil immersion objectives
- Double-layer mechanical stage (115 × 125 mm)
- N.A. 1.25 Abbe condenser with iris diaphragm and filter
- Precision coaxial coarse and fine focusing controls
- Bright 6V/20W halogen illumination
- Optional LED or incandescent lighting
- Durable laboratory-grade metal body
- Suitable for biological, clinical, and research applications
Benefits
- Provides comfortable binocular viewing for extended use
- Produces sharp, high-contrast microscopic images
- Supports advanced biological and clinical research
- Improves specimen handling through precision mechanical stage
- Reduces maintenance with durable construction
- Suitable for institutional and commercial laboratory use
- Delivers long-term value for research and educational facilities
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Professional Binocular Compound Microscope with Oil Immersion |
| Model No. | MTM-021 |
| Product Type | Compound Biological Microscope |
| Viewing Head | Binocular, 45° Inclined, 360° Rotatable |
| Eyepiece | WF10X |
| Objectives | 4X, 10X, 40X(S), 100X(S) Oil Immersion |
| Working Stage | Double Layer Mechanical Stage, 115 × 125 mm |
| Condenser | N.A. 1.25 Abbe Condenser with Iris Diaphragm and Filter |
| Focusing System | Coaxial Coarse & Fine Adjustment |
| Illumination | 6V/20W Halogen Lamp |
| Optional Illumination | LED / Incandescent |
| Power Supply | AC 110V / 220V |
| Body Material | Laboratory Grade Metal |
| Usage/Application | Biology, Pathology, Microbiology, Clinical & Research Laboratories |
| Compliance Standard | Manufactured as per Standard Laboratory Equipment Practices |
Available Variants
- Halogen Binocular Compound Microscope
- LED Binocular Laboratory Microscope
- Oil Immersion Binocular Microscope
- Research Binocular Microscope
- Educational Binocular Compound Microscope
SKU System
- MTM-021-HL
- MTM-021-LED
- MTM-021-OIL
- MTM-021-BIO
- MTM-021-LAB
FAQs
What magnification does this binocular microscope offer?
The microscope includes 4X, 10X, 40X(S), and 100X(S) oil immersion objectives, making it suitable for both routine laboratory work and advanced biological research.
Why choose a binocular microscope over a monocular model?
A binocular microscope offers improved viewing comfort, reduces eye strain during extended use, and provides a more natural observation experience for laboratory professionals.
Can this microscope be used for microbiology and pathology applications?
Yes. It is widely used in microbiology, pathology, clinical diagnostics, pharmaceutical laboratories, and research institutions for detailed specimen analysis.
Does it include a mechanical stage?
Yes. The double-layer mechanical stage enables smooth and accurate slide movement, allowing precise positioning of specimens during microscopic examination.
Are LED illumination options available?
Yes. The standard model features halogen illumination, while LED and incandescent lighting options are available to meet specific laboratory preferences.
Can institutions order this microscope in bulk?
Yes. We support bulk procurement for schools, universities, hospitals, research centers, distributors, OEM projects, and government organizations.
Why Choose Our Products
- Precision-engineered optical laboratory equipment
- Comprehensive quality inspection before delivery
- Rugged construction for continuous laboratory use
- Bulk supply capability for institutional buyers
- Professional technical assistance and responsive customer service
Call to Action
Upgrade your laboratory with reliable microscopy solutions from Micro Technologies. Contact us today for bulk orders, institutional purchases, OEM manufacturing, distributor partnerships, or a customized quotation tailored to your laboratory and research requirements.
