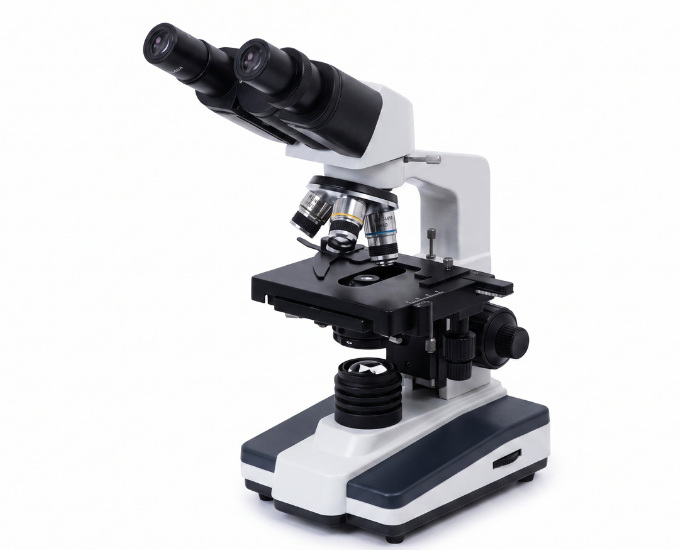

Professional Binocular Laboratory Microscope with LED Illumination
Product Specification Sheet
Professional Binocular Laboratory Microscope with LED Illumination
Model Number: MTM-036
The Professional Binocular Laboratory Microscope with LED Illumination from Micro Technologies is engineered for educational institutions, research laboratories, hospitals, and industrial laboratories. Featuring achromatic objectives, a binocular viewing head, precision coaxial focusing, and energy-efficient LED illumination, it delivers sharp, high-contrast images for biological observation and laboratory analysis.
Product Specification
The Professional Binocular Laboratory Microscope with LED Illumination is a reliable optical instrument designed for biological studies, laboratory diagnostics, educational training, and scientific research. Built with premium optical components and a durable laboratory-grade body, it offers exceptional image clarity, user comfort, and long-lasting performance.
The microscope is equipped with a binocular viewing head fitted with WF10X wide-field eyepieces, while WF16X eyepieces are available as an optional upgrade. Its 4X, 10X, and 40X (spring-loaded) achromatic objectives provide sharp, distortion-free images suitable for observing microorganisms, biological tissues, and prepared specimens.
A 90 × 90 mm plain stage with moving scale allows smooth and accurate positioning of microscope slides. The N.A. 0.65 condenser with disc diaphragm provides effective light control and improved image contrast for enhanced specimen visibility.
For accurate focusing, the microscope incorporates a coaxial coarse and fine focusing mechanism, ensuring smooth and precise image adjustment. Illumination is provided by a high-brightness LED lamp, delivering uniform, energy-efficient lighting with minimal heat generation. The microscope operates on AC 110V/220V input with a 6V DC output, making it suitable for laboratories worldwide.
Manufactured using laboratory-grade materials, this microscope is ideal for schools, colleges, universities, hospitals, research institutes, pharmaceutical laboratories, diagnostic centers, and industrial quality control laboratories. Micro Technologies supplies this microscope for institutional procurement, distributor networks, OEM manufacturing, and government laboratory projects.
Features
- Binocular viewing head
- WF10X wide-field eyepieces
- Optional WF16X eyepieces
- 4X, 10X, and 40X(S) achromatic objectives
- 90 × 90 mm plain stage with moving scale
- N.A. 0.65 condenser with disc diaphragm
- Coaxial coarse and fine focusing adjustment
- Energy-efficient LED illumination
- AC 110V/220V power input with 6V DC output
- Durable laboratory-grade construction
Benefits
- Sharp and distortion-free imaging with achromatic objectives
- Comfortable binocular viewing reduces eye strain
- Smooth slide movement for accurate specimen positioning
- Bright LED illumination enhances image clarity
- Precision focusing for detailed microscopic observation
- Durable construction ensures long operational life
- Suitable for educational, clinical, and research laboratories
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Professional Binocular Laboratory Microscope with LED Illumination |
| Model No. | MTM-036 |
| Product Type | Biological Laboratory Microscope |
| Viewing Head | Binocular |
| Eyepiece | WF10X (WF16X Optional) |
| Objectives | 4X, 10X, 40X(S) Achromatic |
| Stage | Plain Stage with Moving Scale, 90 × 90 mm |
| Condenser | N.A. 0.65 Condenser with Disc Diaphragm |
| Focusing System | Coaxial Coarse & Fine Focusing |
| Illumination | LED Lamp |
| Power Supply | AC Input 110V/220V, DC Output 6V |
| Body Material | Laboratory Grade Metal |
| Usage/Application | Biology Laboratories, Schools, Colleges, Universities, Clinical Laboratories & Research Institutes |
| Compliance Standard | Manufactured as per Standard Laboratory Equipment Practices |
Available Variants
- LED Binocular Biological Microscope
- Educational Binocular Microscope
- Laboratory Compound Microscope
- Research Binocular Microscope
- Clinical Laboratory Microscope
FAQs
What objective lenses are included?
The microscope includes 4X, 10X, and 40X(S) achromatic objective lenses for clear and accurate specimen observation.
Does it support higher eyepiece magnification?
Yes. The microscope comes with WF10X eyepieces, while WF16X eyepieces are available as an optional upgrade.
What type of illumination is used?
The microscope features a bright, energy-efficient LED illumination system for uniform lighting and long service life.
Is this microscope suitable for research laboratories?
Yes. It is ideal for biology laboratories, clinical laboratories, educational institutions, pharmaceutical laboratories, and research centers.
Does it have precise focusing?
Yes. It is equipped with a coaxial coarse and fine focusing mechanism for smooth and accurate image adjustment.
Can this microscope be purchased in bulk?
Yes. Micro Technologies supplies this microscope in bulk for educational institutions, laboratories, distributors, OEM partners, and government procurement projects.
Why Choose Our Products
- Premium laboratory-grade optical instruments
- High-quality achromatic optics for superior image clarity
- Durable construction for continuous professional use
- Competitive pricing for institutional procurement
- Reliable technical support and responsive after-sales service
Call to Action
Equip your laboratory with premium microscopy solutions from Micro Technologies. Contact us today for bulk orders, institutional procurement, OEM manufacturing, distributor partnerships, or a customized quotation for our professional binocular microscope range.
