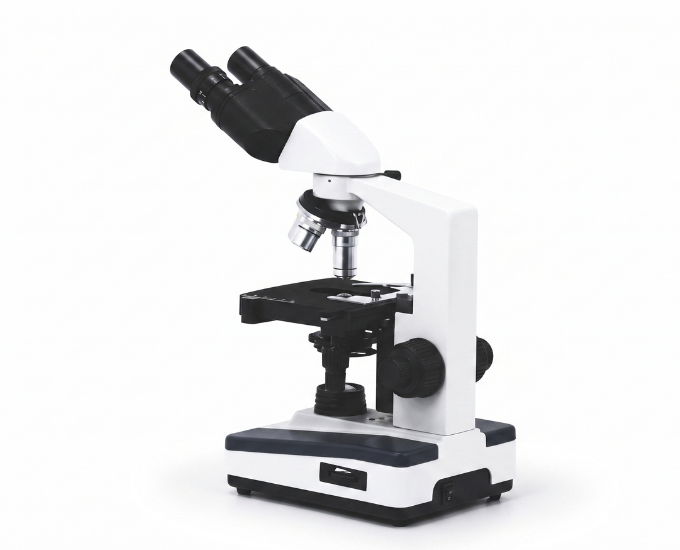

Professional Binocular Compound Microscope with 100X Oil Immersion
Product Specification Sheet
Professional Binocular Compound Microscope with 100X Oil Immersion
Model Number: MTM-033
The Professional Binocular Compound Microscope from Micro Technologies is designed for advanced biological, clinical, and research applications. Featuring a 30° inclined, 360° rotatable binocular viewing head, 100X oil immersion objective, precision Abbe condenser, and adjustable halogen illumination, it delivers exceptional image quality and user comfort. Its durable construction and precision optics make it an ideal choice for laboratories, hospitals, universities, pharmaceutical companies, and research institutions.
Product Specification
The Professional Binocular Compound Microscope with 100X Oil Immersion is engineered to provide high-precision microscopic analysis for biology, microbiology, pathology, clinical diagnostics, and research laboratories. Manufactured with premium optical components and a robust laboratory-grade frame, it offers outstanding image clarity, durability, and reliable performance for continuous professional use.
The microscope is equipped with a compensation-free binocular viewing head inclined at 30° and capable of 360° rotation, providing ergonomic and comfortable observation while reducing eye strain during prolonged laboratory work. The WF10X wide-field eyepieces, together with 4X, 10X, 40X(S), and 100X(S) oil immersion objectives, deliver sharp, high-resolution images for both routine and advanced microscopic examinations.
A 120 × 125 mm plain stage with moving scale enables accurate slide positioning and smooth specimen movement. The N.A. 1.25 Abbe condenser with an iris diaphragm and filter provides excellent illumination control, ensuring enhanced contrast and superior image quality.
The microscope features separate coarse and fine focusing mechanisms, allowing rapid specimen focusing followed by precise image adjustment. Standard illumination is provided through a 6V/20W adjustable halogen lamp compatible with AC 110V/220V power supplies. Optional LED or fluorescent illumination systems are available to accommodate different laboratory requirements while improving energy efficiency.
Built for demanding laboratory environments, this microscope is widely used in schools, colleges, universities, hospitals, pathology laboratories, pharmaceutical companies, diagnostic centers, and industrial quality control laboratories. Micro Technologies supplies this model for institutional procurement, OEM manufacturing, distributor networks, and government laboratory projects.
Features
- Compensation-free binocular head
- 30° inclined, 360° rotatable viewing head
- Wide-field WF10X eyepieces
- 4X, 10X, 40X(S), and 100X(S) oil immersion objectives
- 120 × 125 mm plain stage with moving scale
- N.A. 1.25 Abbe condenser with iris diaphragm and filter
- Separate coarse and fine focusing mechanisms
- Adjustable 6V/20W halogen illumination
- Optional LED and fluorescent illumination
- Rugged laboratory-grade construction
Benefits
- Comfortable binocular viewing minimizes eye fatigue
- High-resolution imaging with 100X oil immersion objective
- Accurate specimen positioning for precise analysis
- Adjustable illumination enhances image clarity
- Durable design for continuous laboratory operation
- Suitable for biological, clinical, and research applications
- Excellent value for institutional and bulk procurement
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Professional Binocular Compound Microscope with 100X Oil Immersion |
| Model No. | MTM-033 |
| Product Type | Compound Biological Microscope |
| Viewing Head | Compensation-Free Binocular, 30° Inclined, 360° Rotatable |
| Eyepiece | WF10X |
| Objectives | 4X, 10X, 40X(S), 100X(S) Oil Immersion |
| Stage | Plain Stage with Moving Scale, 120 × 125 mm |
| Condenser | N.A. 1.25 Abbe Condenser with Iris Diaphragm and Filter |
| Focusing System | Separate Coarse & Fine Focusing Mechanisms |
| Standard Illumination | 6V/20W Adjustable Halogen Lamp |
| Optional Illumination | LED or Fluorescent |
| Power Supply | AC 110V / 220V |
| Body Material | Laboratory Grade Metal |
| Usage/Application | Biology, Microbiology, Pathology, Clinical Laboratories, Research Institutes & Educational Institutions |
| Compliance Standard | Manufactured as per Standard Laboratory Equipment Practices |
Available Variants
- Halogen Binocular Compound Microscope
- LED Binocular Laboratory Microscope
- Oil Immersion Biological Microscope
- Clinical Laboratory Microscope
- Research Binocular Microscope
FAQs
Does this microscope include a 100X oil immersion objective?
Yes. It includes 4X, 10X, 40X(S), and 100X(S) oil immersion objectives, making it suitable for advanced biological, microbiological, and clinical analysis.
What type of binocular head is provided?
The microscope features a compensation-free binocular head with 30° inclination and 360° rotation for comfortable and ergonomic viewing.
What illumination system is included?
The standard model comes with a 6V/20W adjustable halogen illumination system, while LED and fluorescent illumination are available as optional configurations.
Is this microscope suitable for pathology and research laboratories?
Yes. It is widely used in pathology, microbiology, clinical diagnostics, pharmaceutical laboratories, universities, and research institutes.
Does the microscope provide precise focusing?
Yes. It incorporates separate coarse and fine focusing mechanisms for smooth and highly accurate focusing.
Can this microscope be ordered in bulk?
Yes. Micro Technologies supplies this microscope in bulk for educational institutions, hospitals, research laboratories, distributors, OEM partners, and government organizations.
Why Choose Our Products
- Precision-engineered laboratory optical instruments
- Premium optical components for superior image quality
- Rugged construction for long-term laboratory use
- Competitive pricing for institutional procurement
- Reliable technical assistance and responsive after-sales support
Call to Action
Upgrade your laboratory with premium microscopy solutions from Micro Technologies. Contact us today for bulk orders, institutional procurement, OEM manufacturing, distributor partnerships, or a customized quotation for our professional binocular microscope range.
