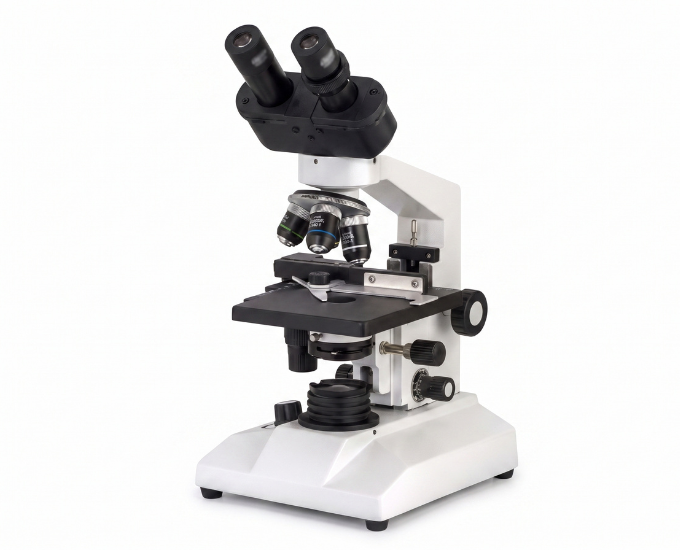

Infinity Optical Binocular Research Microscope
Product Specification Sheet
Infinity Optical Binocular Research Microscope
Model Number: MTM-041
The Infinity Optical Binocular Research Microscope from Micro Technologies is a premium laboratory microscope designed for advanced biological research, pathology, microbiology, and clinical diagnostics. Featuring a Universal Infinity Optical System (UIS), infinity plan-achromatic objectives, Köhler illumination, precision focusing, and a high-performance binocular viewing head, it delivers exceptional image clarity and accurate specimen analysis. It is an ideal choice for research institutes, hospitals, universities, pharmaceutical laboratories, and industrial quality control laboratories.
Product Specification
The Infinity Optical Binocular Research Microscope is a high-end compound microscope engineered for professional laboratory environments where precision, image quality, and long-term reliability are essential. Built with an advanced Universal Infinity Optical System (UIS), it produces superior image resolution, enhanced contrast, and excellent color fidelity, making it suitable for demanding scientific and clinical applications.
The microscope is equipped with a 30° inclined binocular viewing head featuring an adjustable interpupillary distance of 48–75 mm, ensuring ergonomic and comfortable observation during extended laboratory sessions. The WF10X anti-mould eyepieces provide a wide field of view while protecting optical components from fungal growth in humid environments.
Its infinity plan-achromatic objective lenses (4X, 10X, 40X, and 100X oil immersion) deliver outstanding flat-field imaging with reduced optical distortion, enabling highly accurate examination of biological tissues, microorganisms, blood samples, and laboratory specimens.
The 140 × 140 mm mechanical stage offers a 75 × 45 mm travel range, allowing smooth and precise specimen positioning. A high-performance N.A. 1.25 Abbe condenser (oil immersion compatible) ensures maximum light transmission and enhanced image contrast.
For precise image control, the microscope features coaxial coarse and fine focusing adjustments with a 0.001 mm fine focus graduation per rotation, enabling exceptional focusing accuracy at high magnifications.
The advanced Epi-Köhler illumination system utilizes a 6V/20W halogen lamp with a universal 100–240V, 50/60Hz power supply, providing bright, uniform, and glare-free illumination suitable for professional laboratory applications.
Manufactured with premium optical components and a heavy-duty metal frame, the microscope delivers outstanding durability and performance. Micro Technologies supplies this professional binocular microscope to hospitals, universities, research institutes, pharmaceutical companies, biotechnology laboratories, and industrial testing facilities worldwide.
Features
- Universal Infinity Optical System (UIS)
- 30° inclined binocular viewing head
- Adjustable interpupillary distance (48–75 mm)
- WF10X anti-mould eyepieces
- Infinity Plan-Achromatic objectives (4X, 10X, 40X, 100X Oil)
- Quadruple revolving nosepiece
- 140 × 140 mm mechanical stage
- Stage travel: 75 × 45 mm
- N.A. 1.25 Abbe condenser
- Epi-Köhler 6V/20W halogen illumination
- Universal power supply (100–240V, 50/60Hz)
- Coaxial coarse and fine focusing
- Fine focusing precision: 0.001 mm per rotation
- Heavy-duty laboratory-grade construction
Benefits
- Superior optical performance with infinity optics
- Flat-field imaging for improved specimen clarity
- Comfortable binocular viewing during extended use
- Precision focusing for advanced research applications
- Uniform Köhler illumination improves image quality
- Durable construction for continuous laboratory operation
- Suitable for research, diagnostics, education, and industrial analysis
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Infinity Optical Binocular Research Microscope |
| Model Number | MTM-041 |
| Product Type | Professional Compound Binocular Microscope |
| Optical System | Universal Infinity Optical System (UIS) |
| Viewing Head | Binocular Head, 30° Inclined |
| Interpupillary Distance | 48–75 mm |
| Eyepiece | WF10X (Anti-Mould) |
| Objectives | Infinity Plan-Achromatic 4X, 10X, 40X, 100X (Oil) |
| Nosepiece | Quadruple Revolving Nosepiece |
| Stage Size | 140 × 140 mm |
| Stage Movement | 75 × 45 mm |
| Condenser | N.A. 1.25 Abbe Condenser |
| Focusing | Coaxial Coarse & Fine Adjustment |
| Fine Focus Precision | 0.001 mm per Rotation |
| Illumination | Epi-Köhler 6V/20W Halogen Lamp |
| Power Supply | 100–240V, 50/60Hz |
| Applications | Pathology, Microbiology, Biotechnology, Clinical Diagnostics, Research |
| Compliance | Manufactured under ISO Quality Management Standards |
Available Variants
-
Infinity Binocular Microscope
- Research Grade Binocular Microscope
- Clinical Binocular Microscope
- Biological Laboratory Microscope
- Professional UIS Microscope
FAQs
What makes the UIS optical system better?
The Universal Infinity Optical System (UIS) provides higher image resolution, improved contrast, reduced optical distortion, and better compatibility with advanced accessories compared to standard optical systems.
Is this microscope suitable for research laboratories?
Yes. It is specifically designed for advanced research, clinical diagnostics, biotechnology, microbiology, pathology, and pharmaceutical laboratories.
What type of objectives are included?
The microscope includes Infinity Plan-Achromatic objectives (4X, 10X, 40X, and 100X Oil Immersion) for superior flat-field image quality.
What type of illumination does it use?
It features an Epi-Köhler 6V/20W Halogen illumination system with a universal 100–240V power supply for bright, even lighting.
Is the interpupillary distance adjustable?
Yes. The binocular head offers an adjustable 48–75 mm interpupillary distance for comfortable viewing.
Do you supply this microscope in bulk?
Yes. Micro Technologies manufactures and supplies binocular microscopes in bulk to universities, hospitals, research institutes, laboratories, distributors, and government organizations.
Why Choose Our Products
-
Premium UIS infinity optical technology
- High-quality Plan-Achromatic objective lenses
- Precision engineering for professional laboratories
- Strict quality inspection before dispatch
- Durable construction with long service life
- Competitive pricing and OEM manufacturing support
- Trusted manufacturer of laboratory, medical, and scientific equipment
Call to Action
Upgrade your laboratory with the Infinity Optical Binocular Research Microscope (MTM-018) from Micro Technologies. Designed for research institutes, hospitals, pharmaceutical companies, universities, and industrial laboratories, this microscope delivers exceptional optical performance, precision, and reliability. Contact us today for bulk pricing, OEM manufacturing, distributor partnerships, or a customized quotation.
