Binocular Polarising Microscope (MT-271 Series)
Product Specification Sheet

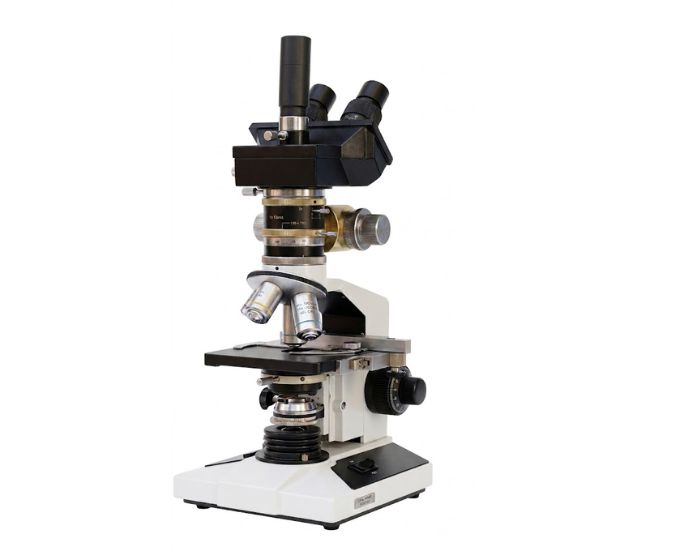

Binocular Polarising Microscope (MT-271 Series)
Model Number: MTMM-12
The Binocular Polarising Microscope (MT-271 Series) is designed for detailed examination of transparent and anisotropic materials under polarized light. Manufactured by Micro Technologies, it combines strain-free plan achromatic optics, a rotatable mechanical stage, polarizer, analyzer, retardation plates, and controlled illumination for geological, mineralogical, material science, and industrial research applications.
Product Specification
The Binocular Polarising Microscope (MT-271 Series) is a precision optical instrument developed for observing the structural, optical, and crystalline characteristics of materials under transmitted polarized light. Manufactured by Micro Technologies, it is suitable for geology laboratories, mineralogy departments, material science facilities, petrographic analysis, industrial inspection, research institutes, and advanced microscopy applications.
Its built-in illumination system and high-quality coated optics provide strong image contrast and clear specimen visibility. The optical system is designed with strain-free components to minimize unwanted optical interference while examining crystals, minerals, fibers, polymers, and other birefringent materials.
The microscope incorporates a polarizing attachment with an analyzer mounted on the stand for smooth insertion and removal from the optical path. A standard compensator slot accommodates a sensitive tint plate and a quarter-wave retardation plate, supporting advanced optical analysis and identification of material properties.
A rotatable polarizer provides full 360° adjustment, allowing the operator to control the direction of polarized light according to the specimen and examination method. The inclined observation head offers comfortable viewing, while the binocular body rotates through 360° for convenient use from different working positions.
The quadruple revolving nosepiece is mounted on precision ball bearings for smooth objective changes and accurate optical alignment. Anti-fungal parafocal achromatic objectives provide dependable clarity across multiple magnifications, while the supplied wide-field eyepieces include cross-line and graticule options for measurement and alignment work.
The mechanical stage incorporates a circular rotating plate with continuous 360° rotation, enabling accurate angular examination of specimens. The Abbe condenser with N.A. 1.25, rack-and-pinion movement, iris diaphragm, and swing-out filter holder provides controlled illumination and improved contrast.
A separated coarse and fine focusing mechanism with a four-stage gear reduction system supports smooth, precise adjustment. Illumination is provided through a base-mounted light source with variable intensity control, an ON/OFF switch, and a plano-concave reflector for daylight observation when required.
Each MT-271 Series Polarising Microscope from Micro Technologies is inspected for optical alignment, mechanical accuracy, illumination performance, and dependable operation before supply.
Features
- Standard polarising microscope configuration
- Strain-free plan achromatic optical system
- Inclined observation head
- Rotatable binocular body through 360°
- Precision ball-bearing quadruple nosepiece
- Rotatable polarizer with 360° adjustment
- Analyzer with swing-in and swing-out arrangement
- Sensitive tint retardation plate
- Quarter-wave retardation plate
- Rotating mechanical stage
- Continuous 360° stage rotation
- Abbe condenser with N.A. 1.25
- Rack-and-pinion condenser adjustment
- Iris diaphragm with swing-out filter holder
- Anti-fungal achromatic objectives
- Wide-field eyepieces with cross-line and graticule
- Separate coarse and fine focusing controls
- Four-stage gear reduction focusing system
- Variable-intensity illumination
- Daylight reflector arrangement
Benefits
- Enables detailed examination of birefringent materials
- Provides clear, high-contrast polarized-light images
- Supports accurate mineral and crystal identification
- Allows controlled angular specimen observation
- Reduces unwanted optical strain and distortion
- Offers comfortable viewing during extended analysis
- Provides precise focusing at higher magnifications
- Supports both illuminated and daylight observation
- Suitable for advanced laboratory and industrial analysis
- Delivers reliable long-term optical performance
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Binocular Polarising Microscope |
| Model Series | MT-271 |
| Microscope Type | Transmitted-Light Polarising Microscope |
| Observation Head | Inclined Head |
| Body Rotation | 360° Rotatable Binocular Body |
| Nosepiece | Ball-Bearing Quadruple Revolving Nosepiece |
| Polarizer | Rotatable Through 360° |
| Analyzer | Swing-In and Swing-Out Type |
| Retardation Plates | Sensitive Tint Plate and Quarter-Wave Plate |
| Mechanical Stage | Circular Rotating Stage |
| Stage Rotation | Continuous 360° |
| Condenser | Abbe Condenser, N.A. 1.25 |
| Condenser Movement | Rack-and-Pinion, Focusable |
| Diaphragm | Iris Diaphragm |
| Filter Holder | Built-In Swing-Out Type |
| Objectives | Parafocal Achromatic Anti-Fungal Objectives |
| Objective Magnifications | 4x/5x, 10x, 40x/45x Spring-Loaded |
| Eyepieces | High-Quality Huygens 5x and WF 10x |
| Eyepiece Accessories | Cross-Line and Graticule |
| Focusing | Separate Coarse and Fine Controls |
| Fine-Focus Mechanism | Four-Stage Gear Reduction |
| Illumination | Base-Mounted Halogen Light Source |
| Illumination Control | Variable Intensity with ON/OFF Switch |
| Daylight Use | Plano-Concave Reflector Provided |
Available Models
| Model | Description |
|---|---|
| MT-271(A) | Binocular Polarising Microscope with Standard Optical Configuration |
| MT-271(B) | Polarising Microscope with Enhanced Optical Accessories |
| MT-271(C) | Polarising Microscope with Digital Imaging Compatibility |
Optional Accessories
- Digital microscope camera
- USB imaging camera
- Trinocular observation head
- Additional wide-field eyepieces
- Cross-line measuring eyepiece
- Eyepiece graticule
- Additional strain-free objectives
- Polarizing filters
- Sensitive tint plate
- Quarter-wave plate
- Mechanical stage accessories
- Calibration slide
- Dust cover
- Carrying case
SKU System
- MT-271-A
- MT-271-B
- MT-271-C
FAQs
What is the MT-271 Polarising Microscope used for?
It is used to examine minerals, crystals, fibers, polymers, geological samples, and other materials that display optical characteristics under polarized light.
Does the microscope include both a polarizer and analyzer?
Yes. It includes a fully rotatable polarizer and an analyzer designed for convenient insertion into or removal from the optical path.
Can the stage rotate completely?
Yes. The mechanical stage includes a circular rotating plate capable of continuous 360° rotation for angular specimen analysis.
Which retardation plates are supported?
The microscope is designed to accommodate a sensitive tint plate and a quarter-wave retardation plate for advanced polarized-light studies.
What objectives are supplied with the microscope?
It is equipped with anti-fungal parafocal achromatic objectives in 4x/5x, 10x, and 40x/45x spring-loaded configurations.
What type of condenser is provided?
The instrument includes an Abbe condenser with N.A. 1.25, rack-and-pinion focusing, an iris diaphragm, and a swing-out filter holder.
Can the microscope be used without electric illumination?
Yes. A plano-concave reflector is provided for daylight observation where an external light source is preferred.
Is a digital camera available for the MT-271 Series?
Yes. Compatible digital and USB microscope cameras may be supplied as optional accessories for image capture, documentation, and computer-based analysis.
