Advanced Binocular Biological Microscope with 100X Oil Objective
Product Specification Sheet

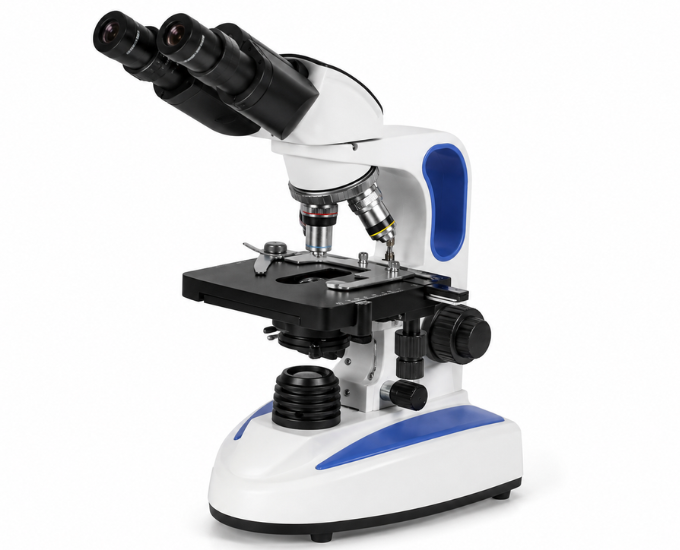

Advanced Binocular Biological Microscope with 100X Oil Objective
Model Number: MTM-038
The Advanced Binocular Biological Microscope from Micro Technologies is a premium laboratory instrument designed for biological research, microbiology, pathology, clinical diagnostics, and higher education. Featuring a 45° inclined binocular head, achromatic oil immersion objectives, precision mechanical stage, and LED illumination, it delivers exceptional image clarity, ergonomic operation, and dependable performance for professional laboratory environments.
Product Specification
The Advanced Binocular Biological Microscope with 100X Oil Objective is engineered for high-precision biological observation, laboratory diagnostics, microbiology, pathology, pharmaceutical research, and academic teaching. Built with high-quality optical components and a rugged laboratory-grade frame, this microscope delivers outstanding image resolution, durability, and user comfort for continuous laboratory operation.
The microscope features a 45° inclined binocular viewing head equipped with WF10X wide-field eyepieces, while WF16X eyepieces are available as an optional upgrade for enhanced magnification. Its binocular configuration minimizes eye fatigue and provides comfortable viewing during prolonged laboratory work.
The optical system incorporates achromatic objective lenses (4X, 10X, 40X(S), and 100X(S) Oil Immersion) that produce bright, distortion-free, and high-contrast images. The 100X oil immersion objective is ideal for microbiology, bacteriology, pathology, hematology, and advanced biological research where maximum image resolution is essential.
A 115 × 125 mm double-layer mechanical stage provides precise X-Y specimen movement, allowing accurate slide positioning during microscopic examination. The Abbe N.A. 1.25 condenser, complete with an iris diaphragm and filter, optimizes light distribution and image contrast, resulting in superior specimen visibility.
The precision coaxial coarse and fine focusing mechanism offers a 30 mm focusing range with an ultra-fine 0.002 mm focusing interval, ensuring exceptionally accurate focusing even at high magnifications.
The microscope is fitted with a 1W LED illumination system that provides bright, uniform, and energy-efficient lighting while generating minimal heat. For specialized laboratory applications, 3W LED illumination and 6V/20W halogen illumination are also available as optional configurations.
Manufactured using premium laboratory-grade materials, this microscope is suitable for universities, colleges, hospitals, pathology laboratories, microbiology laboratories, pharmaceutical companies, biotechnology research centers, diagnostic laboratories, industrial quality control departments, and government research organizations. Micro Technologies supplies this microscope for institutional procurement, OEM manufacturing, distributor partnerships, export orders, and laboratory modernization projects.
Features
- 45° inclined binocular viewing head
- Ergonomic binocular design reduces eye fatigue
- WF10X wide-field eyepieces
- Optional WF16X eyepieces
- 4X, 10X, 40X(S), and 100X(S) oil immersion achromatic objectives
- Double-layer mechanical stage (115 × 125 mm)
- Smooth X-Y specimen movement
- Abbe N.A. 1.25 condenser with iris diaphragm and filter
- Coaxial coarse and fine focusing mechanism
- 30 mm focusing range
- 0.002 mm fine focusing interval
- 1W LED illumination
- Optional 3W LED illumination
- Optional 6V/20W halogen illumination
- Durable powder-coated laboratory-grade metal body
- Low-maintenance optical design
Benefits
- Produces crystal-clear, high-resolution microscopic images
- Comfortable binocular viewing for extended laboratory sessions
- Oil immersion objective enables advanced microbiological studies
- Mechanical stage allows precise specimen positioning
- Fine focusing provides accurate image adjustment
- Energy-efficient LED lighting minimizes power consumption
- Optional illumination systems suit diverse laboratory applications
- Durable construction ensures long service life
- Suitable for educational, clinical, pharmaceutical, and research laboratories
- Excellent choice for institutional and government procurement
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Advanced Binocular Biological Microscope with 100X Oil Objective |
| Model No. | MTM-038 |
| Product Type | Biological Compound Microscope |
| Viewing Head | Binocular Head, 45° Inclined |
| Eyepiece | WF10X |
| Optional Eyepiece | WF16X |
| Objectives | Achromatic 4X, 10X, 40X(S), 100X(S) Oil |
| Stage Type | Double Layer Mechanical Stage |
| Stage Size | 115 × 125 mm |
| Condenser | Abbe Condenser N.A. 1.25 with Iris Diaphragm & Filter |
| Focusing System | Coaxial Coarse & Fine Adjustment |
| Focusing Range | 30 mm |
| Fine Focus Interval | 0.002 mm |
| Standard Illumination | 1W LED Lamp |
| Optional Illumination | 3W LED Lamp, 6V/20W Halogen Lamp |
| Power Supply | AC 110V / 220V |
| Body Material | Laboratory Grade Metal |
| Application | Biology, Microbiology, Pathology, Clinical Diagnosis, Pharmaceutical Research, Educational Laboratories |
| Compliance Standard | Manufactured as per Standard Laboratory Equipment Practices |
Available Variants
-
LED Binocular Biological Microscope
- Oil Immersion Binocular Microscope
- Laboratory Compound Microscope
- Clinical Laboratory Microscope
- Research Binocular Microscope
- Educational Binocular Microscope
FAQs
What objectives are supplied with this microscope?
The microscope includes 4X, 10X, 40X(S), and 100X(S) oil immersion achromatic objective lenses for low- and high-magnification biological observations.
Does this microscope include a mechanical stage?
Yes. It features a 115 × 125 mm double-layer mechanical stage with smooth X-Y controls for precise specimen positioning.
What type of condenser is used?
The microscope is equipped with an Abbe N.A. 1.25 condenser with an iris diaphragm and filter for enhanced illumination and image contrast.
What illumination options are available?
The standard model includes a 1W LED illumination system. Optional 3W LED and 6V/20W halogen illumination configurations are also available.
Is this microscope suitable for pathology and microbiology laboratories?
Yes. It is widely used in microbiology, pathology, clinical diagnostics, biotechnology research, pharmaceutical laboratories, universities, and hospitals.
Can it be supplied for institutional and government projects?
Yes. Micro Technologies supplies this microscope in bulk for educational institutions, hospitals, laboratories, OEM partners, distributors, exporters, and government procurement projects.
Why Choose Our Products
-
Premium laboratory-grade optical instruments
- High-precision achromatic optics
- Superior image clarity and accurate color reproduction
- Durable construction for continuous professional use
- Competitive pricing for institutional buyers
- OEM and private labeling support
- Reliable after-sales service and technical assistance
- Bulk supply and export capability
Call to Action
Upgrade your laboratory with professional microscopy solutions from Micro Technologies. Contact us today for bulk orders, OEM manufacturing, institutional procurement, distributor partnerships, export inquiries, or a customized quotation for our premium binocular microscope range.
