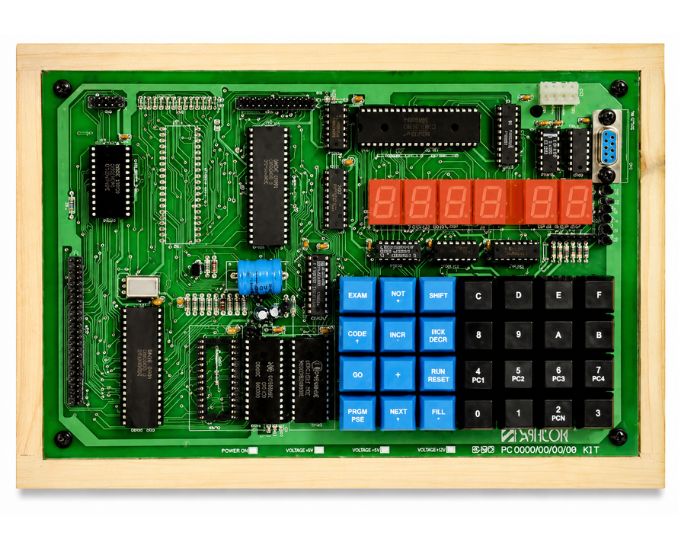

8085 Microprocessor Trainer (LED)

The 8085 Microprocessor Trainer (LED) is a comprehensive laboratory development system designed to provide practical knowledge of 8085 microprocessor architecture, programming, and interfacing. Manufactured by Micro Technologies, the trainer enables students to understand the fundamentals of microprocessor operation through hands-on experiments and application development.

The trainer is based on the 8085 microprocessor operating at 6.144 MHz and incorporates a powerful monitor program stored in EPROM for program development and debugging. It is suitable for engineering colleges, universities, polytechnic institutes, technical training centres, and electronics laboratories.

The system includes 32 KB EPROM with a monitor program and 8 KB RAM backed by a battery to preserve user programs. Memory can be expanded up to 56 KB using the onboard memory expansion facility.

A three-channel programmable timer/counter (8253) is provided for timing and counting applications, while 24 programmable input/output lines are available through the 8255 Programmable Peripheral Interface. An onboard RS232 interface supports serial communication experiments.

The trainer provides multiple operating modes including Hex Keypad Mode, Serial Mode, and Monitor Mode. User interaction is simplified through a 24-key hexadecimal keyboard and six-digit seven-segment LED display driven by the 8279 Keyboard/Display Controller.

The monitor software supports advanced debugging commands including single-step execution, breakpoints, full command execution, memory examination, register examination, uploading and downloading programs to and from a PC, making the trainer ideal for practical learning.

The front panel is manufactured using a high-quality glass epoxy SMOBC PCB with clearly printed circuit layouts and symbols. The trainer features a fully documented operating manual, built-in DC power supply, and compact ABS enclosure for reliable long-term laboratory use.

Scope of Learning

• Study of 8085 Microprocessor
• Microprocessor Programming
• Memory Organization
• Timer/Counter Applications
• Digital Input and Output Interfacing
• Keyboard and Display Interfacing
• Serial Communication
• Program Development and Debugging
• Embedded Hardware Interfacing
• Microprocessor System Design

Features

• 8085 microprocessor operating at 6.144 MHz
• 32 KB EPROM with monitor program
• 8 KB battery-backed RAM
• Memory expandable up to 56 KB
• Three-channel programmable timer/counter (8253)
• 24 programmable I/O lines using 8255
• RS232 serial communication interface
• 24-key hexadecimal keyboard
• Six-digit seven-segment LED display
• 8279 keyboard/display controller
• Single-step execution
• Breakpoint facility
• Memory and register examination
• Program upload/download facility
• Built-in DC power supply
• High-quality glass epoxy PCB
• Compact ABS enclosure

Benefits

• Simplifies microprocessor programming
• Supports practical hardware interfacing
• Excellent learning platform for beginners
• Easy program debugging
• Reliable laboratory performance
• Memory expansion capability
• Supports serial communication experiments
• Ideal for engineering education
• Compact all-in-one design
• Low maintenance
• Long operational life
• Cost-effective training solution

Technical Specifications

Items Supplied

• 8085 Microprocessor Trainer (LED)
• Operating Manual
• Built-In DC Power Supply

Optional Accessories

• None

Applications

• Microprocessor Laboratories
• Electronics Engineering Colleges
• Universities
• Polytechnic Institutes
• Technical Training Centres
• Industrial Training Institutes
• Embedded System Education
• Digital Electronics Laboratories
• Student Projects
• Research Laboratories
• Hardware Interfacing Experiments
• Computer Engineering Education

SKU System

MT-8085LED-001

FAQs

What is the 8085 Microprocessor Trainer used for?

It is used for learning 8085 microprocessor architecture, programming, interfacing, memory management, and hardware development.

How much memory is provided?

The trainer includes 32 KB EPROM with a monitor program and 8 KB battery-backed RAM, expandable up to 56 KB.

Which communication interface is available?

The trainer provides an onboard RS232 serial communication interface.

What input and display devices are included?

The trainer includes:

• 24-Key Hexadecimal Keyboard
• Six-Digit Seven-Segment LED Display
• 8279 Keyboard/Display Controller

Does the trainer support debugging?

Yes. It supports:

• Single-Step Execution
• Breakpoints
• Memory Examination
• Register Examination
• Program Upload/Download

Is the trainer suitable for engineering laboratories?

Yes. It is widely used in engineering colleges, universities, polytechnic institutes, technical training centres, and research laboratories.

Can the 8085 Microprocessor Trainer be supplied in bulk?

Yes. Micro Technologies supplies 8085 Microprocessor Trainers to educational institutions, government organisations, research laboratories, OEM projects, distributors, and bulk procurement.
