Wire Testing Clamps
Product Specification Sheet

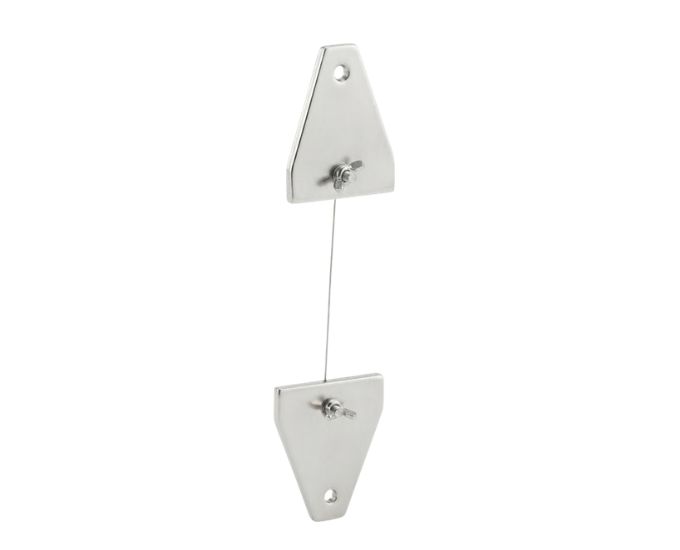

Wire Testing Clamps
Model Number: MTM-122
Wire Testing Clamps are mechanical laboratory grips used for investigating the tensile and breaking strength of ductile wires, threads, fishing lines, copper wire, steel wire, and similar specimens. Micro Technologies supplies the clamps with a simple washer-based gripping arrangement that holds the test specimen securely while reducing unwanted slipping during loading. The wire is routed through dedicated holes in the clamp and tightened using the nut-and-washer mechanism. One clamp is fixed to a suitable laboratory support while the lower clamp carries slotted masses to progressively increase tensile load. With a maximum hanging load of approximately 15 kg, these reusable clamps are suitable for material testing laboratories, physics laboratories, research facilities, universities, colleges, and institutional procurement.
Product Specification
The Wire Testing Clamps are practical mechanical grips used to hold thin wire and thread specimens securely during tensile loading and breaking-strength investigations. They provide a straightforward clamping arrangement for materials such as copper wire, steel wire, sewing thread, fishing line, and other suitable ductile specimens. The configuration allows progressively increasing loads to be applied while minimizing unwanted specimen movement at the gripping points.
The test material is positioned between washers and secured using a nut-based fastening mechanism. The wire is then routed through the holes provided in the clamps, creating a firm attachment suitable for suspended-load testing. This gripping method is particularly useful with thin specimens that can be difficult to secure using conventional flat laboratory clamps.
Micro Technologies supplies Wire Testing Clamps for comparative strength investigations and routine material testing applications. In a typical setup, one clamp is attached securely to a laboratory support while the second clamp hangs below the specimen. Slotted weights are progressively added to the lower clamp until the required loading condition or specimen failure point is reached.
The arrangement can be used to compare the breaking strength of different wire materials, diameters, threads, or fishing lines under similar test conditions. A maximum hanging load of approximately 15 kg provides a useful working range for suitable laboratory investigations, although the complete support arrangement must always be capable of safely carrying the applied load.
Robust mechanical construction, convenient specimen mounting, reusable components, and minimal maintenance requirements make the Wire Testing Clamps a practical addition to laboratories conducting tensile and comparative material strength experiments. They can be supplied for individual requirements, replacement needs, laboratory projects, and institutional bulk procurement.
Features
- Simple mechanical clamping system for thin specimens
- Suitable for ductile wire, thread, and fishing line
- Nut-and-washer arrangement provides secure gripping
- Dedicated holes help route and retain test specimens
- Helps minimize slipping during tensile loading
- Suitable for copper and steel wire investigations
- Compatible with slotted-weight loading arrangements
- Maximum hanging load of approximately 15 kg
- Reusable construction for repeated laboratory testing
- Straightforward operation with minimal maintenance
Benefits
- Provides secure gripping of thin wire specimens
- Supports comparative breaking and tensile strength tests
- Reduces specimen slipping during progressive loading
- Simple fastening arrangement allows convenient specimen replacement
- Suitable for testing several types of wire and thread materials
- Reusable construction helps reduce recurring laboratory costs
- Offers practical value for institutional and bulk procurement
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Wire Testing Clamps |
| Internal Model No. | MT-WTC-01 |
| Product Type | Wire Tensile Testing Clamps |
| Construction | Mechanical clamp assembly |
| Clamping Method | Nut and washer fastening |
| Specimen Routing | Through clamp holes |
| Suitable Materials | Copper wire, steel wire, thread, fishing line and similar specimens |
| Loading Method | Suspended slotted weights |
| Maximum Hanging Load | Approx. 15 kg |
| Supply Configuration | Pair of clamps |
| Accuracy / Tolerance | Dependent on test specimen and loading arrangement |
| Calibration Standard | Not applicable to clamps |
| Stopper Type | Not applicable |
| Usage / Application | Tensile, breaking strength and comparative wire testing |
| Compliance Standard | Laboratory-grade mechanical manufacturing quality |
Available Variants
- Standard Wire Testing Clamp Pair
- Heavy-Duty Wire Testing Clamps
- Wire Testing Clamps for Fine Wire
- Wire Testing Clamps with Loading Attachment
- Custom clamp configuration for bulk requirements
SKU System
- MT-WTC-STD – Standard Wire Testing Clamp Pair
- MT-WTC-HD – Heavy-Duty Clamp Pair
- MT-WTC-FW – Fine Wire Testing Configuration
- MT-WTC-LA – Clamp Set with Loading Attachment
- MT-WTC-CUS – Customized Clamp Set
FAQs
What are Wire Testing Clamps used for?
Wire Testing Clamps are used to hold thin specimens securely while tensile loads are applied. They support investigations involving breaking strength and comparative tensile behaviour of different wires and threads.
Which materials can be tested with these clamps?
The clamps can be used with suitable copper wire, steel wire, sewing thread, fishing line, and other ductile specimens. The selected specimen should be compatible with the clamp dimensions and intended loading range.
How is the wire secured inside the clamps?
The specimen is held using a nut-and-washer arrangement and routed through the holes provided in the clamp. Correct tightening helps prevent unwanted slipping while tensile load is applied.
What is the maximum hanging load?
The maximum hanging load is approximately 15 kg under a suitable test arrangement. The support stand, specimen, attachments, and other components must also be appropriate for the applied load.
Are slotted weights supplied with the clamps?
The standard clamp arrangement may be supplied without weights unless specifically ordered as a complete configuration. Compatible slotted masses can be selected according to the required test range.
Can these clamps be used for breaking strength tests?
Yes. Loads can be progressively added to the lower clamp until the specimen reaches the required condition or breaks. This allows the relative breaking strength of different specimens to be investigated.
Do Wire Testing Clamps require calibration?
The clamps themselves do not normally require calibration because they function as mechanical specimen holders. Any weights or force-measuring instruments used for quantitative testing should be appropriately verified.
How can specimen slipping be reduced?
The wire should be correctly routed through the clamp holes and secured firmly between the washers. Appropriate tightening is important, but excessive force that could damage the specimen at the gripping point should be avoided.
What maintenance is required?
Keep the washers, nuts, holes, and gripping surfaces clean. Periodically inspect the clamps for wear, deformation, damaged threads, loose fasteners, or other conditions that could affect secure specimen holding.
Can Wire Testing Clamps be ordered in bulk?
Yes. Bulk quantities can be supplied for material testing laboratories, universities, colleges, research facilities, scientific equipment distributors, and institutional procurement projects.
Can the clamps be customized for different wire sizes?
Custom gripping dimensions or fastening arrangements may be considered depending on wire diameter, testing requirements, quantity, and manufacturing feasibility.
How are the clamps packed for transportation?
Clamp pairs and smaller fastening components are securely packed to prevent loss and physical damage during transportation. Bulk and export-oriented packaging can also be arranged according to procurement requirements.
Why Choose Our Products
- Secure gripping arrangement suitable for thin wire specimens
- Quality-checked nuts, washers, holes, and mechanical components
- Robust reusable construction for repeated testing applications
- Practical low-maintenance configuration for long-term laboratory value
- Bulk supply capability for laboratories, institutions, and distributors
Call to Action
Looking for Wire Testing Clamps for tensile strength, breaking load, or comparative material testing? Contact Micro Technologies for competitive quotations, bulk orders, institutional procurement, distributor inquiries, and customized clamp requirements. Share your required quantity and testing application to receive suitable pricing and delivery details.
