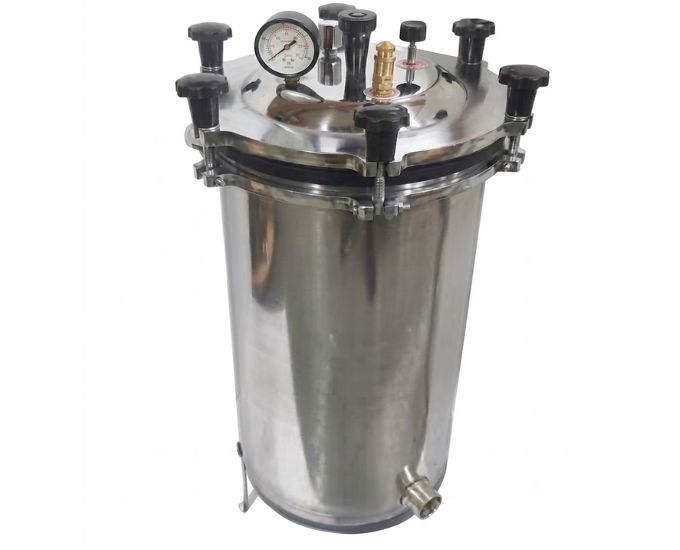

Vertical Steam Autoclave 12" × 22" (Single Wall) (MT-404)
Product Specification Sheet
Vertical Steam Autoclave 12" × 22" (Single Wall) (MT-404)
Model Number: MTAC-10
The Vertical Steam Autoclave 12" × 22" (Single Wall) (MT-404) is a durable laboratory sterilizer designed for efficient steam sterilization of laboratory instruments, glassware, culture media, surgical tools, and microbiological equipment. Manufactured by Micro Technologies, it features a stainless steel body, 40-liter capacity, precision pressure control, and dependable safety mechanisms for routine laboratory and medical applications.
Product Specification
The Vertical Steam Autoclave 12" × 22" (Single Wall) (MT-404) is a reliable steam sterilization system developed for laboratories, hospitals, pharmaceutical industries, biotechnology facilities, research institutes, and educational organizations. Manufactured by Micro Technologies, this autoclave provides safe and efficient sterilization using saturated steam under controlled pressure.
The sterilizer is manufactured with a high-quality stainless steel body, ensuring excellent corrosion resistance, durability, and ease of cleaning. The aluminum ring and lid provide a secure pressure seal while maintaining structural strength during continuous laboratory operation.
The unit incorporates a comprehensive safety system including a spring-loaded adjustable safety valve, dead-weight safety valve, and steam release valve, ensuring reliable pressure control throughout the sterilization process. A pressure gauge allows continuous monitoring of internal operating conditions for enhanced user safety.
With a 40-liter chamber capacity, the MT-404 is suitable for sterilizing laboratory glassware, culture media, surgical instruments, dressing materials, microbiological equipment, and heat-resistant laboratory accessories. An inner aluminum tray enables organized loading while maximizing chamber utilization.
The autoclave operates at a working pressure of 5–18 PSI, providing effective sterilization for routine laboratory and medical procedures. Its sturdy tripod stand ensures excellent stability, while the heavy-duty construction supports long-term use in demanding laboratory environments.
Manufactured by Micro Technologies, every MT-404 Vertical Steam Autoclave is thoroughly tested for pressure safety, mechanical reliability, and sterilization performance before delivery.
Features
- Vertical steam autoclave
- Single-wall construction
- Stainless steel body
- Aluminum lid and ring
- 40-liter chamber capacity
- Spring-loaded safety valve
- Dead-weight safety valve
- Steam release valve
- Precision pressure gauge
- Inner aluminum tray
- Stable tripod stand
- Easy operation
- Heavy-duty laboratory construction
- Corrosion-resistant finish
- Long operational life
Benefits
- Efficient steam sterilization
- Reliable pressure control
- Safe laboratory operation
- Corrosion-resistant construction
- Large sterilization capacity
- Easy loading and unloading
- Suitable for routine laboratory use
- Low maintenance
- Durable mechanical construction
- Long service life
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Vertical Steam Autoclave 12" × 22" (Single Wall) |
| Model | MT-404 |
| Type | Vertical Steam Sterilizer |
| Construction | Single Wall |
| Body Material | Stainless Steel |
| Lid Material | Aluminum |
| Ring Material | Aluminum |
| Chamber Size | 12" × 22" |
| Capacity | 40 Liters |
| Working Pressure | 5–18 PSI |
| Safety Valve | Spring-Loaded Adjustable Type |
| Additional Safety | Dead-Weight Safety Valve |
| Steam Release Valve | Provided |
| Pressure Gauge | Analog Pressure Gauge |
| Tray | Inner Aluminum Tray |
| Stand | Mild Steel Tripod Stand |
| Applications | Laboratories, Hospitals, Pharmaceutical Industries, Biotechnology Labs, Research Institutes |
Available Models
| Model | Description |
|---|---|
| MT-404 | Vertical Steam Autoclave 12" × 22" Single Wall |
| MT-404A | With Digital Temperature Controller (Optional) |
| MT-404B | With Digital Timer & Automatic Cut-Off (Optional) |
Optional Accessories
- Digital temperature controller
- Digital pressure indicator
- Automatic timer
- Stainless steel perforated basket
- Additional aluminum tray
- Silicone sealing gasket
- Spare safety valve
- Heating element
- Calibration certificate
SKU System
- MT-404
- MT-404A
- MT-404B
FAQs
What is the MT-404 Vertical Steam Autoclave used for?
The MT-404 is designed for sterilizing laboratory glassware, culture media, surgical instruments, microbiological equipment, dressing materials, and other heat-resistant laboratory items.
What is the capacity of the autoclave?
The MT-404 offers a 40-liter sterilization chamber, making it suitable for routine laboratory and medical sterilization.
What working pressure does the autoclave operate at?
The autoclave operates within a working pressure range of 5–18 PSI.
What safety systems are included?
The unit includes a spring-loaded safety valve, dead-weight safety valve, steam release valve, and pressure gauge for safe and reliable operation.
What material is used for the body?
The body is manufactured from high-quality stainless steel, while the lid and ring are made from aluminum.
Which industries commonly use the MT-404?
The MT-404 is widely used in hospitals, microbiology laboratories, pharmaceutical industries, biotechnology laboratories, research institutes, diagnostic centers, educational institutions, and industrial quality control laboratories.
Can the MT-404 be supplied in bulk?
Yes. Micro Technologies supplies the MT-404 Series for institutional procurement, OEM manufacturing, government tenders, distributors, export projects, and bulk laboratory equipment requirements.
Why Choose Our Products
- High-quality stainless steel construction
- Reliable steam sterilization performance
- Advanced pressure safety system
- Large 40-liter capacity
- Durable laboratory-grade design
- Easy maintenance
- OEM manufacturing support
- Competitive B2B pricing
- Bulk institutional supply
- Strict quality inspection
- Professional technical assistance
- Reliable after-sales support
Call to Action
Choose the Vertical Steam Autoclave 12" × 22" (Single Wall) (MT-404) from Micro Technologies for reliable sterilization in laboratories, hospitals, research institutes, pharmaceutical industries, and educational institutions. Contact us today for pricing, customization options, OEM manufacturing, government tenders, distributor inquiries, or a competitive quotation.
