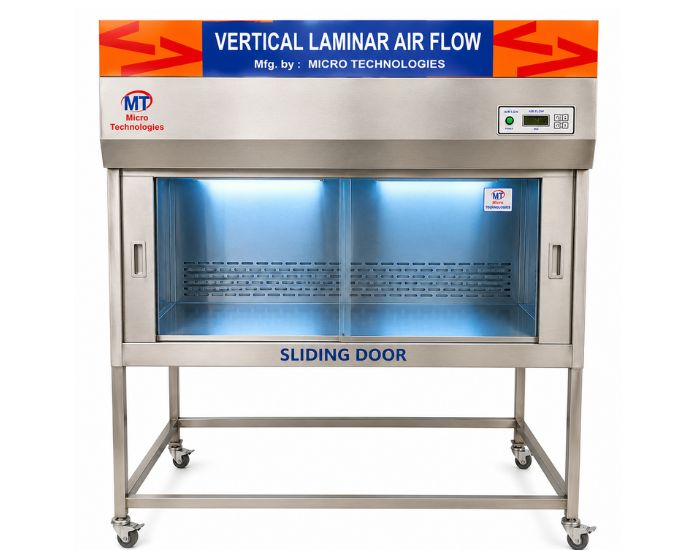

Vertical Laminar Air Flow Cabinet, Mild Steel (MT-104 Series)
Product Specification Sheet
Vertical Laminar Air Flow Cabinet, Mild Steel (MT-104 Series)
Model Number: MTLF-02
The Vertical Laminar Air Flow Cabinet, Mild Steel (MT-104 Series) is designed to provide a clean, particle-controlled workspace for aseptic laboratory procedures. Manufactured by Micro Technologies, it combines vertical HEPA-filtered airflow, a powder-coated mild steel body, stainless steel work surface, UV germicidal light, fluorescent illumination, and optional microprocessor-based monitoring for dependable laboratory operation.
Product Specification
The Vertical Laminar Air Flow Cabinet, Mild Steel (MT-104 Series) is a high-performance clean air workstation developed to protect samples, media, and laboratory processes from airborne particulate contamination. Manufactured by Micro Technologies, this cabinet is widely used in microbiology laboratories, pharmaceutical industries, biotechnology facilities, tissue culture laboratories, electronics assembly units, food testing laboratories, research institutes, and educational institutions.
The cabinet operates by drawing ambient air through a pre-filter followed by a high-efficiency HEPA filter, removing airborne dust and particulate contaminants before delivering a uniform vertical stream of ultra-clean air directly over the working area. The downward airflow continuously flushes contaminants away from the work surface, creating a controlled environment for aseptic laboratory operations.
Its exterior is fabricated from heavy-duty mild steel finished with a durable powder-coated surface that offers excellent resistance to corrosion and routine laboratory wear. The working platform is manufactured from hairline-finished stainless steel, providing a smooth, hygienic, and easy-to-clean surface suitable for sensitive laboratory applications.
The cabinet incorporates a transparent acrylic front door, available in both sliding-door and folding-door configurations, allowing convenient access while maintaining airflow integrity. A built-in fluorescent lighting system ensures clear visibility of the work area, while an integrated UV germicidal lamp helps disinfect the chamber before laboratory operations begin.
For airflow monitoring, the cabinet includes a static manometer, while optional gas and vacuum connections increase operational flexibility for specialized laboratory procedures.
An optional microprocessor-based digital controller significantly enhances performance and user convenience. It provides password-protected access, programmable cleaning cycles, real-time clock, UV timer, total UV operating hours, HEPA filter operating hours, airflow monitoring, filter replacement alarms, door position alarms, cabinet temperature display, and automatic UV-light interlocking for improved laboratory safety.
The MT-104 Series is available in multiple chamber sizes to suit different laboratory requirements and can be customized according to user specifications.
Manufactured by Micro Technologies, every Vertical Laminar Air Flow Cabinet undergoes stringent quality testing to ensure stable airflow, filtration efficiency, mechanical reliability, and long-term operational performance.
Features
- Vertical unidirectional HEPA-filtered airflow
- Heavy-duty powder-coated mild steel body
- Hairline-finished stainless steel worktable
- High-efficiency HEPA filtration
- Washable pre-filter
- Balanced low-noise motor blower
- Uniform downward airflow
- Static manometer
- Transparent acrylic front panel
- Sliding-door or folding-door configuration
- Fluorescent work light
- UV germicidal lamp
- Gas cock and vacuum port provision
- Detachable support stand
- Optional microprocessor-based digital controller
- Differential pressure monitoring
- Air velocity sensor (optional)
- Touch keypad operation
- HEPA filter-life monitoring
- Audio and visual alarm system
- Automatic UV interlocking
- Cabinet temperature monitoring
- International-standard safety features
Benefits
- Protects sensitive samples from contamination
- Maintains a clean laboratory environment
- Uniform vertical airflow across the work area
- Supports aseptic laboratory procedures
- Durable corrosion-resistant construction
- Easy cleaning and maintenance
- Improved operator convenience
- Advanced digital monitoring and alarms
- Low operating noise
- Energy-efficient blower system
- Suitable for continuous laboratory use
- Long operational life
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Vertical Laminar Air Flow Cabinet, Mild Steel |
| Model Series | MT-104 |
| Airflow Type | Vertical Laminar Flow |
| Cabinet Material | Powder-Coated Mild Steel |
| Work Surface | Hairline-Finished Stainless Steel |
| Main Filter | HEPA Filter |
| Pre-Filter | Washable Synthetic Pre-Filter |
| Airflow | Vertical Downflow |
| Blower | Dynamically Balanced Motor Blower |
| Pressure Monitoring | Static Manometer |
| Front Door | Sliding or Folding Acrylic Door |
| Illumination | Fluorescent Lamp |
| UV Light | Germicidal UV Lamp |
| Controller | Optional Microprocessor Digital Controller |
| Installation | Floor Standing |
| Applications | Microbiology, Pharmaceuticals, Biotechnology, Tissue Culture, Electronics, Research Laboratories |
Available Models
| Model | Working Chamber | HEPA Filter Size | HEPA Filters | Pre-Filters | Illumination | UV Lamp |
|---|---|---|---|---|---|---|
| MT-104(A) | 2' × 2' × 2' | 2' × 2' × 6" | 1 | 1 | 1 × 20W | 1 × 1.5 ft |
| MT-104(B) | 3' × 2' × 2' | 3' × 2' × 6" | 1 | 1 | 1 × 20W | 1 × 1.5 ft |
| MT-104(C) | 4' × 2' × 2' | 4' × 2' × 6" | 1 | 1 | 1 × 20W | 1 × 3 ft |
| MT-104(D) | 6' × 2' × 2' | 3' × 2' × 6" | 2 | 1 | 2 × 20W | 1 × 3 ft |
Optional Accessories
- Microprocessor-based digital controller
- Differential pressure gauge
- Air velocity sensor
- Touch keypad
- HEPA filter monitoring system
- UV usage timer
- Cabinet temperature display
- Door safety sensor
- Audio and visual alarm
- Gas cock
- Vacuum port
- Stainless steel stand
- Electrical utility socket
- Replacement HEPA filter
- Replacement pre-filter
- IQ/OQ validation documents
SKU System
- MT-104-A
- MT-104-B
- MT-104-C
- MT-104-D
FAQs
What is the MT-104 Vertical Laminar Air Flow Cabinet used for?
The MT-104 Series is designed for aseptic sample preparation, microbiological work, pharmaceutical applications, tissue culture, electronics assembly, media preparation, and other contamination-sensitive laboratory operations.
How does the vertical airflow system work?
Air is drawn through a pre-filter and HEPA filter before being delivered vertically downward across the working chamber, creating a clean environment that minimizes airborne particulate contamination.
What material is used for the cabinet?
The cabinet body is manufactured from powder-coated mild steel, while the worktable is made from hairline-finished stainless steel.
Which door options are available?
The MT-104 Series is available with either a sliding acrylic front door or a folding acrylic front door, depending on user preference.
What functions are available with the optional digital controller?
The optional controller provides password protection, HEPA filter monitoring, UV timer, airflow monitoring, temperature display, real-time clock, door safety alarms, filter replacement alerts, automatic UV interlocking, and programmable cleaning cycles.
Does the cabinet include UV sterilization?
Yes. Every MT-104 cabinet is equipped with a UV germicidal lamp for chamber sterilization before operation.
Is the cabinet suitable for handling hazardous biological agents?
No. A laminar air flow cabinet is designed to protect the product being handled. For hazardous microorganisms or infectious materials, a certified Biological Safety Cabinet (BSC) should be used.
Can the MT-104 Series be customized?
Yes. Micro Technologies offers customized chamber sizes, filtration configurations, digital monitoring options, utility fittings, and other specifications to meet individual laboratory requirements.
Why Choose Our Products
- High-efficiency HEPA filtration
- Stable vertical laminar airflow
- Durable powder-coated construction
- Stainless steel hygienic work surface
- Advanced optional digital controller
- UV sterilization system
- Low-noise blower operation
- Multiple cabinet sizes available
- Custom manufacturing solutions
- OEM manufacturing support
- Strict quality inspection
- Reliable after-sales technical support
Call to Action
Choose the Vertical Laminar Air Flow Cabinet, Mild Steel (MT-104 Series) from Micro Technologies for clean, reliable, and contamination-free laboratory operations. Contact us today for pricing, customized sizes, digital controller options, OEM manufacturing, institutional procurement, government tenders, distributor inquiries, or a competitive quotation.
