Reverse Laminar Air Flow Booth (MT-122 Series)
Product Specification Sheet

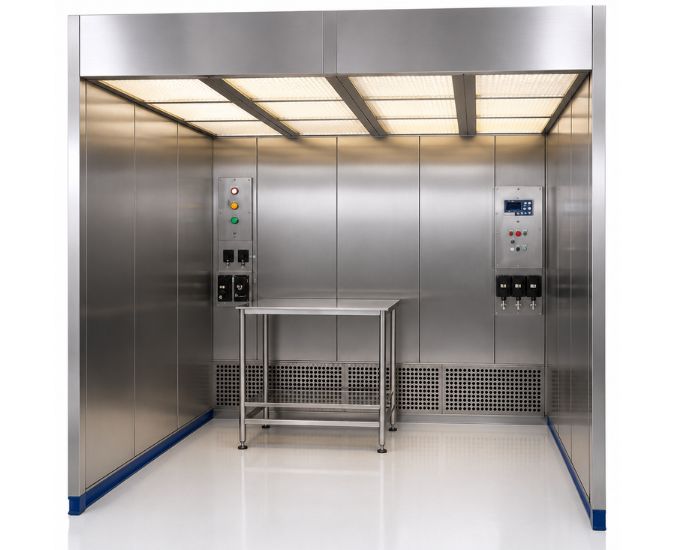

Reverse Laminar Air Flow Booth (MT-122 Series)
Model Number: MTLF-04
The Reverse Laminar Air Flow Booth (MT-122 Series) is a contamination-control workstation designed for weighing, mixing, sampling, and dispensing powders while protecting operators and the surrounding environment. Manufactured by Micro Technologies, it combines reverse airflow technology, Class 100 (ISO 5) cleanliness, multi-stage HEPA filtration, and low-noise operation to provide safe powder handling in pharmaceutical, biotechnology, food, and chemical industries.
Product Specification
The Reverse Laminar Air Flow Booth (MT-122 Series) is engineered to create a clean and controlled environment for handling powders that may generate airborne particulate contamination during weighing, dispensing, sampling, or mixing operations. Manufactured by Micro Technologies, the booth is designed to protect laboratory personnel, production operators, and surrounding cleanroom environments while maintaining product quality.
Unlike conventional laminar airflow systems, the Reverse Laminar Air Flow Booth generates controlled reverse airflow that continuously draws airborne powder particles away from the operator and through a high-efficiency filtration system. This airflow pattern effectively minimizes operator exposure while preventing powder contamination from spreading into adjacent work areas.
The booth is fabricated from premium-grade SS304, SS316, or SS316L stainless steel, depending on process requirements. The robust double-wall insulated side panels with thermocol injection provide excellent structural rigidity, thermal insulation, and long service life while maintaining cleanroom compatibility.
The filtration system consists of three filtration stages, including a washable pre-filter, intermediate fine filter, and H14 Mini Pleat HEPA filter, delivering exceptional air purification. The HEPA filter removes 99.999% of particles down to 0.3 microns, maintaining Class 100 (ISO Class 5) cleanliness inside the work area.
A dynamically balanced low-noise motor blower delivers uniform airflow at approximately 90 ± 20 FPM, ensuring effective powder containment without disturbing weighing accuracy. The booth also incorporates differential pressure monitoring using three gauges to continuously monitor the condition of each filtration stage.
The working chamber is brightly illuminated using fluorescent lighting for improved visibility during laboratory operations. A UV germicidal lamp can be provided for chamber sterilization before and after use. Additional accessories such as hour meters, Magnehelic pressure gauges, and customized utility options further enhance operational convenience.
The MT-122 Series is widely used in pharmaceutical manufacturing, biotechnology laboratories, API production, chemical industries, food processing plants, cosmetic manufacturing, hospitals, research institutes, and quality control laboratories where powder containment is essential.
Manufactured by Micro Technologies, every Reverse Laminar Air Flow Booth undergoes comprehensive airflow balancing, HEPA filter integrity testing, electrical safety inspection, and performance verification before dispatch.
Features
- Reverse laminar airflow technology
- Class 100 (ISO Class 5) clean environment
- SS304, SS316, or SS316L construction
- Double-wall insulated side panels
- Three-stage filtration system
- Washable pre-filter
- Intermediate fine filter
- H14 Mini Pleat HEPA filter
- HEPA efficiency: 99.999% @ 0.3 micron
- Air velocity: 90 ± 20 FPM
- Dynamically balanced motor blower
- Low-noise operation (<67 dB)
- Differential pressure monitoring
- Fluorescent illumination
- UV germicidal lamp
- Hour meter
- Magnehelic pressure gauge
- Easy cleaning and maintenance
- GMP-compatible construction
Benefits
- Protects operators from airborne powders
- Prevents environmental contamination
- Maintains clean dispensing operations
- Supports accurate weighing procedures
- Improves product quality
- High-efficiency HEPA filtration
- Excellent airflow stability
- Low operating noise
- Durable stainless steel construction
- Easy cleaning and sanitization
- Long operational life
- Suitable for continuous production
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Reverse Laminar Air Flow Booth |
| Model Series | MT-122 |
| Construction Material | SS304 / SS316 / SS316L |
| Cleanliness Class | Class 100 (ISO Class 5) |
| Side Panels | Double Wall with Thermocol Insulation |
| Air Velocity | 90 ± 20 FPM |
| Noise Level | Less than 67 dB |
| Filtration System | Three Stage |
| Pre Filter | EU-4 (90% down to 10 Micron) |
| Intermediate Filter | EU-5 (95% down to 5 Micron) |
| HEPA Filter | H14 Mini Pleat EU-14 |
| HEPA Efficiency | 99.999% @ 0.3 Micron |
| Motor & Blower | Statically & Dynamically Balanced |
| Differential Pressure | Three Pressure Gauges |
| Illumination | Fluorescent Light |
| Accessories | UV Lamp, Hour Meter, Magnehelic Gauge |
| Applications | Pharmaceutical, Biotechnology, Chemical, Food Processing, Research Laboratories |
Available Models
Standard Booth Sizes
| Model | Booth Size (W × D × H) |
|---|---|
| MT-122(A) | 305 × 305 × 25 / 50 / 150 mm |
| MT-122(B) | 610 × 305 × 25 / 50 / 150 mm |
| MT-122(C) | 610 × 610 × 25 / 50 / 150 mm |
| MT-122(D) | 915 × 610 × 25 / 50 / 150 mm |
| MT-122(E) | 915 × 760 × 25 / 50 / 150 mm |
| MT-122(F) | 915 × 915 × 25 / 50 / 150 mm |
| MT-122(G) | 1220 × 610 × 25 / 50 / 150 mm |
| MT-122(H) | 1220 × 915 × 25 / 50 / 150 mm |
Custom booth dimensions and airflow capacities are available upon request.
Optional Accessories
- UV germicidal lamp
- Digital airflow monitoring system
- Microprocessor-based controller
- Differential pressure monitor
- Magnehelic pressure gauges
- Digital pressure indicator
- Stainless steel weighing table
- Air velocity sensor
- LED lighting
- Touchscreen HMI
- Validation ports
- DOP filter integrity testing
- IQ/OQ/PQ documentation
- Calibration certificate
SKU System
- MT-122-A
- MT-122-B
- MT-122-C
- MT-122-D
- MT-122-E
- MT-122-F
- MT-122-G
- MT-122-H
FAQs
What is the MT-122 Reverse Laminar Air Flow Booth used for?
The MT-122 Series is designed for weighing, dispensing, sampling, mixing, and transferring powders while protecting operators and surrounding cleanroom environments from airborne particulate contamination.
How does reverse laminar airflow work?
The booth creates controlled reverse airflow that continuously pulls airborne powder particles away from the operator through multiple filtration stages before returning clean air to the working environment.
What cleanliness level does the booth provide?
The MT-122 Series maintains Class 100 (ISO Class 5) cleanroom conditions through high-efficiency HEPA filtration.
What filtration system is used?
The booth incorporates a three-stage filtration system consisting of a washable EU-4 pre-filter, EU-5 intermediate filter, and H14 Mini Pleat HEPA filter with 99.999% efficiency at 0.3 microns.
Which materials are available for construction?
The booth can be manufactured using SS304, SS316, or SS316L stainless steel, depending on the application.
Which industries commonly use the MT-122 Series?
The MT-122 Series is widely used in pharmaceutical manufacturing, biotechnology laboratories, API production, food processing, chemical industries, cosmetic manufacturing, hospitals, research laboratories, and quality control facilities.
Can the booth be customized?
Yes. Micro Technologies offers customized booth dimensions, airflow capacities, filtration systems, digital controls, utility arrangements, and validation packages according to customer requirements.
Can the MT-122 Series be supplied in bulk?
Yes. Micro Technologies supplies the MT-122 Series for pharmaceutical projects, cleanroom installations, OEM manufacturing, institutional procurement, government tenders, distributors, exporters, and industrial manufacturing facilities.
