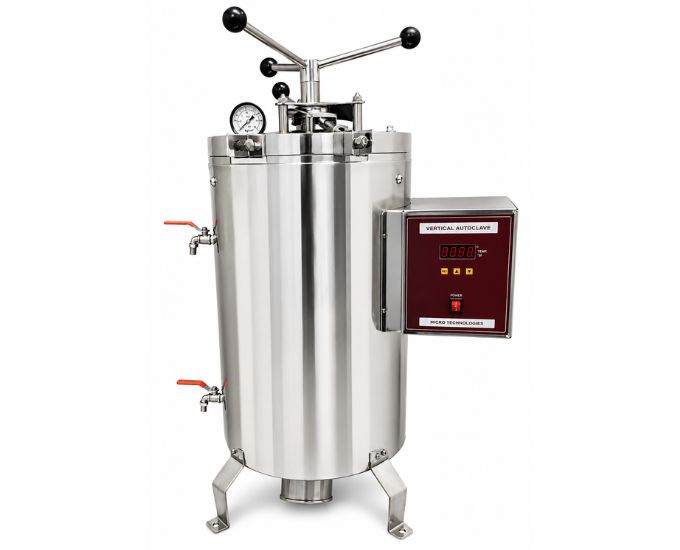

Vertical Laboratory Autoclave (Radial Locking) – Double Wall (MT-185 Series)
Product Specification Sheet
Vertical Laboratory Autoclave (Radial Locking) – Double Wall (MT-185 Series)
Model Number: MTAC-06
The Vertical Laboratory Autoclave (Radial Locking) – Double Wall (MT-185 Series) is a premium-grade steam sterilizer designed for demanding laboratory, pharmaceutical, medical, and industrial sterilization applications. Manufactured by Micro Technologies, the autoclave features a double-wall stainless steel construction, radial locking mechanism, heavy-duty SS-304 chamber, pressure gauge, dual safety valve, water level indicator, and capacities from 22 to 152 litres. It provides safe, efficient, and uniform steam sterilization for laboratory instruments, glassware, media, surgical equipment, and other autoclavable materials.
Product Specification
The Vertical Laboratory Autoclave (Radial Locking) – Double Wall (MT-185 Series) is a high-performance laboratory steam sterilizer engineered to deliver reliable sterilization under controlled pressure and temperature conditions. Manufactured by Micro Technologies, the unit is designed for continuous laboratory and industrial use where dependable sterilization performance is essential.
The autoclave features a double-wall construction, with the outer chamber fabricated from heavy-gauge stainless steel and the inner chamber manufactured from SS-304 stainless steel, ensuring excellent corrosion resistance, superior heat retention, and long service life. All internal joints are argon arc welded and ground, producing smooth crevice-free interiors that facilitate easy cleaning and maintain high hygienic standards.
The radial locking mechanism provides uniform pressure distribution around the lid, ensuring a secure, leak-proof seal throughout the sterilization cycle. The autoclave is fitted with a gun-metal/stainless steel lid, while deluxe models include vacuum breaker systems for enhanced operational safety.
The MT-185 Series incorporates a comprehensive range of safety features, including a pressure gauge, double safety valve (spring-loaded with weight type), steam release valve, water inlet, water outlet, and water level indicator, allowing safe monitoring and control during operation.
A moulded EDPM gasket provides excellent sealing performance under high-pressure conditions while offering long-term durability. The unit operates on 220V AC, 50Hz, single-phase power and is equipped with electric heating elements from 2.0 kW to 6.0 kW, depending on the selected model.
Designed to operate within a pressure range of 15–20 PSI, the autoclave delivers effective sterilization of microbiological media, surgical instruments, laboratory glassware, culture vessels, rubber items, textiles, pharmaceutical equipment, and other heat-resistant materials.
Optional automation features such as automatic low-water cut-off, pressure control switch, water level arrangement, digital temperature indicator, digital temperature controller, and digital timer further enhance operational convenience and safety.
Manufactured by Micro Technologies, every Vertical Laboratory Autoclave undergoes rigorous quality inspection to ensure reliable sterilization performance, safe operation, and long operational life. The MT-185 Series is widely used in pharmaceutical industries, microbiology laboratories, biotechnology laboratories, hospitals, universities, research institutes, food testing laboratories, and industrial quality control facilities.
Features
- Double-wall stainless steel construction
- Heavy-duty SS-304 inner chamber
- Heavy-gauge stainless steel outer chamber
- Radial locking lid mechanism
- Gun-metal / stainless steel lid
- Crevice-free argon arc welded chamber
- Mirror-polished finish
- Pressure gauge
- Double safety valve
- Steam release valve
- Water inlet and outlet
- Water level indicator
- EDPM moulded gasket
- Vacuum breaker (Deluxe Models)
- Electric heating system
- Operating pressure 15–20 PSI
- Compact vertical design
- Easy operation and maintenance
Benefits
- Uniform and reliable steam sterilization
- Superior heat retention through double-wall construction
- Leak-proof radial locking system
- Heavy-duty stainless steel construction
- Long operational life
- Safe pressure operation
- Easy cleaning and maintenance
- Suitable for continuous laboratory use
- Excellent corrosion resistance
- Reliable sterilization performance
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Vertical Laboratory Autoclave (Radial Locking) – Double Wall (MT-185 Series) |
| Product Type | Vertical Steam Sterilizer |
| Construction | Double Wall |
| Outer Chamber | Heavy Gauge Stainless Steel |
| Inner Chamber | SS-304 Stainless Steel |
| Lid | Stainless Steel / Gun Metal |
| Finish | Mirror Polished |
| Locking System | Radial Locking |
| Operating Pressure | 15–20 PSI |
| Safety Features | Pressure Gauge, Double Safety Valve, Steam Release Valve, Vacuum Breaker (Deluxe Models) |
| Heating System | Electric |
| Power Supply | 220V AC, 50Hz, Single Phase |
| Heater Rating | 2.0 kW – 6.0 kW |
| Applications | Laboratory Sterilization, Medical Sterilization, Pharmaceutical Processing, Microbiology, Biotechnology, Research Laboratories |
Available Models
| Model | Chamber Size | Capacity | Heater Load |
|---|---|---|---|
| MT-185(A) | 10" × 18" | 22 Litres | 2.0 kW |
| MT-185(B) | 12" × 20" | 40 Litres | 3.0 kW |
| MT-185(C) | 14" × 22" | 50 Litres | 4.0 kW |
| MT-185(D) | 16" × 24" | 78 Litres | 5.0 kW |
| MT-185(E) | 18" × 24" | 98 Litres | 5.0 kW |
| MT-185(F) | 22" × 30" | 152 Litres | 6.0 kW |
Optional Accessories
- Automatic Low Water Level Cut-Off Device
- Pressure Control Switch
- Water Level Arrangement
- Radial Lock Upgrade
- Digital Temperature Indicator
- Digital Temperature Indicator cum Controller
- Digital Temperature Indicator cum Controller with Digital Timer
- Stainless Steel Basket
- Calibration Certificate
SKU System
- MT-185-A
- MT-185-B
- MT-185-C
- MT-185-D
- MT-185-E
- MT-185-F
FAQs
What is the MT-185 Vertical Laboratory Autoclave used for?
The MT-185 Series is used for steam sterilization of laboratory glassware, microbiological media, surgical instruments, culture vessels, dressings, rubber articles, pharmaceutical equipment, and other heat-resistant materials.
What is the advantage of the double-wall construction?
The double-wall design provides improved thermal insulation, uniform heat distribution, reduced heat loss, enhanced safety, and better energy efficiency during sterilization.
What type of locking system is used?
The autoclave features a heavy-duty radial locking mechanism, ensuring uniform pressure sealing and safe operation under high-pressure conditions.
What safety features are included?
The MT-185 Series includes a pressure gauge, double safety valve, steam release valve, water level indicator, water inlet/outlet, and vacuum breaker (Deluxe Models).
What capacities are available?
The autoclave is available in 22L, 40L, 50L, 78L, 98L, and 152L capacities.
Which optional automation features are available?
Optional accessories include automatic low-water cut-off, pressure control switch, digital temperature indicator, digital temperature controller, and digital timer.
Which industries commonly use the MT-185 Series?
The Vertical Laboratory Autoclave is widely used in pharmaceutical industries, microbiology laboratories, biotechnology laboratories, hospitals, universities, research institutes, food testing laboratories, and industrial quality control departments.
Can the MT-185 Series be supplied in bulk?
Yes. Micro Technologies offers OEM manufacturing, institutional procurement, government tender supply, distributor support, export orders, and bulk industrial supply.
Why Choose Our Products
- Premium double-wall stainless steel construction
- Heavy-duty radial locking mechanism
- Crevice-free hygienic chamber
- Comprehensive safety features
- Multiple capacity options
- Reliable continuous sterilization
- OEM and customized manufacturing
- Competitive pricing
- Bulk supply capability
- Strict quality inspection
- Professional technical support
- Reliable after-sales service
Call to Action
Looking for a reliable Vertical Laboratory Autoclave (Radial Locking) – Double Wall (MT-185 Series)? Micro Technologies manufactures and supplies premium laboratory autoclaves designed for pharmaceutical industries, microbiology laboratories, biotechnology research, hospitals, universities, food testing laboratories, research institutes, and industrial quality control facilities. Contact us today for customized specifications, OEM manufacturing, government tenders, distributor inquiries, bulk orders, or a competitive quotation.
