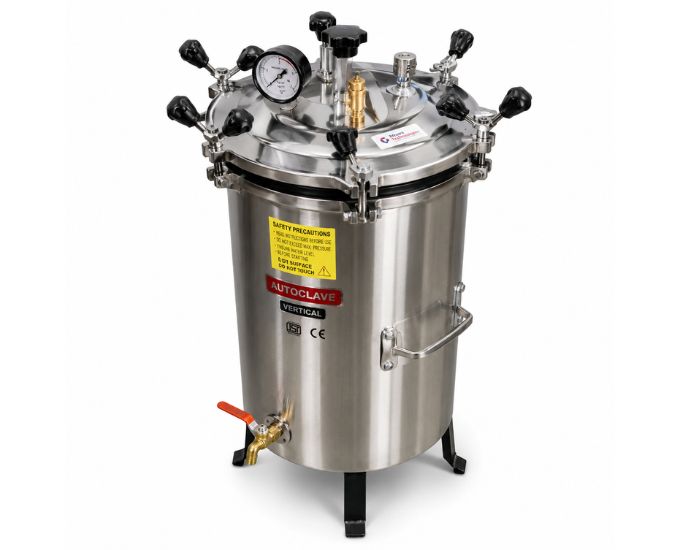

Vertical Double Wall Wing Nut Autoclave (Superior) 12" × 22" (MT-406)
Product Specification Sheet
Vertical Double Wall Wing Nut Autoclave (Superior) 12" × 22" (MT-406)
Model Number: MTAC-12
The Vertical Double Wall Wing Nut Autoclave (Superior) 12" × 22" (MT-406) is a premium laboratory steam sterilizer designed for efficient sterilization of laboratory instruments, culture media, surgical equipment, and medical supplies. Manufactured by Micro Technologies, it features a double-wall stainless steel construction, brass operating knobs, 40-liter capacity, advanced safety mechanisms, and a 2 kW heating system for reliable and safe sterilization.
Product Specification
The Vertical Double Wall Wing Nut Autoclave (Superior) 12" × 22" (MT-406) is engineered for high-performance steam sterilization in laboratories, hospitals, pharmaceutical industries, biotechnology facilities, research institutes, and educational organizations. Manufactured by Micro Technologies, it delivers dependable sterilization through saturated steam under controlled pressure, ensuring effective elimination of microorganisms and contaminants.
The autoclave features a double-wall construction with both the inner chamber and outer body manufactured from stainless steel, providing excellent corrosion resistance, superior heat retention, and long service life. The aluminum lid and ring ensure a secure and durable pressure seal during operation.
The superior model is equipped with heavy-duty brass operating knobs, offering enhanced durability, improved grip, and long-term reliability compared to conventional handles. A dedicated water outlet valve allows convenient drainage and simplifies routine cleaning and maintenance.
For maximum operator safety, the autoclave includes a spring-loaded adjustable safety valve, dead-weight safety valve, steam release valve, and a precision pressure gauge for continuous monitoring of internal pressure throughout the sterilization cycle.
The 40-liter sterilization chamber is supplied with an inner perforated chamber, providing efficient steam circulation and uniform heat distribution. A sturdy tripod stand ensures excellent stability, while the 2 kW electric heating element generates steam quickly for efficient sterilization.
Operating at a working pressure of 5–20 PSI, the MT-406 is suitable for sterilizing laboratory glassware, microbiological media, surgical instruments, pharmaceutical equipment, dressings, and various heat-resistant laboratory materials.
Manufactured by Micro Technologies, every MT-406 Vertical Double Wall Wing Nut Autoclave undergoes rigorous quality testing for pressure safety, heating efficiency, mechanical reliability, and long-term performance before dispatch.
Features
- Premium vertical double-wall steam autoclave
- Stainless steel inner chamber
- Stainless steel outer body
- Aluminum lid and ring
- Heavy-duty brass operating knobs
- Water outlet valve
- Spring-loaded adjustable safety valve
- Dead-weight safety valve
- Steam release valve
- Precision pressure gauge
- Inner perforated chamber
- Mild steel tripod stand
- 40-liter chamber capacity
- 2 kW electric heating system
- Working pressure: 5–20 PSI
- Heavy-duty laboratory construction
Benefits
- Efficient steam sterilization
- Superior heat retention
- Reliable pressure safety
- Easy water drainage
- Long-lasting brass controls
- Uniform steam circulation
- Corrosion-resistant stainless steel body
- Suitable for continuous laboratory use
- Easy maintenance
- Long service life
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Vertical Double Wall Wing Nut Autoclave (Superior) 12" × 22" |
| Model | MT-406 |
| Type | Vertical Steam Sterilizer |
| Construction | Double Wall |
| Inner Chamber | Stainless Steel |
| Outer Body | Stainless Steel |
| Lid Material | Aluminum |
| Ring Material | Aluminum |
| Chamber Size | 12" × 22" |
| Capacity | 40 Liters |
| Working Pressure | 5–20 PSI |
| Safety Valve | Spring-Loaded Adjustable |
| Additional Safety | Dead-Weight Safety Valve |
| Steam Release Valve | Provided |
| Pressure Gauge | Analog Pressure Gauge |
| Water Outlet | Brass Water Outlet Valve |
| Operating Knobs | Heavy-Duty Brass Knobs |
| Heating System | Electric |
| Heating Load | 2 kW |
| Stand | Mild Steel Tripod Stand |
| Applications | Laboratories, Hospitals, Pharmaceutical Industries, Biotechnology Labs, Research Institutes |
Available Models
| Model | Description |
|---|---|
| MT-406 | Vertical Double Wall Wing Nut Autoclave (Superior) 12" × 22" |
| MT-406A | With Digital Temperature Controller (Optional) |
| MT-406B | With Digital Timer & Automatic Cut-Off (Optional) |
Optional Accessories
- Digital temperature controller
- PID temperature controller
- Digital pressure gauge
- Automatic timer
- Stainless steel perforated basket
- Additional sterilization trays
- Spare silicone gasket
- Replacement heating element
- Calibration certificate
SKU System
- MT-406
- MT-406A
- MT-406B
FAQs
What is the MT-406 Vertical Double Wall Wing Nut Autoclave used for?
The MT-406 is designed for sterilizing laboratory glassware, culture media, microbiological equipment, surgical instruments, pharmaceutical equipment, dressings, and other heat-resistant laboratory materials.
What is the chamber capacity?
The autoclave provides a 40-liter sterilization chamber, making it suitable for medium-capacity laboratory and medical sterilization.
What is the benefit of brass operating knobs?
Brass knobs offer greater durability, corrosion resistance, secure grip, and longer service life under continuous laboratory use.
Does the autoclave include a water outlet valve?
Yes. The MT-406 features a brass water outlet valve for convenient draining and simplified maintenance.
What working pressure does the autoclave operate at?
The autoclave operates at a working pressure range of 5–20 PSI.
What safety systems are provided?
The unit includes a spring-loaded safety valve, dead-weight safety valve, steam release valve, precision pressure gauge, and secure wing nut locking system.
Where is the MT-406 commonly used?
It is widely used in hospitals, microbiology laboratories, pharmaceutical industries, biotechnology facilities, universities, research institutes, diagnostic laboratories, and industrial quality control departments.
Can the MT-406 be supplied in bulk?
Yes. Micro Technologies supplies the MT-406 Series for institutional procurement, OEM manufacturing, government tenders, distributors, export projects, and bulk laboratory equipment requirements.
