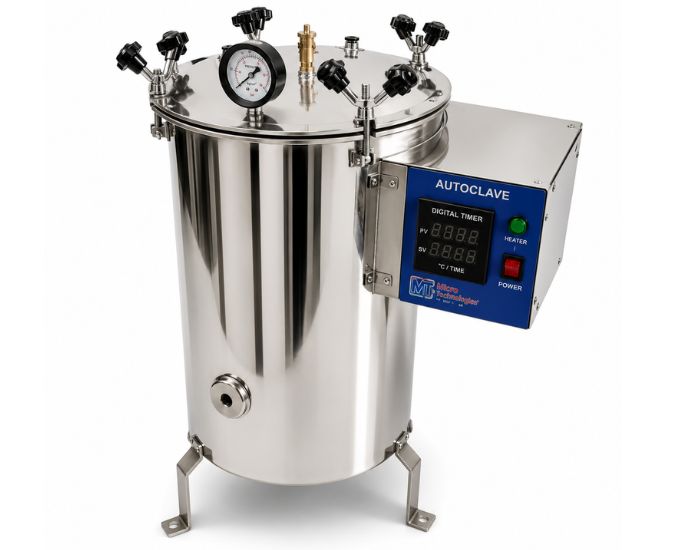

Vertical Double Wall Wing Nut Autoclave (Fully Stainless Steel) (MT-408 Series)
Product Specification Sheet
Vertical Double Wall Wing Nut Autoclave (Fully Stainless Steel) (MT-408 Series)
Model Number: MTAC-13
The Vertical Double Wall Wing Nut Autoclave (Fully Stainless Steel) (MT-408 Series) is a premium laboratory steam sterilizer engineered for safe, efficient, and accurate sterilization of laboratory instruments, glassware, surgical tools, culture media, and pharmaceutical equipment. Manufactured by Micro Technologies, it features complete SS304 construction, digital temperature control, double safety valves, and capacities ranging from 22 to 180 liters for laboratories, hospitals, research institutes, and industrial facilities.
Product Specification
The Vertical Double Wall Wing Nut Autoclave (Fully Stainless Steel) (MT-408 Series) is designed to deliver dependable steam sterilization for laboratories, hospitals, pharmaceutical industries, biotechnology companies, research institutes, educational organizations, and quality control laboratories. Manufactured by Micro Technologies, it combines advanced safety features with durable stainless steel construction to ensure consistent sterilization performance.
The autoclave is manufactured using SS304 grade stainless steel for the inner chamber, lid, and ring, while the outer wall is also fabricated from high-quality stainless steel, providing exceptional corrosion resistance, long operational life, and superior thermal efficiency. Its double-wall construction minimizes heat loss and improves overall sterilization efficiency.
The unit is equipped with a digital temperature controller for accurate monitoring and regulation of sterilization temperature, ensuring repeatable and reliable sterilization cycles. The heavy-duty wing nut locking arrangement provides uniform pressure sealing and safe operation during every cycle.
For enhanced operator safety, the MT-408 incorporates a pressure gauge, spring-loaded safety valve, double safety valve system, steam release valve, and heat-resistant silicone gasket. These features provide effective pressure regulation and additional protection during operation.
A heavy-duty tripod stand ensures excellent stability, while the efficient electric heating system provides rapid steam generation and uniform heat distribution throughout the chamber. The autoclave operates at a working pressure range of 5–20 PSI, making it suitable for routine sterilization of laboratory glassware, microbiological media, surgical instruments, pharmaceutical equipment, dressings, and heat-resistant materials.
The MT-408 Series is available in multiple chamber sizes and capacities ranging from 22 liters to 180 liters, allowing users to select the most suitable model for their sterilization requirements.
Manufactured by Micro Technologies, every Vertical Double Wall Wing Nut Autoclave is thoroughly inspected for pressure safety, heating performance, mechanical reliability, and temperature accuracy before delivery.
Features
- Fully stainless steel vertical steam autoclave
- Double-wall insulated construction
- SS304 inner chamber
- SS304 lid and ring
- Stainless steel outer body
- Digital temperature controller
- Heavy-duty wing nut locking system
- Precision pressure gauge
- Spring-loaded safety valve
- Double safety valve system
- Steam release valve
- Heat-resistant silicone gasket
- Heavy-duty tripod stand
- Electric heating system
- Working pressure: 5–20 PSI
- Multiple chamber capacities available
- Durable laboratory-grade construction
Benefits
- Uniform and efficient steam sterilization
- Superior corrosion resistance
- Accurate temperature regulation
- Enhanced operator safety
- Reliable pressure control
- Suitable for continuous laboratory operation
- Excellent heat retention
- Easy cleaning and maintenance
- Available in multiple capacities
- Long service life
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Vertical Double Wall Wing Nut Autoclave (Fully Stainless Steel) |
| Model Series | MT-408 |
| Type | Vertical Steam Sterilizer |
| Construction | Double Wall |
| Inner Chamber | SS304 Stainless Steel |
| Outer Body | Stainless Steel |
| Lid & Ring | SS304 Stainless Steel |
| Temperature Control | Digital Controller |
| Pressure Gauge | Analog Pressure Gauge |
| Safety Valve | Spring-Loaded Safety Valve |
| Additional Safety | Double Safety Valve |
| Steam Release Valve | Provided |
| Gasket | Heat-Resistant Silicone |
| Working Pressure | 5–20 PSI |
| Stand | Heavy-Duty Tripod Stand |
| Heating System | Electric |
| Applications | Laboratories, Hospitals, Pharmaceutical Industries, Biotechnology Labs, Research Institutes |
Available Models
| Model | Chamber Size (mm) | Chamber Size (Inches) | Capacity |
|---|---|---|---|
| MT-408(A) | 250 × 450 | 10 × 18 | 22 Liters |
| MT-408(B) | 300 × 550 | 12 × 22 | 40 Liters |
| MT-408(C) | 350 × 550 | 14 × 22 | 50 Liters |
| MT-408(D) | 400 × 600 | 16 × 24 | 78 Liters |
| MT-408(E) | 450 × 600 | 18 × 24 | 100 Liters |
| MT-408(F) | 450 × 750 | 18 × 30 | 120 Liters |
| MT-408(G) | 550 × 750 | 22 × 30 | 180 Liters |
Optional Accessories
- PID digital temperature controller
- Digital pressure indicator
- Automatic timer with buzzer
- Stainless steel perforated basket
- Additional sterilization trays
- Spare silicone gasket
- Replacement heating element
- Calibration certificate
- Spare safety valve
SKU System
- MT-408-A
- MT-408-B
- MT-408-C
- MT-408-D
- MT-408-E
- MT-408-F
- MT-408-G
FAQs
What is the MT-408 Vertical Double Wall Autoclave used for?
The MT-408 Series is designed for sterilizing laboratory glassware, culture media, surgical instruments, microbiological equipment, pharmaceutical products, dressings, and other heat-resistant materials.
What material is used in the construction?
The inner chamber, lid, and ring are manufactured from SS304 stainless steel, while the outer body is also made from stainless steel for excellent durability and corrosion resistance.
What pressure does the autoclave operate at?
The MT-408 Series operates within a working pressure range of 5–20 PSI.
What safety features are included?
The autoclave includes a pressure gauge, spring-loaded safety valve, double safety valve, steam release valve, silicone gasket, and secure wing nut locking system.
Is digital temperature control provided?
Yes. The MT-408 Series is equipped with a digital temperature controller for accurate monitoring and regulation of sterilization temperature.
What capacities are available?
The MT-408 Series is available in 22 L, 40 L, 50 L, 78 L, 100 L, 120 L, and 180 L capacities.
Which industries commonly use the MT-408 Series?
It is widely used in hospitals, microbiology laboratories, pharmaceutical industries, biotechnology facilities, research institutes, universities, diagnostic laboratories, and industrial quality control departments.
Can the MT-408 Series be supplied in bulk?
Yes. Micro Technologies supplies the MT-408 Series for institutional procurement, OEM manufacturing, government tenders, distributors, exporters, and bulk laboratory equipment requirements.
Why Choose Our Products
- Premium SS304 stainless steel construction
- Digital temperature control for accurate sterilization
- Double-wall insulated design
- Advanced double safety valve protection
- Reliable steam sterilization performance
- Wide range of chamber capacities
- Heavy-duty industrial construction
- OEM manufacturing support
- Competitive B2B pricing
- Bulk institutional supply
- Strict quality inspection
- Reliable after-sales service
Call to Action
Choose the Vertical Double Wall Wing Nut Autoclave (Fully Stainless Steel) (MT-408 Series) from Micro Technologies for safe, efficient, and dependable steam sterilization in laboratories, hospitals, pharmaceutical industries, research institutes, biotechnology facilities, and educational organizations. Contact us today for pricing, customized specifications, OEM manufacturing, government tenders, distributor inquiries, or a competitive quotation.
