Tubular Brass Spring Balance
Product Specification Sheet

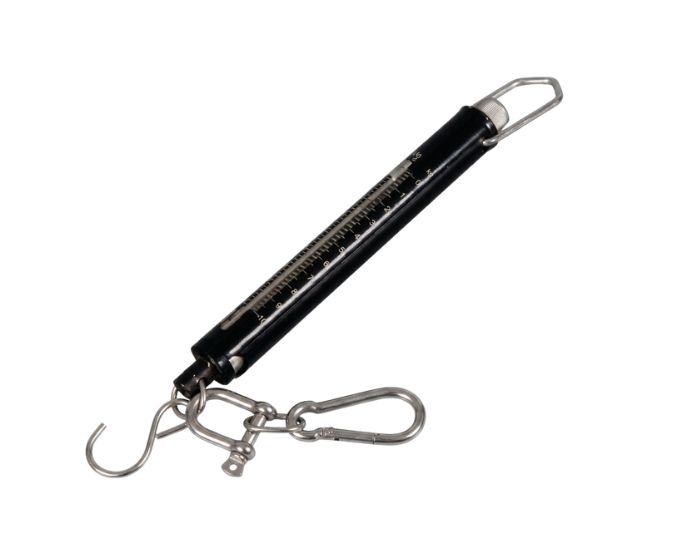

Tubular Brass Spring Balance
Model Number: MTE-04
The Tubular Brass Spring Balance from Micro Technologies is a compact mechanical measuring instrument designed for force, weight and tension measurements. It features a tubular brass barrel with adjustable zero, upper suspension ring and lower load hook. Five measuring capacities are available from 100 g to 2000 g, allowing laboratories to select the appropriate range for different mechanics experiments.
Product Specification
The Tubular Brass Spring Balance from Micro Technologies is designed for straightforward mechanical measurement of force and suspended loads in physics and mechanics laboratory applications. Its tubular construction provides a compact measuring arrangement suitable for repeated experimental use.
The instrument incorporates a brass barrel containing a spring-based measuring mechanism. When a load is attached to the lower hook, the applied force produces extension of the internal spring and a corresponding indication on the graduated scale.
An adjustable zero arrangement enables the instrument to be set to the correct starting reference before measurement. This feature is particularly useful when comparative readings are required during laboratory experiments.
The upper suspension ring provides a convenient mounting point for holding the balance vertically or attaching it to a compatible laboratory stand. The lower hook allows test masses, objects and experimental accessories to be connected easily.
Multiple capacities are available to accommodate different measurement requirements. The series includes 100 g × 1 g, 200 g × 2 g, 500 g × 5 g, 1000 g × 10 g and 2000 g × 20 g configurations.
Selecting the appropriate measuring range allows the instrument to be matched with the expected experimental load. Lower-capacity models provide finer scale divisions for lighter loads, while higher-capacity models accommodate heavier objects.
The Tubular Brass Spring Balance can be used in experiments involving force, tension, friction and mechanical equilibrium. Its simple load-and-read operation makes it convenient for integration into a wide variety of mechanics setups.
In suitable friction experiments, the balance may be connected to an object and used to observe the pulling force required to initiate or maintain motion across a surface.
It can also be incorporated into pulley and tension experiments, where the force acting through a string or mechanical arrangement needs to be observed.
The spring-based construction additionally provides a practical context for discussing the relationship between applied force and elastic deformation. Measurements should always remain within the rated capacity of the selected balance.
The tubular brass body provides a robust mechanical configuration while maintaining a relatively compact profile for laboratory handling and storage.
Since the instrument operates mechanically, it requires no battery, sensor or electrical power supply. This makes it convenient for routine laboratory measurements and demonstrations.
Manufactured and supplied by Micro Technologies, the Tubular Brass Spring Balance is suitable for physics laboratories, mechanics laboratories and scientific facilities requiring a reusable mechanical force-measuring instrument.
Features
- Tubular spring balance configuration
- Brass barrel construction
- Adjustable zero facility
- Upper suspension ring
- Lower load hook
- Mechanical spring mechanism
- Clearly graduated measuring scale
- Five measuring capacities available
- Range from 100 g to 2000 g
- Suitable for force measurement
- Useful for suspended-load measurement
- Supports tension experiments
- Compact laboratory design
- No electrical power required
- Suitable for repeated measurements
Benefits
- Robust brass barrel construction
- Provides direct mechanical measurement
- Multiple capacities suit different experimental loads
- Adjustable zero assists measurement setup
- Suspension ring provides convenient mounting
- Load hook simplifies attachment of test objects
- Useful for force, tension and friction experiments
- Compact design simplifies handling and storage
- No battery or electrical connection required
- Suitable for repeated physics laboratory applications
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Tubular Brass Spring Balance |
| Product Type | Mechanical Spring Balance |
| Body / Barrel | Brass |
| Construction | Tubular |
| Measuring Mechanism | Spring |
| Zero Adjustment | Adjustable |
| Upper Attachment | Suspension Ring |
| Lower Attachment | Load Hook |
| Measuring Unit | Gram |
| Minimum Available Capacity | 100 g |
| Maximum Available Capacity | 2000 g |
| Operation | Mechanical |
| Power Requirement | Not Required |
| Primary Measurement | Force / Suspended Load |
| Application | Physics / Mechanics Laboratory |
Available Models
| Model No. | Measuring Range | Graduation |
|---|---|---|
| MT-TSB-1 | 0–100 g | 1 g |
| MT-TSB-2 | 0–200 g | 2 g |
| MT-TSB-3 | 0–500 g | 5 g |
| MT-TSB-4 | 0–1000 g | 10 g |
| MT-TSB-5 | 0–2000 g | 20 g |
Applications
- Force measurement
- Suspended-load measurement
- Tension experiments
- Friction experiments
- Pulling-force investigations
- Mechanical equilibrium experiments
- Spring behaviour demonstrations
- Pulley experiments
- Force comparison experiments
- Hanging-mass experiments
- Mechanics laboratory practicals
- Physics laboratory experiments
- General mechanical measurements
Available Variants
100 g × 1 g Tubular Spring Balance, 200 g × 2 g Tubular Spring Balance, 500 g × 5 g Tubular Spring Balance, 1000 g × 10 g Tubular Spring Balance, 2000 g × 20 g Tubular Spring Balance, Brass Spring Balance, Tubular Mechanical Spring Balance, Laboratory Spring Balance
SKU System
MT-TSB-Series
FAQs
What is a Tubular Brass Spring Balance used for?
It is used for force, suspended-load and tension measurements in physics and mechanics laboratory experiments.
What material is the barrel made from?
The tubular barrel is constructed from brass, providing a robust mechanical housing for the measuring mechanism.
What measuring capacities are available?
Available capacities are 100 g, 200 g, 500 g, 1000 g and 2000 g.
What graduations are available?
The respective graduations are 1 g, 2 g, 5 g, 10 g and 20 g, depending on the selected capacity.
Does the Spring Balance have zero adjustment?
Yes. An adjustable zero facility is provided to establish the starting reference before measurement.
What is the suspension ring used for?
The upper suspension ring allows the instrument to be held or mounted vertically from a suitable laboratory stand or support.
Can it be used for friction experiments?
Yes. The lower hook can be connected to a suitable object to investigate pulling force and frictional resistance.
Can it be used in pulley experiments?
Yes. The Spring Balance can be integrated into suitable pulley arrangements for experiments involving force and tension.
Does it require a battery?
No. It is a completely mechanical measuring instrument and requires no battery or external electrical power.
What precautions should be taken during use?
The load should remain within the rated capacity of the selected balance. Overloading should be avoided because excessive spring extension can affect measurement performance.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Durable tubular brass construction
- Five measuring capacities available
- Adjustable zero arrangement
- Suspension ring and load hook provided
- Suitable for force, friction and tension experiments
- Simple mechanical operation
- Institutional and bulk procurement available
- OEM supply requirements supported
Call to Action
Choose the Tubular Brass Spring Balance from Micro Technologies for reliable force, tension and suspended-load measurements in physics and mechanics laboratories. Contact us with your required capacity for competitive pricing, institutional procurement, bulk laboratory supply, OEM orders and customized quotations.
