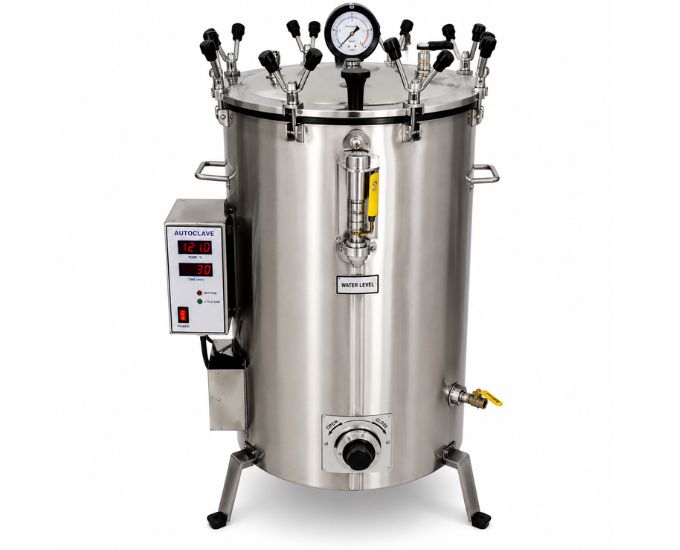

Triple Wall Vertical High Pressure Nut Locking Digital Autoclave (MT-409 Series)
Product Specification Sheet
Triple Wall Vertical High Pressure Nut Locking Digital Autoclave (MT-409 Series)
Model Number: MTAC-15
The Triple Wall Vertical High Pressure Nut Locking Digital Autoclave (MT-409 Series) is a premium laboratory steam sterilizer designed for high-pressure sterilization in laboratories, hospitals, pharmaceutical industries, biotechnology facilities, and research institutes. Manufactured by Micro Technologies, it features triple-wall SS304 construction, a leak-proof high-pressure nut locking system, digital temperature controller, digital timer, and chamber capacities ranging from 40 to 180 liters.
Product Specification
The Triple Wall Vertical High Pressure Nut Locking Digital Autoclave (MT-409 Series) is engineered to provide safe, efficient, and accurate steam sterilization for demanding laboratory and medical applications. Manufactured by Micro Technologies, this advanced sterilizer is suitable for microbiology laboratories, hospitals, pharmaceutical manufacturing units, biotechnology facilities, research institutes, diagnostic laboratories, and industrial quality control departments.
The autoclave is constructed using premium SS304 stainless steel for the inner chamber, middle chamber, lid, and ring, ensuring outstanding corrosion resistance, superior heat retention, and exceptional durability. Its triple-wall insulated construction minimizes heat loss while maintaining uniform chamber temperature during sterilization.
The high-pressure nut locking mechanism creates a secure and leak-proof seal throughout the sterilization cycle. This robust locking arrangement distributes pressure evenly around the chamber lid, making the autoclave suitable for continuous high-pressure operation.
The MT-409 Series incorporates a digital temperature controller, digital process timer, and automatic alarm system that allow precise temperature regulation and accurate sterilization cycle control. An integrated low water cut-off device protects the heating system by automatically disconnecting power whenever the water level falls below the safe operating limit.
For operator safety, the autoclave includes a pressure gauge, spring-loaded safety valve, double safety valve, steam release valve, water inlet, water outlet, water level indicator, heat-resistant silicone gasket, and a sturdy stainless steel support stand. These safety systems ensure dependable pressure regulation and safe operation during every sterilization cycle.
Operating within a working pressure range of 5–20 PSI, the MT-409 provides rapid steam generation and consistent heat distribution for sterilizing laboratory glassware, surgical instruments, microbiological media, pharmaceutical equipment, culture vessels, dressings, and other heat-resistant materials.
The MT-409 Series is available in multiple chamber sizes with capacities ranging from 40 liters to 180 liters, allowing laboratories to select the appropriate configuration based on sterilization requirements.
Manufactured by Micro Technologies, every Triple Wall High Pressure Digital Autoclave undergoes extensive testing for pressure safety, temperature accuracy, electrical reliability, and mechanical performance before delivery.
Features
- Triple-wall insulated construction
- SS304 inner chamber
- SS304 middle chamber
- SS304 lid and ring
- Leak-proof high-pressure nut locking system
- Digital temperature controller
- Digital temperature display
- Digital process timer
- Automatic completion alarm
- Automatic low water cut-off protection
- Pressure gauge
- Spring-loaded safety valve
- Double safety valve
- Steam release valve
- Water inlet
- Water outlet
- Water level indicator
- Heat-resistant silicone gasket
- Stainless steel support legs
- Working pressure: 5–20 PSI
- Heavy-duty industrial construction
Benefits
- Reliable high-pressure steam sterilization
- Leak-proof chamber sealing
- Accurate digital temperature control
- Automatic sterilization cycle management
- Enhanced operator safety
- Superior heat retention
- Uniform steam circulation
- Corrosion-resistant SS304 construction
- Suitable for continuous industrial use
- Long operational life
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Triple Wall Vertical High Pressure Nut Locking Digital Autoclave |
| Model Series | MT-409 |
| Type | Vertical Steam Sterilizer |
| Construction | Triple Wall |
| Inner Chamber | SS304 Stainless Steel |
| Middle Chamber | SS304 Stainless Steel |
| Lid & Ring | SS304 Stainless Steel |
| Locking System | High Pressure Nut Locking |
| Temperature Controller | Digital |
| Temperature Display | Digital |
| Process Timer | Digital |
| Alarm | Automatic Audio Alarm |
| Low Water Protection | Automatic Cut-Off |
| Pressure Gauge | Analog |
| Safety Valve | Spring-Loaded |
| Additional Safety | Double Safety Valve |
| Steam Release Valve | Provided |
| Water Inlet | Provided |
| Water Outlet | Provided |
| Water Level Indicator | Provided |
| Gasket | Heat-Resistant Silicone |
| Working Pressure | 5–20 PSI |
| Support Stand | Stainless Steel Legs |
| Applications | Laboratories, Hospitals, Pharmaceutical Industries, Biotechnology Labs, Research Institutes |
Available Models
| Model | Chamber Size (mm) | Chamber Size (Inches) | Capacity |
|---|---|---|---|
| MT-409(A) | 300 × 550 | 12 × 22 | 40 Liters |
| MT-409(B) | 400 × 600 | 16 × 24 | 78 Liters |
| MT-409(C) | 450 × 600 | 18 × 24 | 100 Liters |
| MT-409(D) | 550 × 750 | 22 × 30 | 180 Liters |
Optional Accessories
- Pedal lifting mechanism
- Automatic pressure control switch
- Microprocessor-based PID temperature controller
- Automatic low water cut-off system
- Digital pressure display
- Stainless steel perforated basket
- Additional sterilization trays
- Calibration certificate
- Spare silicone gasket
SKU System
- MT-409-A
- MT-409-B
- MT-409-C
- MT-409-D
FAQs
What is the MT-409 Triple Wall Digital Autoclave used for?
The MT-409 Series is designed for sterilizing laboratory glassware, microbiological media, surgical instruments, pharmaceutical equipment, culture vessels, dressings, and other heat-resistant laboratory materials.
What is the benefit of the triple-wall construction?
The triple-wall design improves insulation, reduces heat loss, enhances energy efficiency, and provides more stable sterilization temperatures.
How does the high-pressure nut locking system work?
The heavy-duty nut locking mechanism evenly secures the lid, creating a leak-proof pressure seal that ensures safe operation during high-pressure sterilization.
What digital features are included?
The MT-409 Series includes a digital temperature controller, digital process timer, automatic alarm, and low water cut-off protection for precise sterilization control.
What capacities are available?
The MT-409 Series is available in 40 L, 78 L, 100 L, and 180 L capacities.
What safety systems are provided?
The autoclave includes a pressure gauge, spring-loaded safety valve, double safety valve, steam release valve, water level indicator, low water protection, silicone gasket, and leak-proof locking mechanism.
Where is the MT-409 Series commonly used?
It is widely used in hospitals, microbiology laboratories, pharmaceutical industries, biotechnology facilities, universities, research institutes, diagnostic laboratories, and industrial quality control departments.
Can the MT-409 Series be supplied in bulk?
Yes. Micro Technologies supplies the MT-409 Series for institutional procurement, OEM manufacturing, government tenders, distributors, export projects, and bulk laboratory equipment requirements.
Why Choose Our Products
- Premium SS304 triple-wall construction
- Leak-proof high-pressure nut locking system
- Advanced digital temperature and timer control
- Automatic low water protection
- High operational safety
- Uniform steam sterilization
- Multiple chamber capacities
- OEM manufacturing support
- Competitive B2B pricing
- Bulk institutional supply
- Strict quality inspection
- Reliable after-sales support
Call to Action
Choose the Triple Wall Vertical High Pressure Nut Locking Digital Autoclave (MT-409 Series) from Micro Technologies for precise, reliable, and high-capacity steam sterilization in laboratories, hospitals, pharmaceutical industries, biotechnology facilities, research institutes, and industrial testing laboratories. Contact us today for pricing, customized configurations, OEM manufacturing, government tenders, distributor inquiries, or a competitive quotation.
