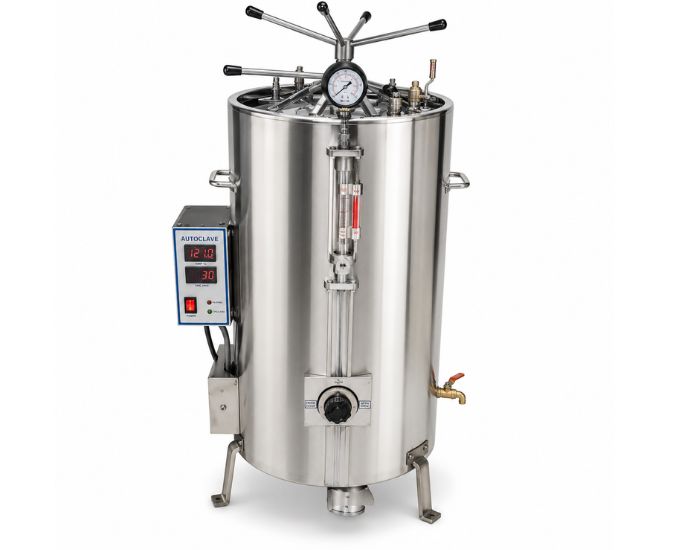

Triple Wall Vertical Autoclave with High Pressure Radial Locking (MT-411 Series)
Product Specification Sheet
Triple Wall Vertical Autoclave with High Pressure Radial Locking (MT-411 Series)
Model Number: MTAC-15
The Triple Wall Vertical Autoclave with High Pressure Radial Locking (MT-411 Series) is a premium steam sterilization system engineered for high-performance laboratory and medical sterilization. Manufactured by Micro Technologies, it features SS304 triple-wall construction, a leak-proof radial locking mechanism, digital temperature control, automatic safety systems, and chamber capacities from 40 to 180 liters, making it ideal for hospitals, pharmaceutical industries, biotechnology laboratories, research institutes, and industrial facilities.
Product Specification
The Triple Wall Vertical Autoclave with High Pressure Radial Locking (MT-411 Series) is designed to provide safe, efficient, and highly reliable steam sterilization for demanding laboratory and medical applications. Manufactured by Micro Technologies, it is suitable for sterilizing laboratory glassware, microbiological media, surgical instruments, pharmaceutical equipment, textiles, dressings, and other heat-resistant materials.
The autoclave incorporates a triple-wall insulated construction, comprising an inner chamber, middle chamber, outer body, lid, and ring manufactured from premium SS304 stainless steel. This design minimizes heat loss, improves energy efficiency, and ensures excellent corrosion resistance for long-term laboratory use.
A high-pressure radial locking mechanism securely seals the lid using a chrome-plated mild steel steering wheel, providing uniform pressure distribution and leak-proof performance throughout the sterilization cycle. The instrument is specifically engineered for safe operation under repeated high-pressure conditions.
The MT-411 Series is equipped with a digital temperature controller, digital process timer, temperature indicator, and low water cut-off protection, ensuring precise process control and enhanced operational safety. The integrated alarm system notifies the operator upon completion of the sterilization cycle or abnormal operating conditions.
For maximum safety, the autoclave incorporates a pressure gauge, spring-loaded safety valve, double safety valve, steam release valve, water inlet, water outlet, silicone gasket, and a heavy-duty stainless steel support stand. These features ensure stable pressure control, dependable steam generation, and reliable sterilization performance.
Operating within a working pressure range of 5–20 PSI, the autoclave delivers uniform steam distribution for effective sterilization across a wide variety of laboratory and medical applications.
The MT-411 Series is available in multiple chamber capacities ranging from 40 liters to 180 liters, making it suitable for small laboratories as well as high-capacity institutional sterilization facilities.
Manufactured by Micro Technologies, every Triple Wall Vertical Autoclave undergoes comprehensive testing for pressure integrity, temperature accuracy, safety systems, and mechanical reliability before dispatch.
Features
- Triple-wall insulated construction
- SS304 inner chamber
- SS304 middle chamber
- SS304 outer body
- SS304 lid and ring
- High-pressure radial locking mechanism
- Chrome-plated steering wheel locking system
- Leak-proof chamber design
- Digital temperature controller
- Digital temperature indicator
- Digital process timer
- Alarm system
- Low water cut-off protection
- Pressure gauge
- Spring-loaded safety valve
- Double safety valve
- Steam release valve
- Water inlet and outlet valves
- Silicone gasket
- Stainless steel support legs
- Working pressure: 5–20 PSI
- Heavy-duty industrial construction
Benefits
- Superior heat retention
- Highly efficient steam sterilization
- Leak-proof pressure sealing
- Precise digital temperature control
- Automatic process monitoring
- Enhanced operator safety
- Uniform steam circulation
- Corrosion-resistant SS304 construction
- Suitable for continuous industrial operation
- Long service life
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Triple Wall Vertical Autoclave with High Pressure Radial Locking |
| Model Series | MT-411 |
| Type | Vertical Steam Sterilizer |
| Construction | Triple Wall |
| Chamber Material | SS304 Stainless Steel |
| Middle Chamber | SS304 Stainless Steel |
| Outer Body | SS304 Stainless Steel |
| Lid & Ring | SS304 Stainless Steel |
| Locking System | High Pressure Radial Locking |
| Temperature Controller | Digital |
| Temperature Indicator | Digital |
| Process Timer | Digital |
| Alarm | Audio Alarm |
| Low Water Protection | Automatic Cut-Off |
| Pressure Gauge | Analog |
| Safety Valve | Spring-Loaded |
| Additional Safety | Double Safety Valve |
| Steam Release Valve | Provided |
| Water Inlet | Provided |
| Water Outlet | Provided |
| Gasket | Heat-Resistant Silicone |
| Working Pressure | 5–20 PSI |
| Support Stand | Stainless Steel Legs |
| Applications | Hospitals, Laboratories, Pharmaceutical Industries, Biotechnology Labs, Research Institutes |
Available Models
| Model | Chamber Size (mm) | Chamber Size (Inches) | Capacity |
|---|---|---|---|
| MT-411(A) | 300 × 550 | 12 × 22 | 40 Liters |
| MT-411(B) | 350 × 550 | 14 × 22 | 52 Liters |
| MT-411(C) | 400 × 600 | 16 × 24 | 78 Liters |
| MT-411(D) | 450 × 600 | 18 × 24 | 100 Liters |
| MT-411(E) | 550 × 750 | 22 × 30 | 180 Liters |
Optional Accessories
- Automatic pressure control switch
- Automatic low water cut-off system
- Microprocessor-based digital temperature controller
- Digital process timer
- User-settable post-sterilization drying timer
- User-settable purging timer
- Stainless steel perforated basket
- Additional sterilization trays
- Calibration certificate
- Spare silicone gasket
SKU System
- MT-411-A
- MT-411-B
- MT-411-C
- MT-411-D
- MT-411-E
FAQs
What is the MT-411 Triple Wall Vertical Autoclave used for?
The MT-411 Series is designed for sterilizing laboratory glassware, microbiological media, surgical instruments, pharmaceutical equipment, dressings, textiles, and other heat-resistant materials.
What is the advantage of the triple-wall construction?
The triple-wall design provides superior insulation, improved heat retention, enhanced energy efficiency, and greater operator safety during continuous sterilization cycles.
How does the radial locking system improve performance?
The radial locking mechanism distributes pressure uniformly around the lid, creating a secure, leak-proof seal suitable for high-pressure steam sterilization.
What digital controls are included?
The MT-411 Series includes a digital temperature controller, digital temperature indicator, digital process timer, alarm system, and automatic low water cut-off protection.
What capacities are available?
The MT-411 Series is available in 40 L, 52 L, 78 L, 100 L, and 180 L capacities.
What safety systems are provided?
The autoclave includes a pressure gauge, spring-loaded safety valve, double safety valve, steam release valve, low water protection, silicone gasket, and radial locking system.
Where is the MT-411 Series commonly used?
It is widely used in hospitals, microbiology laboratories, pharmaceutical industries, biotechnology facilities, universities, research institutes, diagnostic laboratories, and industrial quality control departments.
Can the MT-411 Series be supplied in bulk?
Yes. Micro Technologies supplies the MT-411 Series for institutional procurement, OEM manufacturing, government tenders, distributors, exporters, and bulk laboratory equipment requirements.
Why Choose Our Products
- Premium SS304 triple-wall construction
- Leak-proof radial locking mechanism
- Advanced digital temperature and timer control
- Automatic low water protection
- High operational safety
- Wide range of chamber capacities
- Industrial-grade durability
- OEM manufacturing support
- Competitive B2B pricing
- Bulk institutional supply
- Strict quality inspection
- Reliable after-sales service
Call to Action
Choose the Triple Wall Vertical Autoclave with High Pressure Radial Locking (MT-411 Series) from Micro Technologies for safe, precise, and high-capacity steam sterilization in laboratories, hospitals, pharmaceutical industries, biotechnology facilities, research institutes, and industrial testing laboratories. Contact us today for pricing, customized configurations, OEM manufacturing, government tenders, distributor inquiries, or a competitive quotation.
