Syringe Boyle’s Law Apparatus
Product Specification Sheet
Syringe Boyle’s Law Apparatus
Model Number: MTM-126

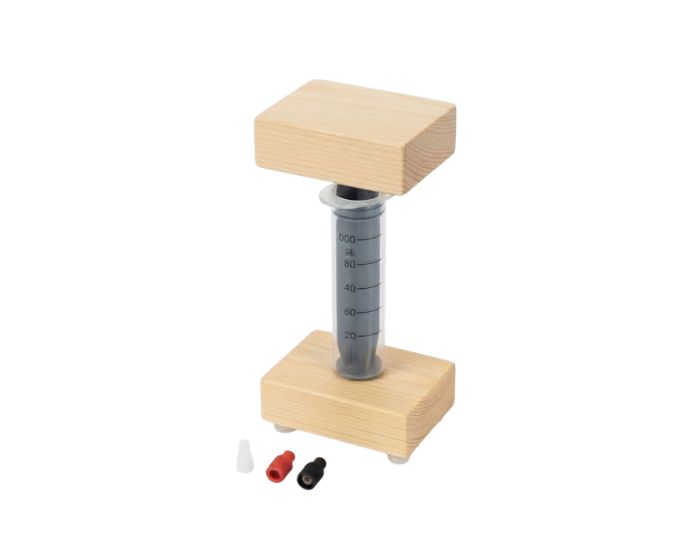

The Syringe Boyle’s Law Apparatus is a compact laboratory setup used to investigate the relationship between pressure and volume of a confined gas through controlled compression. Micro Technologies supplies the apparatus with an airtight graduated plastic syringe securely positioned between two wooden blocks. Known weights can be placed on the upper block to compress the trapped air, allowing the corresponding reduction in gas volume to be read directly from the syringe graduations. By progressively changing the applied load, multiple pressure-volume observations can be obtained and compared. Its straightforward construction, visible measurement scale, and reusable loading arrangement make the apparatus suitable for physics laboratories, universities, colleges, research facilities, and institutional procurement.
Product Specification
The Syringe Boyle’s Law Apparatus provides a straightforward method for investigating the relationship between pressure and volume of a confined gas. Instead of using liquid columns, the apparatus employs an airtight graduated plastic syringe in which a fixed quantity of air can be compressed mechanically. This configuration makes changes in gas volume directly visible as increasing loads are applied.
The syringe is supported vertically between two wooden blocks, creating a stable arrangement for controlled compression. Known weights are placed on the upper block, increasing the force acting on the syringe plunger. As additional load is applied, the trapped air is compressed and its reduced volume can be read directly from the graduations provided on the syringe barrel.
Micro Technologies supplies the Syringe Boyle’s Law Apparatus with emphasis on convenient operation, stable support, readable volume measurement, and repeatable loading. The use of known masses allows different pressure conditions to be established systematically, while the graduated syringe provides an immediate indication of the corresponding gas volume. Multiple readings can therefore be collected and compared during a single experimental session.
The apparatus can be used to investigate Boyle’s law, gas compression, pressure-volume relationships, gas elasticity, and the response of confined air to changing mechanical loads. Recorded values can be tabulated or plotted to examine the inverse relationship between pressure and volume under approximately constant-temperature conditions.
Its compact size, uncomplicated mechanical arrangement, reusable components, and direct-reading configuration make the Syringe Boyle’s Law Apparatus a practical option for laboratories requiring an alternative to traditional liquid-column Boyle’s law equipment. Minimal maintenance and straightforward component replacement also contribute to dependable long-term procurement value.
Features
- Airtight plastic syringe for controlled gas compression
- Graduated syringe barrel for direct volume readings
- Vertical syringe mounting between wooden support blocks
- Upper loading block for application of known weights
- Supports progressive loading for multiple observations
- Clearly visible changes in trapped gas volume
- Compact bench-top construction for convenient operation
- Straightforward mechanical arrangement without complex electronics
- Reusable setup for repeated pressure-volume investigations
- Low-maintenance construction for routine laboratory use
Benefits
- Provides a simple method for verifying Boyle’s law
- Direct syringe graduations simplify gas-volume measurement
- Controlled weights allow systematic variation of applied pressure
- Compact apparatus requires minimal laboratory bench space
- Reusable components reduce recurring operating costs
- Straightforward setup improves experimental efficiency
- Provides economical long-term value for institutional procurement
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Syringe Boyle’s Law Apparatus |
| Internal Model No. | MT-SBLA-01 |
| Product Type | Gas Pressure-Volume Apparatus |
| Gas Chamber | Airtight plastic syringe |
| Syringe Type | Graduated |
| Support Structure | Two wooden blocks |
| Mounting Position | Vertical |
| Loading Method | Known weights on upper block |
| Volume Measurement | Direct syringe graduation |
| Pressure Variation | Mechanical loading |
| Working Medium | Confined air |
| Operating Principle | Boyle’s law |
| Accuracy / Tolerance | Suitable for comparative laboratory measurements |
| Calibration Standard | Syringe graduation and masses verified as applicable |
| Stopper Type | Airtight syringe closure |
| Usage / Application | Gas compression and pressure-volume experiments |
| Compliance Standard | Laboratory-grade manufacturing and component quality |
Available Variants
- Standard Syringe Boyle’s Law Apparatus
- Apparatus with Weight Set
- Apparatus with Graduated Syringe
- Replacement Syringe Assembly
- Custom configuration for bulk laboratory requirements
SKU System
- MT-SBLA-STD – Standard Syringe Boyle’s Law Apparatus
- MT-SBLA-WS – Apparatus with Weight Set
- MT-SBLA-GS – Graduated Syringe Configuration
- MT-SBLA-RS – Replacement Syringe
- MT-SBLA-CUS – Customized Configuration
FAQs
What is a Syringe Boyle’s Law Apparatus used for?
The apparatus is used to investigate how the volume of confined air changes when pressure is increased or decreased. It provides a convenient mechanical setup for studying Boyle’s law through direct pressure-volume observations.
How does the apparatus demonstrate Boyle’s law?
Known weights are placed on the upper block, increasing the force applied to the syringe plunger. The trapped air compresses and its new volume can be read from the graduated syringe for comparison with the applied load.
Why is an airtight syringe required?
An airtight syringe helps maintain a fixed quantity of trapped air throughout the experiment. Significant leakage would change the amount of gas in the system and reduce the reliability of pressure-volume observations.
How is gas volume measured?
The plastic syringe incorporates graduated markings along its barrel. The position of the plunger can therefore be used to obtain a direct reading of the trapped air volume at each loading condition.
How is pressure changed during the experiment?
Pressure is varied by adding or removing known weights from the upper wooden block. Increasing the load applies greater force to the syringe plunger and compresses the enclosed air.
Does the apparatus require calibration?
The basic mechanical setup requires minimal calibration. For quantitative experiments, the syringe graduations and applied masses should be checked or verified according to the laboratory’s measurement requirements.
How accurate is the apparatus?
Measurement reliability depends on syringe sealing, graduation readability, known mass values, smooth plunger movement, and correct experimental technique. Readings should be taken after the system has stabilized.
What maintenance is required?
The syringe should be kept clean and checked for leakage, plunger resistance, cracks, or damaged graduations. Wooden supports and loading surfaces should also be inspected periodically for secure alignment.
Can the syringe be replaced?
Yes. Compatible replacement syringe assemblies can be supplied according to the apparatus configuration. Correct dimensions and airtight operation should be maintained when fitting a replacement.
Can Syringe Boyle’s Law Apparatus be ordered in bulk?
Yes. Bulk quantities can be supplied for universities, colleges, physics laboratories, scientific equipment distributors, institutional projects, and procurement requirements.
Can the apparatus configuration be customized?
Certain syringe capacities, support arrangements, weight sets, or packaging requirements may be customized depending on quantity and manufacturing feasibility.
How is the apparatus packed for transportation?
The syringe and loading components are protected against impact and unwanted compression, while the supporting blocks and accessories are securely packed to minimize movement during transportation.
Why Choose Our Products
- Simple direct-reading arrangement for pressure-volume investigations
- Airtight graduated syringe for convenient gas-volume observation
- Stable support structure for repeatable mechanical loading
- Quality-checked components for dependable laboratory operation
- Bulk supply capability for institutions, laboratories, and distributors
Call to Action
Looking for a Syringe Boyle’s Law Apparatus for pressure-volume experiments or bulk laboratory procurement? Contact Micro Technologies for competitive quotations, institutional orders, distributor inquiries, weight-set options, replacement components, and customized requirements. Share your required quantity and specifications to receive suitable pricing and delivery details.
