Refraction & Reflection Tank
Model Number: MTO-31

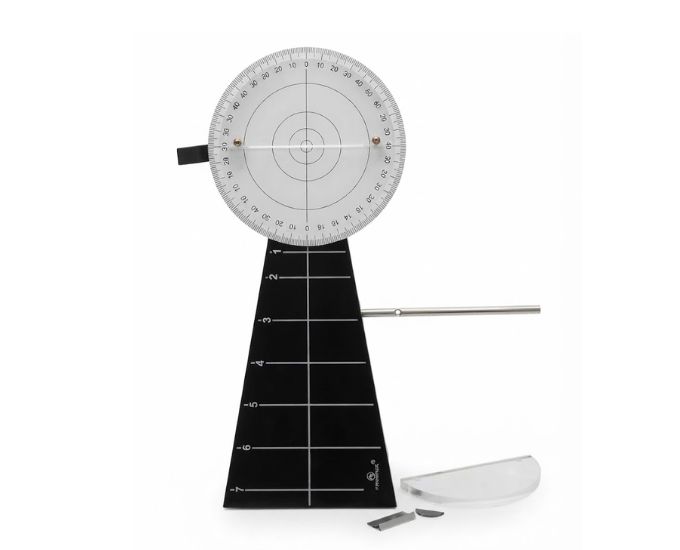

The Refraction & Reflection Tank is a versatile optical apparatus for demonstrating and investigating the behaviour of light through lenses, prisms, mirrors, and transparent media. Micro Technologies supplies the setup with a sturdy marked base, vertically mounted circular protractor scale, rotatable pointer, light-ray supporting arm, semi-circular acrylic block, prism, mirror, and associated accessories. The graduated angular arrangement makes it convenient to observe and measure changes in ray direction during reflection and refraction experiments. Components can be positioned according to the required optical investigation, providing a flexible platform for studying incidence angles, reflection angles, refraction, and related geometrical optics principles. Its reusable construction makes it suitable for physics and optics laboratories, universities, colleges, training facilities, and institutional procurement.
Product Specification
The Refraction & Reflection Tank provides a practical platform for studying how light changes direction when it encounters reflective surfaces or passes from one optical medium into another. The apparatus combines a marked working base with angular measurement facilities and interchangeable optical components, allowing a variety of geometrical optics investigations to be performed using one coordinated setup.
A circular protractor scale is mounted vertically on the apparatus and used together with a rotatable pointer. This arrangement provides a convenient reference for measuring angular relationships during experiments. Users can compare incident, reflected, and refracted ray directions and observe how these angles change when the optical component or light-ray position is adjusted.
Micro Technologies supplies the Refraction & Reflection Tank with a sturdy base incorporating marked positions for convenient component placement. A light-ray supporting arm assists with maintaining the required optical alignment while different accessories are positioned for the investigation.
The supplied semi-circular acrylic block is useful for examining refraction through curved and flat optical boundaries. Under suitable conditions, it can also support investigations involving critical angle and total internal reflection. A prism extends the experimental range to ray deviation and related refractive effects, while the mirror provides a straightforward arrangement for studying the laws of reflection.
The apparatus can be used to compare how rays behave with different optical components without requiring a completely separate setup for each investigation. Its graduated scale also makes it suitable for experiments where angular measurements are more important than simple qualitative observation.
With its rotating pointer, protractor scale, interchangeable optical components, and stable working base, the Refraction & Reflection Tank provides a durable and economical solution for routine optics experiments and complete laboratory installations.
Features
- Combined reflection and refraction apparatus
- Sturdy working base with marked positions
- Circular protractor scale for angular readings
- Vertically mounted measuring scale
- Rotatable pointer for controlled angle measurement
- Light-ray supporting arm
- Semi-circular acrylic block included
- Optical prism supplied
- Mirror included for reflection experiments
- Suitable for a broad range of geometrical optics investigations
Benefits
- Combines multiple optics investigations in one apparatus
- Graduated protractor simplifies angular measurements
- Rotatable pointer provides convenient experimental adjustment
- Multiple optical components broaden laboratory applications
- Supports both qualitative observation and measurement-based work
- Reusable construction reduces the need for separate apparatus
- Provides strong procurement value for complete optics laboratory setups
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Refraction & Reflection Tank |
| Internal Model No. | MT-30676A |
| Product Type | Reflection & Refraction Optics Apparatus |
| Base Type | Sturdy marked experimental base |
| Angular Scale | Circular protractor |
| Scale Position | Vertically mounted |
| Pointer | Rotatable |
| Light Support | Light-ray supporting arm |
| Optical Block | Semi-circular acrylic block |
| Prism | Included |
| Mirror | Included |
| Accuracy / Tolerance | Suitable for laboratory angular measurements |
| Calibration Standard | Angular reference verification before precision use |
| Stopper Type | Not applicable |
| Color | Laboratory finish / as supplied |
| Usage / Application | Reflection, refraction, ray deviation and geometrical optics |
| Compliance Standard | Laboratory-grade optical and mechanical construction |
Available Variants
- MT-30676A – Standard Refraction & Reflection Tank
- Refraction Tank with semi-circular acrylic block
- Reflection & Refraction Set with prism and mirror
- Optical Tank with angular measurement arrangement
- Customized optics configuration for bulk requirements
SKU System
- MT-RRT-STD – Standard Refraction & Reflection Tank
- MT-RRT-PRO – Protractor Scale Configuration
- MT-RRT-ACL – Acrylic Block Configuration
- MT-RRT-FULL – Complete Optical Set
- MT-RRT-CUS – Customized Configuration
FAQs
What is the Refraction & Reflection Tank used for?
The apparatus is used to investigate how light behaves during reflection and refraction. It supports experiments involving mirrors, transparent optical blocks, prisms, and different angular arrangements.
How are angles measured with the apparatus?
A vertically mounted circular protractor scale and rotatable pointer provide an angular reference. This arrangement helps users compare incident, reflected, and refracted ray directions.
Is a semi-circular acrylic block included?
Yes. A semi-circular acrylic optical block is supplied for refraction experiments involving curved and flat boundaries and related ray-optics investigations.
Can the laws of reflection be investigated?
Yes. The included mirror can be positioned in the experimental arrangement to compare the angle of incidence with the angle of reflection.
What is the prism used for?
The prism allows users to observe changes in ray direction as light passes through angled optical surfaces. It extends the apparatus to prism refraction and ray-deviation investigations.
Can critical angle be investigated?
Yes. Under an appropriate optical arrangement, the semi-circular acrylic component can support investigations involving critical angle and total internal reflection.
How accurate are the angular measurements?
The circular protractor provides a practical angular reference for laboratory experiments. For quantitative work, correct zero alignment and positioning should be verified before readings are recorded.
Does the apparatus require calibration?
Routine calibration is minimal. The protractor zero position, pointer alignment, and optical component positioning should be checked before measurement-based experiments.
How should the optical components be maintained?
Keep the acrylic block, prism, and mirror clean and free from scratches. Use suitable non-abrasive cleaning materials and store the accessories securely after use.
Can Refraction & Reflection Tanks be ordered in bulk?
Yes. Bulk quantities can be supplied for physics laboratories, optics laboratories, universities, colleges, research facilities, distributors, and institutional projects.
Can the apparatus configuration be customized?
Optical accessories, component combinations, mounting arrangements, and packaging may be customized for bulk orders depending on technical requirements and manufacturing feasibility.
How is the apparatus packed for transportation?
Optical components and mechanical parts are appropriately protected to reduce scratching, impact, and movement during transportation. Bulk and export-grade packaging can also be arranged.
Why Choose Our Products
- Integrated angular measurement arrangement
- Multiple optical components supplied in one setup
- Stable base for repeatable experimental positioning
- Quality-checked optical and mechanical construction
- Bulk supply capability for laboratories, institutions, and distributors
Call to Action
Looking for Refraction & Reflection Tanks for ray optics experiments or complete laboratory installations? Contact Micro Technologies for competitive quotations, bulk orders, institutional procurement, distributor inquiries, and customized optics configurations.
