Precision Boyle’s Law Apparatus
Product Specification Sheet

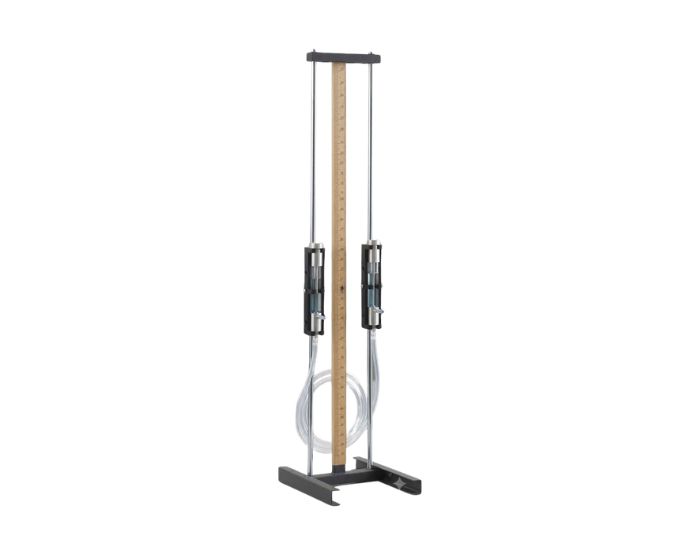

Precision Boyle’s Law Apparatus
Model Number: MTM-124
The Precision Boyle’s Law Apparatus is a laboratory instrument used to investigate the relationship between pressure and volume of a confined gas over a practical range of operating conditions. Micro Technologies supplies the apparatus with two glass tubes, one closed at the upper end and the other open, connected through flexible tubing and mounted parallel to each other on metal support rods. The movable tube arrangement allows one tube to be raised or lowered and securely fixed at the required position, making pressure changes easy to establish during experiments. A stable metal H-shaped base supports the vertical assembly for reliable operation. The apparatus is suitable for physics laboratories, universities, colleges, research facilities, and institutional laboratory procurement.
Product Specification
The Precision Boyle’s Law Apparatus is a laboratory setup developed for investigating Boyle’s law and the elastic behaviour of gases by observing how the volume of a confined gas changes with applied pressure. Its vertical tube arrangement provides a clear and practical method for producing different pressure conditions and recording corresponding gas-volume observations across a useful experimental range.
The apparatus incorporates two glass tubes, with one closed at the upper end to confine the gas and the second remaining open. Both tubes are connected through flexible tubing and arranged parallel to each other on rigid metal support rods. This configuration allows changes in liquid level and gas-column dimensions to be observed directly as the relative position of the tubes is altered.
One of the tubes can be raised or lowered along the support structure and locked securely at the selected position. This adjustable arrangement provides convenient control over the experimental pressure difference while maintaining the tubes in a stable vertical orientation. Accurate positioning and clear visibility of the glass columns contribute to reliable pressure-volume observations during repeated experiments.
Micro Technologies supplies the Precision Boyle’s Law Apparatus with a sturdy metal H-shaped base that provides dependable support for the tall vertical assembly. Attention to glass quality, tube alignment, flexible connections, locking action, and structural stability contributes to long-term laboratory usability. The predominantly mechanical configuration also keeps routine maintenance straightforward.
The apparatus can be used for investigating Boyle’s law, gas elasticity, pressure-volume relationships, confined gas behaviour, and related gas-law principles. It is supplied without mercury, allowing laboratories to manage the working fluid separately in accordance with their experimental procedures and applicable safety requirements. Its adjustable construction and robust support system make it a practical choice for routine laboratory use and institutional procurement.
Features
- Precision apparatus for Boyle’s law investigations
- Two clear glass tubes for direct experimental observation
- One closed-end and one open-end tube configuration
- Flexible tubing connects the two glass columns
- Parallel mounting on rigid vertical metal rods
- Adjustable tube can be raised or lowered as required
- Locking mechanism maintains the selected tube position
- Wide practical range of pressure-volume observations
- Stable metal H-shaped base for reliable support
- Supplied without mercury
Benefits
- Supports accurate investigation of gas pressure-volume relationships
- Adjustable tube position provides flexible pressure control
- Clear glass construction allows convenient observation of gas and liquid columns
- Stable H-shaped base improves apparatus positioning during measurements
- Locking arrangement helps maintain consistent experimental conditions
- Reusable mechanical construction provides long-term laboratory value
- Suitable for routine and bulk institutional procurement
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Precision Boyle’s Law Apparatus |
| Internal Model No. | MT-BLA-02 |
| Product Type | Gas Pressure-Volume Apparatus |
| Number of Glass Tubes | 2 |
| Tube Configuration | One closed-end and one open-end |
| Connection | Flexible tubing |
| Support Structure | Parallel vertical metal rods |
| Tube Adjustment | Vertical sliding arrangement |
| Position Locking | Mechanical locking provision |
| Base Type | Metal H-shaped base |
| Operating Principle | Boyle’s law / pressure-volume relationship |
| Measurement Range | Suitable for a wide range of laboratory observations |
| Accuracy / Tolerance | Laboratory-grade experimental accuracy |
| Calibration Standard | Measurement components verified as applicable |
| Working Fluid | User-selected according to experimental procedure |
| Mercury | Not supplied |
| Usage / Application | Gas pressure, volume and Boyle’s law experiments |
| Compliance Standard | Laboratory-grade manufacturing and mechanical quality |
Available Variants
- Standard Precision Boyle’s Law Apparatus
- Boyle’s Law Apparatus with Adjustable Tubes
- Boyle’s Law Apparatus with H-Shaped Base
- Replacement Glass Tube Set
- Replacement Flexible Tubing Set
- Custom configuration for bulk laboratory requirements
SKU System
- MT-PBLA-STD – Standard Precision Boyle’s Law Apparatus
- MT-PBLA-AT – Adjustable Tube Configuration
- MT-PBLA-HB – H-Base Configuration
- MT-PBLA-GT – Replacement Glass Tube Set
- MT-PBLA-CUS – Customized Configuration
FAQs
What is Precision Boyle’s Law Apparatus used for?
The apparatus is used to investigate the relationship between pressure and volume of a confined gas. It allows different pressure conditions to be established while corresponding changes in gas volume are observed.
How is this model different from a basic Boyle’s Law apparatus?
This configuration incorporates parallel glass tubes with an adjustable tube that can be raised, lowered, and locked at different positions. This provides convenient control over pressure conditions during experimental observations.
Why is one glass tube closed at the top?
The closed tube confines a column of gas whose volume changes as the pressure acting on it changes. Measuring these variations allows the pressure-volume relationship to be investigated experimentally.
How is pressure varied during the experiment?
One of the connected tubes can be moved vertically along the metal support rods. Raising or lowering the tube changes the liquid-level difference and therefore changes the pressure acting on the confined gas.
What type of base is provided?
The apparatus is supported on a stable metal H-shaped base. This configuration provides a broad supporting footprint for the vertical rods and glass tube assembly.
Is mercury supplied with the apparatus?
No. Mercury is not supplied with the apparatus. Any working fluid should be selected and handled according to the intended experimental method, apparatus compatibility, and applicable laboratory safety procedures.
Does the apparatus require calibration?
The basic mechanical assembly does not require electronic calibration. Relevant scales or measuring components should be periodically checked where quantitative accuracy or measurement traceability is required.
How durable is the apparatus?
The metal stand and H-shaped base provide durable structural support for repeated use. Glass tubes and flexible connections require appropriate handling and regular inspection to maintain reliable operation.
What maintenance is required?
Glass tubes should be kept clean and checked for cracks or chips before use. Flexible tubing should be inspected for leakage, ageing, or deterioration, while locking and sliding components should operate smoothly.
Can replacement glass tubes be supplied?
Yes. Compatible replacement glass tubes, flexible tubing, and other components can be supplied according to the apparatus configuration and procurement requirements.
Can Precision Boyle’s Law Apparatus be ordered in bulk?
Yes. Bulk quantities can be supplied for universities, colleges, physics laboratories, research facilities, laboratory distributors, and institutional procurement projects.
How is the apparatus packed for transportation?
Glass components are securely protected against impact, while the base, support rods, tubing, and smaller parts are packed to minimize movement during transportation. Bulk and export packaging can also be arranged.
Why Choose Our Products
- Precision construction for reliable pressure-volume investigations
- Stable H-shaped metal base with rigid vertical support
- Quality-checked glass tubes, connections, and adjustment components
- Durable reusable construction for dependable long-term operation
- Bulk supply support for laboratories, institutions, and distributors
Call to Action
Looking for a Precision Boyle’s Law Apparatus for gas pressure-volume experiments or institutional procurement? Contact Micro Technologies for competitive quotations, bulk orders, distributor inquiries, replacement components, and customized laboratory requirements. Share your required quantity and specifications to receive suitable pricing and delivery details.
