Portable LCD Video Microscope (MT-UM038)
Product Specification Sheet

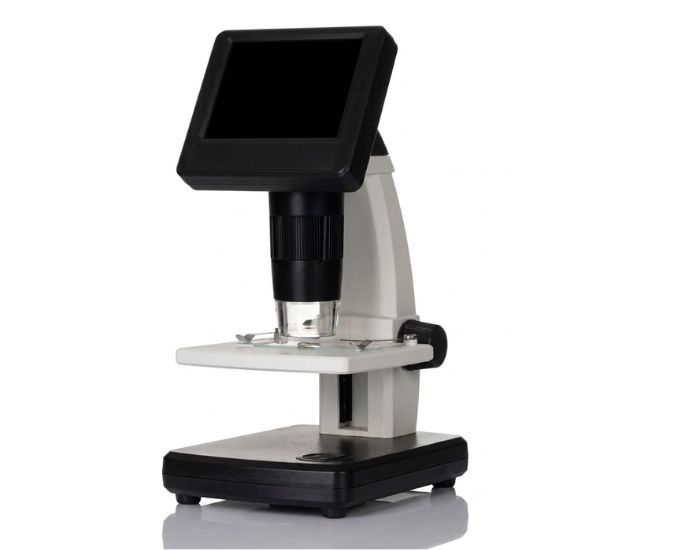

Portable LCD Video Microscope (MT-UM038)
Model Number: MTDM-03
The Portable LCD Video Microscope (MT-UM038) is a compact digital inspection microscope featuring a 3.5-inch LCD display, high-resolution image capture, video recording, adjustable LED illumination, and up to 1000X magnification. Manufactured by Micro Technologies, it is ideal for laboratories, educational institutions, electronics inspection, PCB analysis, jewelry inspection, industrial quality control, biological observation, and research applications.
Product Specification
The Portable LCD Video Microscope (MT-UM038) is an advanced digital inspection system developed for professionals who require real-time microscopic observation without the need for a computer. Manufactured by Micro Technologies, this compact microscope integrates a high-resolution digital camera with a built-in LCD display, allowing users to capture, analyze, and record images and videos directly from the instrument.
Equipped with a 3.5-inch color LCD screen, the microscope provides clear real-time viewing while eliminating dependence on external monitors during routine inspection. The integrated 5-megapixel CMOS sensor captures sharp images with true color reproduction and supports still image resolutions up to 12 Megapixels through interpolation for detailed documentation.
The microscope offers manual focusing from 10 mm to 50 mm, enabling precise inspection of electronic components, biological specimens, textiles, jewelry, coins, stamps, plants, insects, printed circuit boards, mechanical parts, and industrial products. With magnification up to 1000X, users can observe extremely fine surface details for quality inspection and analytical applications.
High-brightness 8 adjustable LED lights provide uniform illumination of the specimen, ensuring excellent image quality under varying lighting conditions. Images and videos can be stored directly on a Micro SD card (up to 32 GB SDHC) for convenient documentation and later analysis.
For larger presentations or demonstrations, the microscope supports TV output, allowing connection to compatible monitors or televisions. Measurement software enables dimensional analysis and image annotation, making the system suitable for laboratories, educational institutions, industrial inspection, forensic analysis, and research facilities.
Powered by a rechargeable lithium battery or external USB adapter, the MT-UM038 provides true portability for both laboratory and field applications. The compact design, lightweight construction, and multilingual software interface make it suitable for a wide variety of professional users.
Manufactured by Micro Technologies, every Portable LCD Video Microscope undergoes strict quality inspection for imaging performance, optical accuracy, electronic reliability, and long-term operational stability before dispatch.
Features
- Portable LCD digital microscope
- 3.5-inch TFT LCD display
- 5 MP true CMOS image sensor
- Still image resolution up to 12 MP
- Video recording function
- Manual focus adjustment
- Focus range: 10 mm–50 mm
- Magnification up to 1000X
- 8 adjustable LED illumination system
- Brightness adjustment control
- TV output for external display
- Micro SD card support up to 32 GB
- Rechargeable lithium battery
- USB power operation
- Measurement software included
- Lightweight portable design
- CE, FCC & RoHS compliant
Benefits
- Standalone operation without a computer
- High-resolution digital image capture
- Large LCD screen for comfortable viewing
- Portable and lightweight
- Ideal for laboratory and field inspection
- Easy image and video storage
- Adjustable illumination for clear observation
- Supports dimensional measurement
- Long battery operation
- Suitable for education, research, and industrial inspection
- User-friendly interface
- Reliable long-term performance
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Portable LCD Video Microscope |
| Model | MT-UM038 |
| Image Sensor | 5 MP CMOS (True Resolution) |
| LCD Display | 3.5-inch TFT LCD |
| Still Image Resolution | 12 MP, 9 MP, 5 MP, 3 MP, 1.3 MP, VGA |
| Video Resolution | 12 MP, 9 MP, 5 MP, 3 MP, 1.3 MP, VGA |
| Focus Type | Manual |
| Focus Range | 10 mm – 50 mm |
| Frame Rate | Up to 30 fps (Under 600 Lux) |
| Magnification | Up to 1000X |
| Display Output | TV Output |
| Storage | Micro SD Card up to 32 GB SDHC |
| Illumination | 8 Adjustable LEDs |
| Battery | Rechargeable Lithium Battery |
| Power Supply | USB Adapter / USB Port |
| Measurement | Portable Capture with Measurement Software |
| Supported Languages | English, German, Spanish, French, Russian |
| Product Dimensions | 149 × 104 × 227 mm |
| Weight | Approx. 1100 g |
| Certifications | CE, FCC, RoHS |
Available Models
| Model | Display | Image Sensor | Magnification |
|---|---|---|---|
| MT-UM038 | 3.5" LCD | 5 MP CMOS | Up to 1000X |
Optional Accessories
- Adjustable microscope stand
- HDMI/TV connection cable
- Micro SD memory card
- USB power adapter
- Carrying case
- Measurement software
- Calibration ruler
- External LED lighting
- Spare rechargeable battery
- Calibration certificate
SKU System
- MT-UM038
FAQs
What is the MT-UM038 Portable LCD Video Microscope used for?
The MT-UM038 is used for laboratory observation, PCB inspection, electronics repair, jewelry inspection, biological specimen viewing, industrial quality control, forensic science, education, and research applications.
Does the microscope require a computer?
No. The microscope features a built-in 3.5-inch LCD display, allowing standalone operation without a computer.
What is the maximum magnification?
The MT-UM038 provides magnification up to 1000X, making it suitable for observing fine surface details.
Can images and videos be stored?
Yes. Images and videos can be saved directly to a Micro SD card (up to 32 GB SDHC).
Does the microscope have adjustable lighting?
Yes. It includes 8 adjustable LED lights with manual brightness control for optimal illumination.
Can the microscope be connected to a television?
Yes. The microscope includes a TV output, allowing real-time viewing on compatible external displays.
Where is the MT-UM038 commonly used?
It is widely used in laboratories, schools, universities, electronics manufacturing, industrial inspection, jewelry evaluation, forensic laboratories, research institutes, and quality control departments.
Can the MT-UM038 be supplied in bulk?
Yes. Micro Technologies supplies the MT-UM038 for educational institutions, industrial inspection projects, OEM requirements, government tenders, distributors, exporters, and institutional procurement.
Why Choose Our Products
- High-resolution LCD digital imaging
- Standalone operation without PC
- Large 3.5-inch display
- Up to 1000X magnification
- Adjustable LED illumination
- Portable rechargeable design
- Easy image and video recording
- OEM manufacturing support
- Competitive B2B pricing
- Strict quality inspection
- Reliable technical assistance
- Excellent after-sales support
Call to Action
Choose the Portable LCD Video Microscope (MT-UM038) from Micro Technologies for high-resolution digital inspection, precise observation, and reliable documentation across laboratory, educational, industrial, and research applications. Contact us today for pricing, OEM manufacturing, government tenders, distributor inquiries, or a customized quotation.
