Digital LCD Microscope with 3.6" TFT Display & 2.0MP Camera
Product Specification Sheet

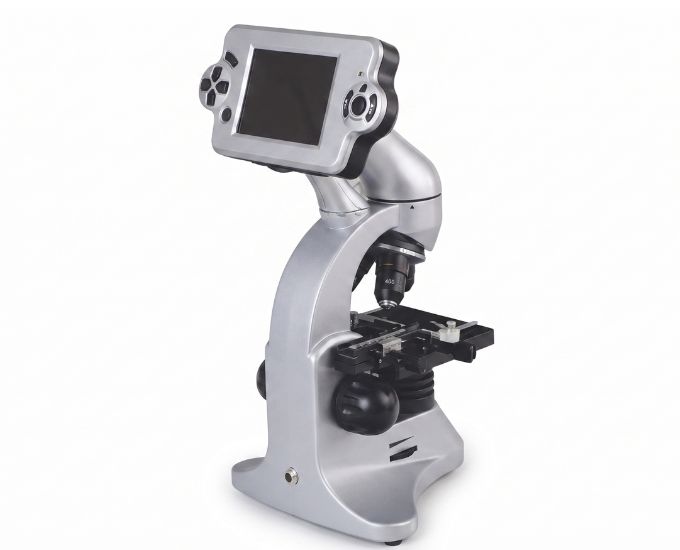

Digital LCD Microscope with 3.6" TFT Display & 2.0MP Camera
Model Number: MTM-028
The Digital LCD Microscope with 3.6-inch TFT Display from Micro Technologies is a modern laboratory instrument designed for education, biological research, quality inspection, and scientific analysis. Equipped with a 2.0MP CMOS camera, integrated LCD monitor, USB connectivity, and SD card support, it enables real-time image viewing, capture, and storage without requiring continuous computer connection. Its high-quality optics, dual LED illumination, and user-friendly design make it an ideal solution for schools, colleges, universities, laboratories, and research institutions.
Product Specification
The Digital LCD Microscope with 3.6" TFT Display & 2.0MP Camera combines precision optical microscopy with advanced digital imaging technology to provide a complete observation and documentation solution. Designed for educational laboratories, biological research, quality control, and industrial inspection, it delivers clear microscopic images while allowing users to capture, store, and review observations conveniently.
The microscope features a built-in 3.6-inch TFT LCD display that provides real-time specimen viewing without requiring an external monitor. Its integrated 2.0MP CMOS camera captures images at a maximum resolution of 1600 × 1200 pixels, making it suitable for laboratory documentation, classroom demonstrations, and research analysis.
Supporting USB 2.0 Mini connectivity and an SD card slot, the microscope enables convenient image transfer and storage for future reference. A digital focal variation of 8X further enhances image observation during microscopic analysis.
The optical system includes a WF10X eyepiece with 4X, 10X, and 40X(S) objective lenses, delivering an overall magnification range of 40X–400X. The 45° inclined, 360° rotatable monocular head provides comfortable viewing for extended laboratory sessions.
Dual top and bottom LED illumination ensures bright, uniform lighting for both transparent and opaque specimens. The microscope also features a 90 × 90 mm working stage with a movable slide holder, a 0.65 condenser with pull-plate light bar, and a 13 mm coarse focusing mechanism, enabling precise specimen positioning and clear image adjustment.
Manufactured using premium laboratory-grade materials, this digital microscope offers durability, accuracy, and dependable long-term performance. Micro Technologies supplies this model to schools, colleges, universities, hospitals, laboratories, research organizations, pharmaceutical companies, and industrial quality control facilities requiring advanced digital microscopy solutions.
Features
- Built-in 3.6-inch TFT LCD display
- 2.0MP CMOS digital camera
- Image resolution up to 1600 × 1200 pixels
- USB 2.0 Mini connectivity
- SD card slot for image storage
- Digital focal variation up to 8X
- 40X–400X total magnification
- WF10X eyepiece with 4X, 10X & 40X(S) objectives
- 45° inclined, 360° rotatable monocular head
- Dual top and bottom LED illumination
- 90 × 90 mm working stage with movable slide holder
- 0.65 condenser with pull-plate light bar
- 13 mm coarse focusing adjustment
Benefits
- Displays live microscopic images on an integrated LCD screen
- Captures high-quality images for documentation and analysis
- Stores images directly using an SD card
- Supports computer connectivity through USB
- Bright LED illumination improves specimen visibility
- Comfortable viewing for extended laboratory sessions
- Ideal for education, research, and industrial inspection
- Durable construction for long-term laboratory use
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Digital LCD Microscope with 3.6" TFT Display & 2.0MP Camera |
| Model No. | MTM-028 |
| Product Type | Digital Biological Microscope |
| Camera | 2.0MP CMOS Sensor |
| Camera Resolution | 1600 × 1200 Pixels |
| Display | 3.6-inch TFT LCD |
| Display Resolution | 960 × 240 |
| Internal Memory | 32 MB |
| External Storage | SD Card Slot |
| USB Interface | USB 2.0 Mini |
| Digital Zoom | 8X |
| Total Magnification | 40X–400X |
| Eyepiece | WF10X |
| Objectives | 4X, 10X, 40X(S) |
| Viewing Head | Monocular, 45° Inclined, 360° Rotatable |
| Working Distance | 27 mm |
| Working Stage | 90 × 90 mm with Movable Slide Holder |
| Condenser | 0.65 Condenser with Pull-Plate Light Bar |
| Coarse Adjustment Range | 13 mm |
| Illumination | Top & Bottom LED Illumination |
| Power Supply | DC 5V / 1A |
| Usage/Application | Schools, Colleges, Biology Laboratories, Research Institutes, Industrial Inspection |
| Compliance Standard | Manufactured as per Standard Laboratory Equipment Practices |
Available Variants
- LCD Digital Microscope
- USB Digital Biological Microscope
- Educational Digital Microscope
- Research Digital Microscope
- Industrial Inspection Digital Microscope
FAQs
What is the camera resolution of this microscope?
The microscope features a 2.0MP CMOS camera capable of capturing images at a maximum resolution of 1600 × 1200 pixels.
Can images be stored without a computer?
Yes. The microscope includes an SD card slot that allows captured images to be stored directly without requiring continuous computer connectivity.
Does the microscope have a built-in display?
Yes. It is equipped with a 3.6-inch TFT LCD display that provides live viewing of specimens in real time.
What magnification range does this microscope offer?
The microscope provides a total magnification range of 40X–400X using a WF10X eyepiece and 4X, 10X, and 40X(S) objective lenses.
Is this microscope suitable for educational and research laboratories?
Yes. It is ideal for schools, colleges, universities, biology laboratories, research institutes, quality control laboratories, and industrial inspection.
Can institutions purchase this microscope in bulk?
Yes. We offer bulk supply for educational institutions, laboratories, distributors, OEM partners, and government organizations.
