Magnetic Field Demonstrator with Cylindrical Magnets
Product Specification Sheet
Magnetic Field Demonstrator with Cylindrical Magnets
Model Number: MTME-14

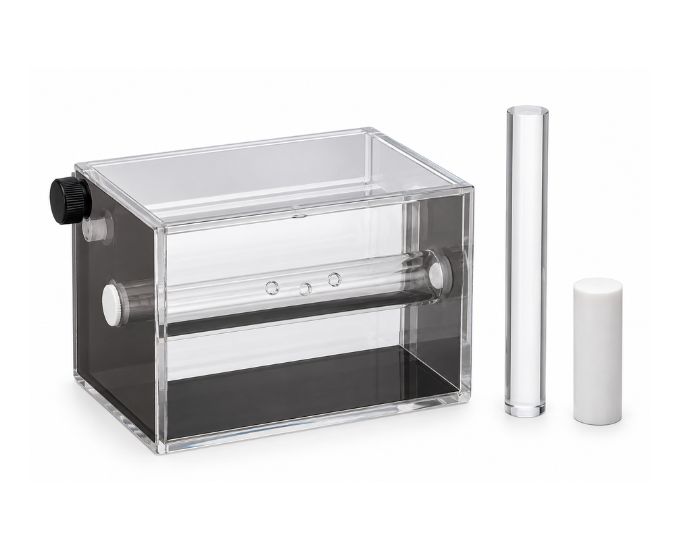

The Magnetic Field Demonstrator is designed for clear three-dimensional visualization of magnetic field patterns. Micro Technologies supplies the apparatus as a closed transparent box containing iron filings and a transparent central tube. One or more cylindrical magnets can be inserted into the central tube, causing the enclosed iron filings to align along the magnetic field lines in all directions. The sealed arrangement provides a clean, reusable, and highly visual method for investigating magnetic-field distribution around cylindrical permanent magnets.
Product Specification
The Magnetic Field Demonstrator is a transparent experimental apparatus developed for observing the three-dimensional magnetic field produced by cylindrical permanent magnets. Unlike conventional flat magnetic-field experiments, the enclosed arrangement allows the field distribution to be observed around the magnet in multiple directions.
The apparatus consists of a closed transparent box containing iron filings. The filings remain permanently enclosed inside the chamber, providing a clean and convenient alternative to experiments requiring loose iron filings.
A transparent tube passes through the center of the box. This tube provides a defined position for inserting one or more cylindrical magnets while keeping them separated from the iron filings.
When a cylindrical magnet is inserted into the central tube, the iron filings respond to its magnetic field. The filings become oriented along the magnetic field lines, creating a visible representation of the field surrounding the magnet.
Micro Technologies supplies the apparatus for experiments using one or more cylindrical magnets. Changing the number, position, or orientation of the magnets allows different magnetic-field configurations to be investigated and compared.
A major advantage of the apparatus is its ability to demonstrate magnetic-field behaviour in three dimensions. Because the iron filings surround the central tube, field patterns can be observed around the magnetic source rather than only on a flat surface.
The sealed transparent construction keeps the iron filings contained during use and storage. This minimizes cleanup and allows the demonstrator to be used repeatedly with minimal preparation.
The Magnetic Field Demonstrator provides a simple and effective solution for experiments involving permanent magnets, magnetic poles, magnetic-field distribution, field interaction, and three-dimensional magnetic-field visualization.
Features
- Closed transparent chamber
- Iron filings enclosed inside
- Transparent central tube
- Designed for cylindrical magnets
- One or more magnets can be inserted
- Demonstrates magnetic field lines
- Three-dimensional field visualization
- Allows different magnet arrangements
- Shows magnetic-field distribution around a magnet
- Clean and sealed construction
- No loose iron filings required
- Reusable experimental apparatus
- No electrical power required
Benefits
- Provides clear three-dimensional magnetic-field visualization
- Enclosed iron filings minimize mess and cleanup
- Central tube keeps magnets correctly positioned
- Allows single and multiple magnet configurations
- Makes otherwise invisible magnetic-field patterns observable
- Transparent construction provides easy viewing from different directions
- Requires minimal experimental preparation
- Reusable design reduces consumable requirements
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Magnetic Field Demonstrator |
| Internal Model No. | MT-41275 |
| Product Type | 3D Magnetic Field Visualization Apparatus |
| Chamber Type | Closed Transparent Box |
| Field Indicator | Iron Filings |
| Iron Filings | Enclosed |
| Central Section | Transparent Tube |
| Magnet Type | Cylindrical Magnets |
| Magnet Arrangement | One or More Magnets |
| Field Visualization | Three-Dimensional |
| Power Requirement | None |
| Primary Application | Magnetic Field Line Visualization |
| Usage / Application | Magnetism and magnetic-field experiments |
Available Variants
- MT-41275 – Standard Magnetic Field Demonstrator
- Cylindrical Magnet Field Demonstrator
- 3D Magnetic Field Visualization Apparatus
- Iron Filing Magnetic Field Demonstrator
- Customized configurations for bulk requirements
SKU System
- MT-MFD-3D – 3D Magnetic Field Demonstrator
- MT-MFD-CM – Cylindrical Magnet Configuration
- MT-MFD-IF – Iron Filing Configuration
- MT-MFD-TUBE – Central Tube Configuration
- MT-MFD-CUS – Customized Configuration
FAQs
What is the Magnetic Field Demonstrator used for?
It is used to visualize the magnetic field lines and field distribution produced by cylindrical permanent magnets.
What does the transparent box contain?
The closed transparent box contains iron filings that respond to the magnetic field produced by the inserted magnets.
What is the purpose of the central transparent tube?
The tube allows cylindrical magnets to be inserted through the center of the apparatus while keeping them separated from the enclosed iron filings.
What type of magnets are used with this apparatus?
The demonstrator is designed for use with suitable cylindrical magnets.
Can more than one magnet be inserted?
Yes. One or more cylindrical magnets can be inserted into the central tube to investigate different magnetic-field configurations.
How are the magnetic field lines displayed?
The iron filings respond to the applied magnetic field and align along the field distribution, making the magnetic-field pattern visible.
Does it show magnetic fields in three dimensions?
Yes. The iron filings surround the central tube, allowing the magnetic field to be investigated in three dimensions.
Can different magnet orientations be investigated?
Yes. Changing the position and orientation of compatible cylindrical magnets allows different field configurations to be compared.
Are loose iron filings required?
No. The filings are already contained inside the closed transparent chamber.
Does the apparatus require electricity?
No. It operates using permanent cylindrical magnets and requires no external electrical supply.
Is the Magnetic Field Demonstrator reusable?
Yes. Its enclosed construction allows repeated magnetic-field experiments with minimal preparation and cleanup.
Can Magnetic Field Demonstrators be supplied in bulk?
Yes. Micro Technologies can supply these apparatus in bulk for laboratories, universities, colleges, research facilities, scientific equipment distributors, and institutional procurement.
