Magnetic Field Chamber Model
Product Specification Sheet
Magnetic Field Chamber Model
Model Number: MTME-13

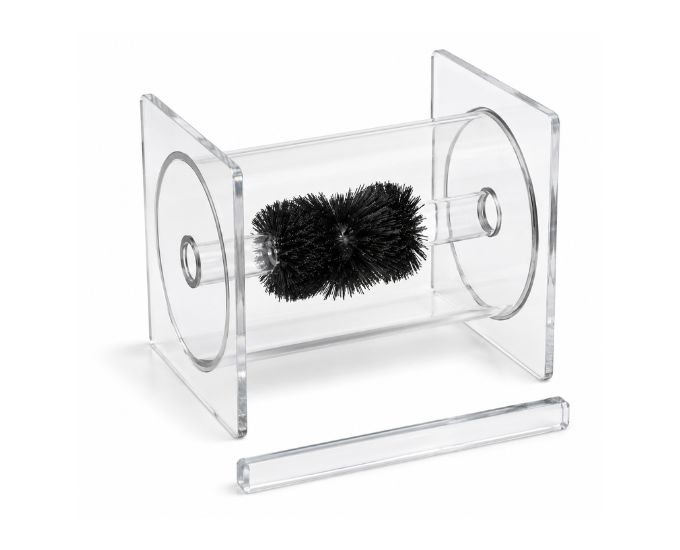

The Magnetic Field Chamber Model is a transparent acrylic apparatus designed for clear visualization of magnetic field patterns using enclosed iron filings. Micro Technologies supplies the chamber with an internal tunnel that allows a magnet to be inserted into the model, enabling the surrounding magnetic field to be observed directly. Suitable bar magnets and horseshoe magnets can be positioned within the chamber to investigate and compare their characteristic magnetic field patterns. The sealed design keeps the iron filings contained, providing a clean, reusable, and convenient setup for magnetism experiments.
Product Specification
The Magnetic Field Chamber Model is a transparent magnetic-field visualization apparatus designed to demonstrate the characteristic field patterns produced around permanent magnets. It provides an enclosed and reusable alternative to conventional loose iron-filing experiments.
The chamber is manufactured from transparent acrylic and contains iron filings within the enclosed body. The transparent construction provides clear visibility of the filings as they respond to an applied magnetic field.
A key feature of the apparatus is its internal tunnel, which allows a suitable magnet to be inserted directly into the chamber. Positioning the magnetic source within the model enables the iron filings surrounding it to respond to the magnetic field and form a visible three-dimensional representation of the field distribution.
Micro Technologies supplies the Magnetic Field Chamber Model for use with compatible bar magnets and horseshoe magnets. By changing the type or orientation of the inserted magnet, different magnetic-field patterns can be observed and compared.
When a bar magnet is inserted, the iron filings arrange themselves according to the magnetic field extending between and around its north and south poles. A horseshoe magnet produces a different field distribution, particularly in the region between its closely spaced poles.
The enclosed chamber helps keep the iron filings contained throughout the experiment. This minimizes preparation and cleanup while allowing the apparatus to be reused repeatedly.
The model can also be positioned horizontally or vertically depending on the magnet arrangement and the field pattern being investigated. This provides additional flexibility for observing magnetic-field behaviour from different orientations.
With its transparent acrylic construction, enclosed iron filings, internal magnet tunnel, and compatibility with different magnet types, the Magnetic Field Chamber Model provides an effective solution for visual magnetic-field investigations.
Features
- Transparent acrylic chamber
- Enclosed iron filings
- Internal tunnel for magnet insertion
- Visualizes magnetic field patterns
- Suitable for bar magnets
- Suitable for horseshoe magnets
- Supports horizontal positioning
- Supports vertical positioning
- Allows comparison of different magnetic fields
- Clean enclosed construction
- No loose iron filings required
- Reusable experimental apparatus
- No electrical power required
Benefits
- Provides clear visualization of magnetic field patterns
- Internal tunnel positions the magnet within the field medium
- Allows different permanent magnet shapes to be investigated
- Transparent acrylic improves visibility from different directions
- Enclosed iron filings reduce mess and cleanup
- Horizontal and vertical positioning increases experimental flexibility
- Reusable construction reduces the need for consumable filings
- Simple operation requires no external power source
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Magnetic Field Chamber Model |
| Internal Model No. | MT-41272 |
| Product Type | Magnetic Field Visualization Model |
| Chamber Material | Transparent Acrylic |
| Field Indicator | Iron Filings |
| Iron Filings | Enclosed |
| Magnet Access | Internal Tunnel |
| Compatible Magnets | Bar Magnet & Horseshoe Magnet |
| Positioning | Horizontal or Vertical |
| Field Observation | Visual |
| Power Requirement | None |
| Primary Application | Magnetic Field Pattern Visualization |
| Usage / Application | Magnetism and magnetic-field experiments |
Available Variants
- MT-41272 – Standard Magnetic Field Chamber Model
- Magnetic Field Chamber for Bar Magnet
- Magnetic Field Chamber for Horseshoe Magnet
- Acrylic Iron Filing Magnetic Field Model
- Customized configurations for bulk requirements
SKU System
- MT-MFCM-STD – Standard Magnetic Field Chamber Model
- MT-MFCM-ACR – Acrylic Chamber Configuration
- MT-MFCM-BM – Bar Magnet Configuration
- MT-MFCM-HM – Horseshoe Magnet Configuration
- MT-MFCM-CUS – Customized Configuration
FAQs
What is a Magnetic Field Chamber Model used for?
It is used to visualize magnetic field patterns around permanent magnets using iron filings enclosed inside a transparent acrylic chamber.
What material is the chamber made from?
The chamber is manufactured from transparent acrylic for clear observation of the internal magnetic field patterns.
What is contained inside the chamber?
The chamber contains iron filings that respond to the magnetic field of an inserted magnet.
What is the purpose of the internal tunnel?
The internal tunnel allows a suitable magnet to be inserted into the chamber so that the surrounding iron filings can reveal its magnetic field pattern.
Can a bar magnet be used with the chamber?
Yes. A suitable bar magnet can be inserted to investigate its characteristic magnetic field pattern.
Can a horseshoe magnet be used?
Yes. Compatible horseshoe magnets can also be used to observe the magnetic field around and between their poles.
Can different magnet shapes be compared?
Yes. The chamber allows the field patterns produced by different compatible magnets to be observed and compared.
Can the model be positioned horizontally?
Yes. The chamber can be positioned horizontally for suitable magnetic-field investigations.
Can it also be positioned vertically?
Yes. Vertical positioning can also be used depending on the magnet and experimental arrangement.
Are loose iron filings required?
No. The iron filings are contained within the chamber, eliminating the need to handle loose filings during normal operation.
Does the apparatus require electricity?
No. It operates through the magnetic field of a permanent magnet and requires no electrical power.
Can Magnetic Field Chamber Models be supplied in bulk?
Yes. Micro Technologies can supply these models in bulk for physics laboratories, universities, colleges, research facilities, scientific equipment distributors, and institutional procurement.
Why Choose Our Products
- Transparent acrylic chamber
- Enclosed iron filings
- Internal tunnel for easy magnet insertion
- Compatible with bar and horseshoe magnets
- Horizontal and vertical positioning
- Clean and reusable field visualization
- No electrical power required
- Bulk supply available
Call to Action
Looking for a Magnetic Field Chamber Model for clear visualization of magnetic field patterns? Contact Micro Technologies for competitive quotations, bulk procurement, distributor supply, institutional orders, and complete magnetism laboratory equipment requirements.
