Laboratory Lens Set of Six
Product Specification Sheet
Laboratory Lens Set of Six
Model Number: MTO-04
The Laboratory Lens Set of Six is a complete collection of glass lenses used for experiments involving refraction, image formation, focal behaviour, convergence, divergence, and geometrical optics. Micro Technologies supplies the set with six different lens profiles: double convex, plano-convex, concavo-convex, convexo-concave, plano-concave, and double concave. Each lens provides a different optical geometry, allowing comparative investigation of how surface curvature influences light rays. The complete set is supplied in a protective wooden storage box that keeps the lenses organized between experiments and reduces the risk of accidental damage. Standard lens diameters of approximately 38 mm and 50 mm are available, making the set suitable for physics laboratories, optical experiments, research facilities, universities, colleges, and institutional procurement.
Product Specification
The Laboratory Lens Set of Six provides a versatile collection of optical lenses for investigating the behaviour of light through different curved glass surfaces. The set combines six commonly required lens profiles in one organized kit, making it convenient for laboratories that perform multiple refraction, focal length, image formation, and geometrical optics experiments.
The set contains a double convex lens, plano-convex lens, concavo-convex lens, convexo-concave lens, plano-concave lens, and double concave lens. Having different surface combinations allows users to compare converging and diverging optical behaviour without requiring separate procurement of individual lens types.
Micro Technologies supplies the Laboratory Lens Set of Six in two standard diameter options: approximately 38 mm and 50 mm. This choice allows laboratories to select a size compatible with their existing optical holders, benches, ray boxes, and experimental arrangements. The circular glass lenses can be incorporated into a variety of setups involving parallel rays, point sources, screens, objects, and other optical accessories.
Convex configurations can be used to investigate convergence, focal points, magnification, and real or virtual image formation. Concave configurations support investigations involving diverging rays and virtual image behaviour. Meniscus and plano lenses broaden the range of experiments by providing different combinations of curved and flat optical surfaces.

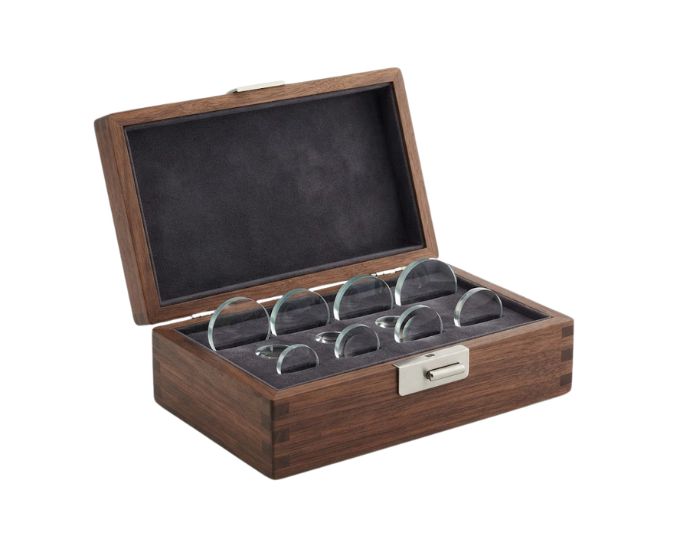

The complete lens collection is supplied in a wooden storage box. Individual compartments help keep the lenses separated and organized, providing additional protection against scratching, impact, and unnecessary surface contact during storage.
With multiple lens geometries, two diameter options, reusable glass construction, and protective storage, the Laboratory Lens Set of Six provides a practical long-term solution for laboratories requiring a comprehensive selection of basic optical lenses.
Features
- Complete set of six different glass lenses
- Includes both converging and diverging lens profiles
- Double convex lens included
- Plano-convex lens included
- Concavo-convex lens included
- Convexo-concave lens included
- Plano-concave lens included
- Double concave lens included
- Available in approximately 38 mm and 50 mm diameters
- Supplied in a protective wooden storage box
Benefits
- Six lens geometries support a broad range of optics experiments
- Allows convenient comparison of converging and diverging lenses
- Two diameter options improve compatibility with different setups
- Wooden box protects and organizes lenses during storage
- Complete set reduces the need to purchase individual lenses separately
- Reusable glass optics provide good long-term laboratory value
- Convenient for bulk procurement and complete optics kit assembly
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Laboratory Lens Set of Six |
| Internal Model Series | MT-30060 |
| Product Type | Optical Glass Lens Set |
| Number of Lenses | 6 |
| Material | Optical glass |
| Shape | Circular |
| Lens Types | Six different profiles |
| Available Diameter | 38 mm / 50 mm |
| Storage | Wooden box |
| Optical Behaviour | Converging and diverging |
| Accuracy / Tolerance | Laboratory-grade optical configuration |
| Calibration Standard | Not normally required |
| Stopper Type | Not applicable |
| Color | Clear glass |
| Usage / Application | Refraction, focal length and image formation experiments |
| Compliance Standard | Laboratory-grade optical and manufacturing quality |
Available Variants
| Internal Model No. | Lens Diameter | Set |
|---|---|---|
| MT-30060/1 | 38 mm | 6 Lenses |
| MT-30060/2 | 50 mm | 6 Lenses |
Lens Types Included
- Double Convex Lens
- Plano-Convex Lens
- Concavo-Convex Lens
- Convexo-Concave Lens
- Plano-Concave Lens
- Double Concave Lens
SKU System
- MT-LS6-38 – Six Lens Set, 38 mm
- MT-LS6-50 – Six Lens Set, 50 mm
- MT-LS6-38WB – 38 mm Set with Wooden Box
- MT-LS6-50WB – 50 mm Set with Wooden Box
- MT-LS6-CUS – Customized Lens Set
FAQs
What lenses are included in the set?
The set contains six glass lenses: double convex, plano-convex, concavo-convex, convexo-concave, plano-concave, and double concave. Together, these provide several converging and diverging optical configurations.
What lens diameters are available?
The standard set is available with approximately 38 mm or 50 mm diameter lenses. The appropriate option can be selected according to the lens holder or optical setup being used.
Are the lenses made of glass?
Yes. The lenses are manufactured from glass and formed into different optical profiles. Proper handling and cleaning help preserve their surfaces during repeated laboratory use.
What experiments can be performed with this lens set?
The lenses can support experiments involving refraction, convergence, divergence, focal length, image formation, magnification, ray tracing, and geometrical optics.
Is a storage box supplied with the lenses?
Yes. The complete set is supplied in a wooden box that keeps the six lenses organized and provides protection during storage and transportation.
What is the difference between convex and concave lenses?
Convex lenses generally converge suitable incoming light rays, while concave lenses cause rays to diverge. Their different optical behaviour makes them useful for comparative optics experiments.
Do the lenses require calibration?
The lenses themselves do not normally require routine calibration. For quantitative focal-length experiments, suitable measuring equipment and correct optical alignment should be used.
How should the lenses be maintained?
Handle lenses by their edges whenever possible and avoid touching optical surfaces directly. Dust and fingerprints should be removed using appropriate lens-cleaning materials rather than abrasive cloths.
Can individual replacement lenses be supplied?
Replacement lens types may be supplied according to the required diameter, profile, and availability. Buyers should specify the required lens geometry and size when requesting replacements.
Can the Lens Set of Six be ordered in bulk?
Yes. Bulk quantities can be supplied for physics laboratories, universities, colleges, research facilities, optics kits, scientific equipment distributors, and institutional procurement.
Can custom lens sizes be supplied?
Custom diameters or lens combinations may be considered depending on optical specifications, quantity, and manufacturing feasibility.
How are the lenses protected during transportation?
The lenses are housed in a wooden storage box with separation between individual pieces. Additional protective packing can be provided for bulk and export transportation.
