Cylindrical Concave Lens
Product Specification Sheet

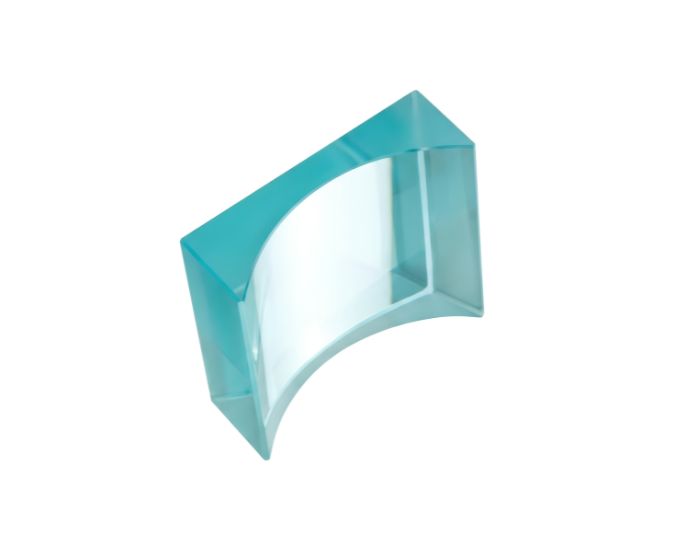

Cylindrical Concave Lens
Model Number: MT-1106
The Cylindrical Concave Lens from Micro Technologies is an optical component designed for experiments involving light divergence, refraction, and cylindrical lens behavior. The MT-1106 features a concave cylindrical optical surface that diverges incident light primarily along one axis, making it suitable for ray optics, beam-shaping, and laboratory optical investigations.
Product Specification
The Cylindrical Concave Lens from Micro Technologies is a laboratory optical component designed for experiments involving the refraction and divergence of light. Unlike a conventional spherical concave lens, a cylindrical lens has curvature primarily in one direction, producing a different optical effect along one axis.
The MT-1106 features a concave cylindrical surface designed to diverge incident light in the direction corresponding to its curved profile. This characteristic makes it useful for investigating the behavior of cylindrical optical elements and comparing them with conventional spherical lenses.
The lens can be incorporated into ray-optics experiments to observe changes in the direction and distribution of incident light. When used with a suitable light source, ray box, optical bench, or screen, the resulting light pattern can be conveniently investigated.
Its optical configuration also makes the MT-1106 useful for demonstrating one-dimensional beam divergence and beam shaping. This provides a practical means of studying how cylindrical curvature influences the propagation of light.
The transparent construction allows light to pass through the component while undergoing refraction at the optical surfaces. The lens can therefore support experiments involving focal behavior, divergence, refraction, and cylindrical optics.
Manufactured and supplied by Micro Technologies, the Cylindrical Concave Lens is suitable for physics laboratories, optics laboratories, research facilities, testing laboratories, and other optical experimental setups.
Features
- Concave cylindrical optical surface
- Transparent optical construction
- Diverging lens configuration
- Light divergence primarily along one axis
- Suitable for cylindrical optics experiments
- Useful for refraction studies
- Compact optical component
- Suitable for beam-shaping investigations
- Easy integration with compatible optical setups
- Reusable laboratory construction
Benefits
- Demonstrates the optical behavior of cylindrical lenses
- Suitable for one-axis light divergence studies
- Supports comparative lens experiments
- Useful for beam-shaping investigations
- Compact design simplifies optical setups
- Can be combined with compatible ray boxes and optical benches
- Suitable for repeated optics experiments
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Cylindrical Concave Lens |
| Model No. | MT-1106 |
| Product Type | Cylindrical Optical Lens |
| Lens Profile | Concave |
| Optical Action | Diverging |
| Curvature | Cylindrical |
| Construction | Transparent Optical Material |
| Light Behavior | Divergence Along Curved Axis |
| Configuration | Compact Optical Component |
| Application | Refraction, Divergence & Cylindrical Optics |
Available Model
| Model No. | Product |
|---|---|
| MT-1106 | Cylindrical Concave Lens |
Applications
- Cylindrical lens experiments
- Light divergence studies
- Refraction experiments
- Ray optics investigations
- Beam-shaping experiments
- Light-path demonstrations
- Optical bench experiments
- Comparative lens studies
- Physics laboratory experiments
- Optical testing applications
Available Variants
Cylindrical Concave Lens, Concave Cylindrical Lens, Diverging Cylindrical Lens, Negative Cylindrical Lens, Laboratory Cylindrical Lens, Optical Cylindrical Lens, Glass Cylindrical Lens, Cylindrical Diverging Lens
SKU System
MT-CCL-1106
FAQs
What is the MT-1106 Cylindrical Concave Lens used for?
The MT-1106 is used for optical experiments involving light divergence, refraction, cylindrical lens behavior, and beam shaping.
What is the model number of this Cylindrical Concave Lens?
The Micro Technologies model number is MT-1106.
Is a cylindrical concave lens a diverging lens?
Yes. A concave cylindrical lens produces a diverging optical effect primarily along the axis associated with its curved surface.
How is a cylindrical lens different from a spherical lens?
A cylindrical lens has optical curvature primarily in one direction, while a spherical lens has curvature in two dimensions. This allows a cylindrical lens to affect light differently along different axes.
Can the MT-1106 be used with an optical bench?
Yes. It can be incorporated into a compatible optical bench or ray-optics setup along with suitable light sources, screens, and other optical components.
What experiments can be performed with the MT-1106?
It can support experiments involving refraction, light divergence, beam shaping, cylindrical optics, ray propagation, and comparative lens behavior.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Model MT-1106
- Cylindrical concave optical configuration
- Suitable for light divergence experiments
- Compact and reusable component
- Suitable for various optical laboratory setups
- Bulk, OEM, institutional, and distributor supply available
Call to Action
Choose the Cylindrical Concave Lens – MT-1106 from Micro Technologies for reliable refraction, divergence, and cylindrical optics experiments. Contact us today for competitive pricing, bulk procurement, institutional orders, OEM requirements, distributor inquiries, and customized quotations.
