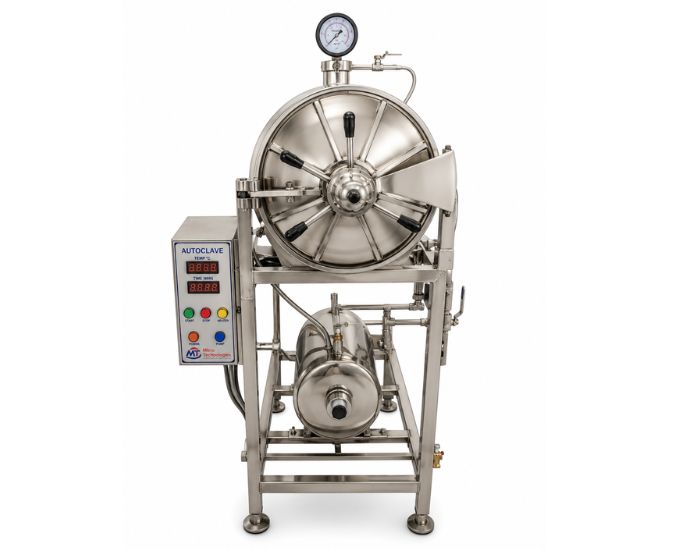

Horizontal Cylindrical Double Wall Autoclave (MT-412 Series)
Product Specification Sheet
Horizontal Cylindrical Double Wall Autoclave (MT-412 Series)
Model Number: MTAC-16
The Horizontal Cylindrical Double Wall Autoclave (MT-412 Series) is a heavy-duty steam sterilization system engineered for hospitals, pharmaceutical industries, research laboratories, biotechnology facilities, and industrial sterilization applications. Manufactured by Micro Technologies, it features a complete SS304 double-wall construction, radial locking door, digital temperature control, digital timer, automatic safety systems, and capacities ranging from 40 to 300 liters.
Product Specification
The Horizontal Cylindrical Double Wall Autoclave (MT-412 Series) is a high-capacity steam sterilizer developed for continuous sterilization of laboratory instruments, surgical equipment, pharmaceutical products, microbiological media, glassware, textiles, culture vessels, and other heat-resistant materials. Manufactured by Micro Technologies, it is designed for demanding applications in hospitals, pharmaceutical manufacturing, biotechnology industries, research laboratories, diagnostic centers, and industrial quality control facilities.
The autoclave incorporates a double-wall cylindrical construction in which the inner chamber, lid, ring, outer body, and boiler are manufactured from premium SS304 stainless steel. This corrosion-resistant construction ensures superior durability, excellent heat retention, and long-term reliability under continuous operation.
A radial locking door mechanism provides uniform pressure distribution around the chamber opening, ensuring a secure, leak-proof seal during every sterilization cycle. The complete assembly is mounted on a heavy-duty tubular stainless steel frame with adjustable leveling screws, providing excellent stability and easy installation.
The MT-412 Series is equipped with a digital temperature controller, digital temperature indicator, digital process timer, low water cut-off protection, and an automatic completion buzzer, allowing accurate monitoring and control of sterilization cycles while enhancing operator safety.
Operating at a sterilization temperature of 120°C to 131°C and a pressure range of 1.2 to 1.5 kg/cm² (15–20 PSI), the autoclave provides rapid steam generation and uniform heat distribution for effective sterilization across the entire chamber.
Designed for high-volume laboratory and medical applications, the MT-412 Series accommodates a wide range of sterilization loads while maintaining consistent steam quality and reliable process performance.
Manufactured by Micro Technologies, every Horizontal Cylindrical Double Wall Autoclave undergoes rigorous testing for pressure integrity, temperature accuracy, electrical safety, and mechanical reliability before dispatch.
Features
- Horizontal cylindrical steam autoclave
- Double-wall insulated construction
- SS304 inner chamber
- SS304 outer body
- SS304 lid and ring
- SS304 boiler
- High-pressure radial locking door
- Heavy-duty tubular stainless steel frame
- Adjustable leveling screws
- Digital temperature controller
- Digital temperature indicator
- Digital process timer
- Automatic cycle completion buzzer
- Automatic low water cut-off protection
- Uniform steam circulation
- Sterilization temperature: 120°C–131°C
- Sterilization pressure: 1.2–1.5 kg/cm² (15–20 PSI)
- Heavy-duty industrial construction
Benefits
- High-capacity steam sterilization
- Uniform temperature distribution
- Leak-proof radial locking system
- Accurate digital process control
- Enhanced operator safety
- Corrosion-resistant SS304 construction
- Reliable continuous operation
- Energy-efficient insulated chamber
- Suitable for industrial sterilization
- Long operational life
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Horizontal Cylindrical Double Wall Autoclave |
| Model Series | MT-412 |
| Type | Horizontal Steam Sterilizer |
| Construction | Double Wall |
| Inner Chamber | SS304 Stainless Steel |
| Outer Body | SS304 Stainless Steel |
| Lid & Ring | SS304 Stainless Steel |
| Boiler | SS304 Stainless Steel |
| Locking System | High Pressure Radial Locking |
| Frame | Tubular Stainless Steel |
| Temperature Controller | Digital |
| Temperature Indicator | Digital |
| Process Timer | Digital |
| Alarm | Automatic Completion Buzzer |
| Low Water Protection | Automatic Cut-Off |
| Sterilization Temperature | 120°C–131°C |
| Sterilization Pressure | 1.2–1.5 kg/cm² (15–20 PSI) |
| Applications | Hospitals, Laboratories, Pharmaceutical Industries, Biotechnology Labs, Research Institutes |
Available Models
| Model | Chamber Size (Inches) | Capacity |
|---|---|---|
| MT-412(A) | 12 × 20 | 40 Liters |
| MT-412(B) | 16 × 24 | 78 Liters |
| MT-412(C) | 16 × 36 | 120 Liters |
| MT-412(D) | 16 × 48 | 150 Liters |
| MT-412(E) | 20 × 36 | 185 Liters |
| MT-412(F) | 20 × 48 | 250 Liters |
| MT-412(G) | 22 × 48 | 300 Liters |
Optional Accessories
- Automatic pressure control switch
- PLC or microprocessor-based control system
- Touchscreen HMI
- Automatic water filling system
- Automatic drying cycle
- Vacuum system
- Stainless steel loading baskets
- Loading trolley
- Chart recorder
- Printer for cycle reports
- Calibration certificate
SKU System
- MT-412-A
- MT-412-B
- MT-412-C
- MT-412-D
- MT-412-E
- MT-412-F
- MT-412-G
FAQs
What is the MT-412 Horizontal Cylindrical Autoclave used for?
The MT-412 Series is designed for sterilizing laboratory instruments, surgical equipment, pharmaceutical products, microbiological media, textiles, glassware, and other heat-resistant materials.
What material is used in the construction?
The chamber, lid, ring, outer body, and boiler are all manufactured from premium SS304 stainless steel for excellent corrosion resistance and durability.
What sterilization temperature does the autoclave achieve?
The MT-412 operates at a sterilization temperature between 120°C and 131°C.
What is the operating pressure?
The autoclave operates at 1.2–1.5 kg/cm², equivalent to approximately 15–20 PSI.
What digital features are included?
The unit includes a digital temperature controller, digital temperature indicator, digital timer, automatic cycle completion buzzer, and automatic low water cut-off protection.
What capacities are available?
The MT-412 Series is available in 40 L, 78 L, 120 L, 150 L, 185 L, 250 L, and 300 L capacities.
Where is the MT-412 Series commonly used?
It is widely used in hospitals, pharmaceutical manufacturing units, biotechnology laboratories, research institutes, universities, diagnostic laboratories, and industrial sterilization facilities.
Can the MT-412 Series be supplied in bulk?
Yes. Micro Technologies supplies the MT-412 Series for institutional procurement, OEM manufacturing, government tenders, distributors, exporters, and bulk laboratory equipment requirements.
Why Choose Our Products
- Premium SS304 stainless steel construction
- High-capacity cylindrical chamber
- Leak-proof radial locking mechanism
- Advanced digital process control
- Automatic low water protection
- Uniform steam sterilization
- Multiple chamber capacities
- Heavy-duty industrial construction
- OEM manufacturing support
- Competitive B2B pricing
- Strict quality inspection
- Reliable after-sales service
Call to Action
Choose the Horizontal Cylindrical Double Wall Autoclave (MT-412 Series) from Micro Technologies for high-capacity, reliable, and efficient steam sterilization in hospitals, pharmaceutical industries, biotechnology laboratories, research institutes, and industrial sterilization facilities. Contact us today for pricing, customized specifications, OEM manufacturing, government tenders, distributor inquiries, or a competitive quotation.
