Four-Stroke Diesel Engine Model
Product Specification Sheet
Four-Stroke Diesel Engine Model
Model Number: MT-1232
The Four-Stroke Diesel Engine Model from Micro Technologies is a sectional mechanical demonstration model designed to illustrate the construction, component movement and four-stroke operating cycle of a compression-ignition engine. The MT-1232 features a manually operated flywheel, visible cylinder and piston arrangement, valve mechanism and stable demonstration base for practical engine studies.
Product Specification
The Four-Stroke Diesel Engine Model from Micro Technologies is designed for practical demonstration and detailed observation of the construction and mechanical operation of a four-stroke compression-ignition engine. Its sectional configuration makes important internal engine components visible during manual operation.

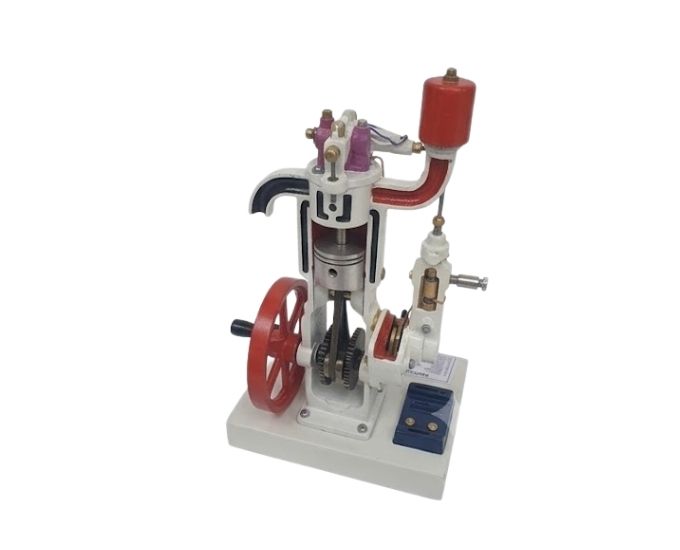

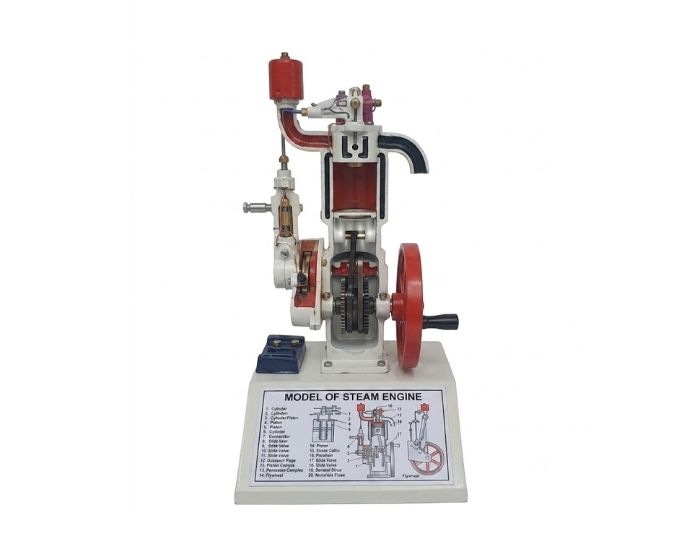

The MT-1232 incorporates a vertically arranged engine mechanism mounted on a sturdy bench-top demonstration base. The model provides a clear representation of the relationship between the piston, cylinder, crankshaft, connecting rod, valves and flywheel during engine operation.

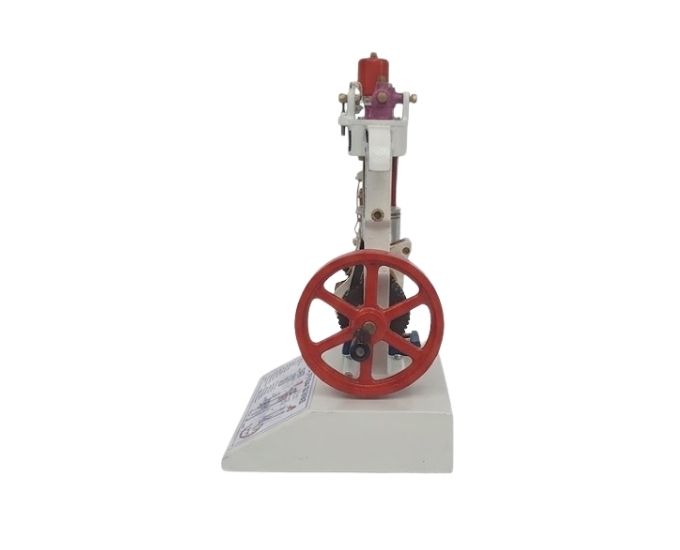

A manually operated flywheel enables the engine mechanism to be rotated slowly and in a controlled manner. As the flywheel is turned, the coordinated movement of the internal components can be observed throughout the complete four-stroke cycle.
The model is useful for demonstrating the four fundamental stages of diesel engine operation: intake, compression, power and exhaust. These four piston strokes occur over two complete revolutions of the crankshaft.
During the intake stroke, the piston movement and valve arrangement represent the admission of air into the cylinder. During the compression stroke, the piston moves to compress the air within the cylinder.
The power stroke represents the stage following fuel injection and combustion in an actual diesel engine, where expanding combustion gases force the piston downward. During the exhaust stroke, the piston movement represents the removal of exhaust gases through the exhaust valve.
Because this is a mechanical demonstration model, the complete sequence can be observed without operating an actual combustion engine. This provides a convenient way to investigate engine timing and component relationships in a laboratory environment.
The sectional cylinder arrangement allows the reciprocating movement of the piston and connecting mechanism to remain visible. Valve movement can also be correlated with piston position and crankshaft rotation during the four-stroke sequence.
Manufactured and supplied by Micro Technologies, the MT-1232 is suitable for automobile engineering laboratories, mechanical engineering laboratories, IC engine laboratories, automotive training facilities, research laboratories and industrial technical training applications.
Features
- Four-stroke diesel engine demonstration model
- Sectional engine construction
- Compression-ignition engine representation
- Visible cylinder and piston arrangement
- Manual flywheel operation
- Reciprocating piston demonstration
- Crankshaft and connecting-rod movement
- Valve mechanism representation
- Demonstrates complete four-stroke cycle
- Stable bench-top mounting
- Clear internal component visibility
- No fuel required for demonstration
- Suitable for repeated laboratory use
Benefits
- Clearly demonstrates four-stroke diesel engine operation
- Provides visible representation of internal component movement
- Helps examine piston and crankshaft coordination
- Demonstrates intake, compression, power and exhaust stages
- Manual operation allows slow and controlled observation
- Useful for studying basic valve timing relationships
- Eliminates the need to run an actual engine for basic demonstrations
- Suitable for practical mechanical and automobile laboratory investigations
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Four-Stroke Diesel Engine Model |
| Model No. | MT-1232 |
| Engine Type | Diesel / Compression Ignition |
| Operating Cycle | Four Stroke |
| Number of Cycle Stages | Four |
| Stages | Intake, Compression, Power & Exhaust |
| Model Type | Sectional Demonstration Model |
| Operation | Manual |
| Flywheel | Provided |
| Piston Arrangement | Visible / Demonstrative |
| Valve Arrangement | Demonstrative |
| Mounting | Stable Bench-Top Base |
| Power Requirement | None |
| Primary Application | Diesel & IC Engine Demonstration |
Available Model
| Model No. | Product |
|---|---|
| MT-1232 | Four-Stroke Diesel Engine Model |
Applications
- Four-stroke diesel engine demonstration
- IC engine construction studies
- Diesel engine cycle demonstration
- Piston and cylinder motion study
- Crankshaft movement demonstration
- Connecting-rod mechanism study
- Valve movement observation
- Engine timing demonstrations
- Compression-ignition engine studies
- Automobile engineering laboratory work
- Mechanical engineering laboratory demonstrations
- Automotive technical training
Available Variants
Four-Stroke Diesel Engine Model, Four Stroke Compression Ignition Engine Model, Diesel Engine Demonstration Model, Sectional Diesel Engine Model, Four Stroke IC Engine Model, Diesel Engine Cutaway Model, Automotive Diesel Engine Training Model
SKU System
MT-4SDE-1232
FAQs
What is the MT-1232 Four-Stroke Diesel Engine Model used for?
The MT-1232 is designed to demonstrate the construction, internal component movement and operating sequence of a four-stroke diesel engine.
What is the model number of this Diesel Engine Model?
The Micro Technologies model number is MT-1232.
What are the four strokes of a diesel engine?
The four stages are intake, compression, power and exhaust.
How many crankshaft revolutions complete one four-stroke cycle?
A complete four-stroke engine cycle requires two crankshaft revolutions, during which the piston completes four strokes.
Is the MT-1232 manually operated?
Yes. A manual flywheel arrangement allows the mechanism to be rotated slowly for convenient observation.
Can the piston movement be observed?
Yes. The sectional configuration provides a visible representation of the reciprocating movement of the piston and associated mechanism.
Does this engine model require diesel fuel?
No. The MT-1232 is a mechanical demonstration model and does not require diesel fuel for basic operation.
Where is the Four-Stroke Diesel Engine Model used?
It is suitable for automobile engineering laboratories, mechanical engineering laboratories, IC engine laboratories, automotive training facilities and industrial technical training applications.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Model MT-1232
- Sectional four-stroke diesel engine configuration
- Clear internal mechanism visibility
- Manual flywheel for controlled demonstration
- Suitable for automobile and mechanical laboratories
- Robust bench-top construction
- OEM, bulk and institutional supply available
Call to Action
Equip your automobile and mechanical engineering laboratory with the Four-Stroke Diesel Engine Model – MT-1232 from Micro Technologies for practical demonstration of diesel engine construction and the complete four-stroke cycle. Contact us for competitive pricing, bulk procurement, institutional orders, OEM requirements, distributor supply and customized quotations.
