Electromagnetic Field Demonstrator
Product Specification Sheet
Electromagnetic Field Demonstrator
Model Number: MTME-15

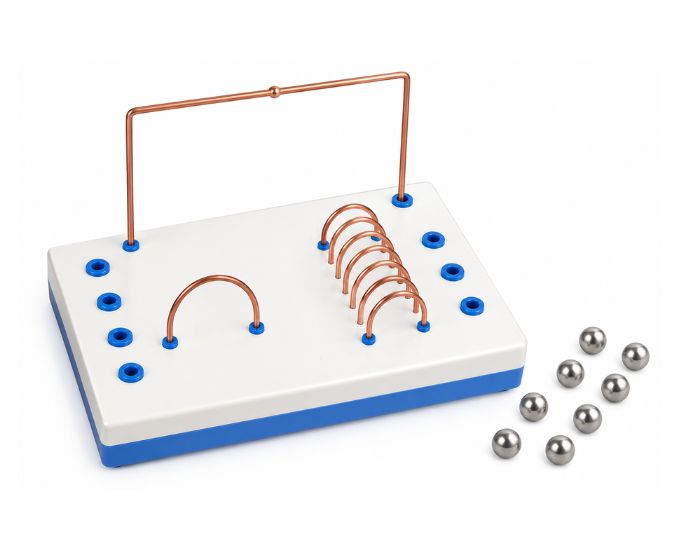

The Electromagnetic Field Demonstrator is a comprehensive apparatus designed to investigate magnetic field patterns produced by different current-carrying conductors. Micro Technologies supplies the unit with three conductor configurations—a pair of straight conductors, a circular loop, and a solenoid—mounted on a plastic base. Each configuration is provided with 4 mm electrical sockets for connection to a suitable low-voltage DC power source with output current not exceeding 5 A. Supplied with iron filings and 8 magnetic compasses, the apparatus enables clear investigation of magnetic-field direction and flux patterns around different conductor arrangements.
Product Specification
The Electromagnetic Field Demonstrator is designed for comparative investigation of magnetic fields associated with different shapes of current-carrying conductors. By incorporating multiple conductor configurations into a single apparatus, it provides a convenient platform for studying fundamental electromagnetic-field patterns.
The apparatus comprises three different conductor arrangements: a pair of straight conductors, a circular loop, and a solenoid. Each configuration produces a characteristic magnetic-field distribution when connected to an appropriate electrical supply.
Micro Technologies mounts the conductor assemblies securely on a plastic base, providing a stable arrangement for observation and experimentation. Each configuration incorporates 4 mm electrical sockets to simplify connection to a compatible laboratory power source.
The apparatus is designed for operation from a suitable low-voltage DC power supply, with the applied current maintained at not more than 5 A. This allows sufficient current to be passed through the selected conductor while remaining within the specified operating limit.
The straight-conductor arrangement can be used to investigate the magnetic field generated around a current-carrying wire. The circular loop enables observation of how the field changes when the conductor forms a closed circular path, while the solenoid demonstrates the combined magnetic effect produced by multiple turns.
The apparatus is supplied with iron filings and eight magnetic compasses. Iron filings provide a visual indication of magnetic flux patterns, while the magnetic compasses can be positioned at different locations to investigate field direction.
By comparing observations from the straight conductors, circular loop, and solenoid, users can examine how conductor geometry influences the resulting magnetic-field pattern. The direction of current can also be reversed to investigate the corresponding reversal of magnetic-field direction.
The combination of three conductor arrangements, field-visualization accessories, electrical connection sockets, and a stable base makes the Electromagnetic Field Demonstrator a versatile apparatus for magnetism and electromagnetism laboratory investigations.
Features
- Three current-carrying conductor configurations
- Pair of straight conductors
- Circular conductor loop
- Solenoid configuration
- Mounted on a durable plastic base
- 4 mm electrical sockets
- Designed for low-voltage DC operation
- Maximum operating current up to 5 A
- Iron filings included
- 8 magnetic compasses included
- Demonstrates magnetic flux patterns
- Allows investigation of magnetic-field direction
- Supports comparative electromagnetic experiments
- Reusable laboratory apparatus
Benefits
- Three electromagnetic experiments integrated into one apparatus
- Allows direct comparison of different conductor geometries
- Iron filings make magnetic flux patterns clearly visible
- Eight compasses help investigate field direction at multiple positions
- Standard 4 mm sockets simplify electrical connections
- Suitable for studying current direction and magnetic-field direction
- Compact base reduces the need for separate experimental setups
- Durable construction supports repeated laboratory use
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Electromagnetic Field Demonstrator |
| Internal Model No. | MT-41259 |
| Product Type | Electromagnetic Field Investigation Apparatus |
| Number of Conductor Configurations | 3 |
| Configuration 1 | Pair of Straight Conductors |
| Configuration 2 | Circular Loop |
| Configuration 3 | Solenoid |
| Mounting | Plastic Base |
| Electrical Connections | 4 mm Sockets |
| Power Supply | Low-Voltage DC |
| Maximum Current | 5 A |
| Iron Filings | Included |
| Magnetic Compasses | 8 Included |
| Primary Investigation | Magnetic Field & Flux Patterns |
| Usage / Application | Magnetism and electromagnetism experiments |
Components Included
| Component | Details |
|---|---|
| Straight Conductor Assembly | Pair |
| Circular Loop | 1 Configuration |
| Solenoid | 1 Configuration |
| Magnetic Compasses | 8 |
| Iron Filings | Included |
| Plastic Base | Included |
| 4 mm Connection Sockets | Provided |
Available Variants
- MT-41259 – Standard Electromagnetic Field Demonstrator
- Straight Conductor Magnetic Field Configuration
- Circular Loop Magnetic Field Configuration
- Solenoid Magnetic Field Configuration
- Customized configurations for bulk requirements
SKU System
- MT-EFD-STD – Standard Electromagnetic Field Demonstrator
- MT-EFD-SC – Straight Conductor Configuration
- MT-EFD-CL – Circular Loop Configuration
- MT-EFD-SOL – Solenoid Configuration
- MT-EFD-CUS – Customized Configuration
FAQs
What is an Electromagnetic Field Demonstrator used for?
It is used to investigate magnetic-field patterns produced by different current-carrying conductor configurations, including straight conductors, a circular loop, and a solenoid.
How many conductor configurations are included?
The apparatus includes three configurations: a pair of straight conductors, a circular loop, and a solenoid.
What is the maximum operating current?
The current should not exceed 5 A.
What type of power supply is required?
A suitable controlled low-voltage DC power source is required for operation.
What type of electrical connections are provided?
The apparatus uses 4 mm sockets for convenient connection to a compatible power supply.
Are magnetic compasses included?
Yes. The standard apparatus includes 8 magnetic compasses.
Are iron filings included?
Yes. Iron filings are included for visualization of magnetic flux patterns.
What can be investigated using the straight conductors?
They can be used to observe the magnetic field associated with current flowing through straight conductors.
What is demonstrated by the circular loop?
The circular loop allows investigation of the magnetic-field pattern produced when current flows around a circular conductor.
What can be investigated with the solenoid?
The solenoid configuration demonstrates the magnetic field generated by a multi-turn current-carrying coil and allows its field pattern to be compared with the other conductor arrangements.
Can the effect of reversing current be investigated?
Yes. Reversing the current direction allows the corresponding reversal of magnetic-field direction to be observed using the supplied compasses.
Can Electromagnetic Field Demonstrators be supplied in bulk?
Yes. Micro Technologies can supply these apparatus in bulk for laboratories, universities, colleges, research facilities, scientific equipment distributors, and institutional procurement.
Why Choose Our Products
- Three conductor configurations in one apparatus
- Straight conductor, circular loop and solenoid experiments
- 8 magnetic compasses included
- Iron filings included
- Convenient 4 mm electrical sockets
- Up to 5 A operating current
- Stable plastic base
- Suitable for comparative electromagnetic-field investigations
- Bulk supply available
Call to Action
Equip your laboratory with a versatile Electromagnetic Field Demonstrator from Micro Technologies. Contact us for competitive quotations, bulk orders, distributor requirements, institutional procurement, and complete magnetism and electromagnetism laboratory equipment solutions.
