Wind Energy System Trainer

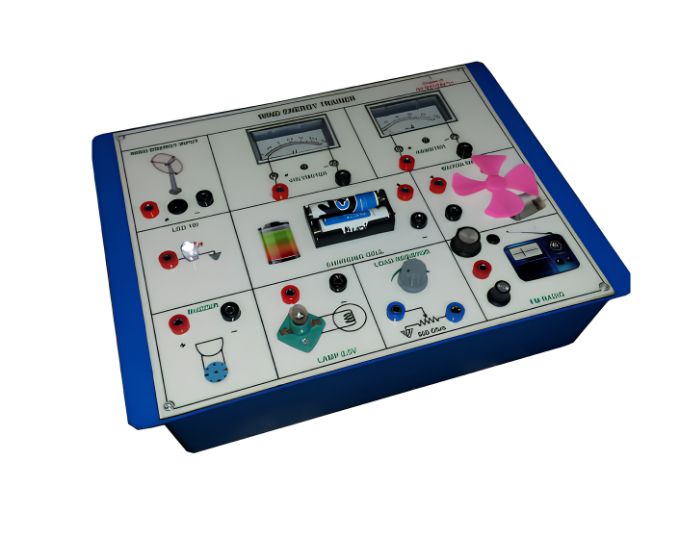

The Wind Energy System Trainer is a comprehensive educational system developed for practical teaching and demonstration of wind energy conversion and its electrical applications.The system combines a wind-energy generation unit with a clearly arranged experimental trainer panel containing electrical measuring instruments, loads, energy-storage components and connection terminals. It enables students to understand how the kinetic energy available from moving air can be converted into useful electrical energy through a wind-driven generating system.The wind turbine assembly provides the mechanical input required for electrical generation under suitable experimental airflow conditions. Students can observe the electrical output and perform measurements using the integrated voltage and current measurement facilities. The trainer includes a 15 V voltmeter and 100 mA ammeter, enabling students to monitor electrical parameters during practical experiments. An important experiment involves studying the V-I characteristics of the wind-energy system. Students can record voltage and current values under different suitable operating or load conditions and analyze system performance. The trainer also incorporates rechargeable energy storage, allowing students to investigate how electricity produced by a renewable energy source can be stored for later use. Multiple electrical loads are provided to demonstrate practical utilization of the generated energy.

An LED and lamp demonstrate electrical-to-light energy conversion.A small electric motor with fan provides a practical demonstration of electrical-to-mechanical energy conversion.A buzzer demonstrates the conversion of electrical energy into sound.The system can also support additional low-power applications such as a radio arrangement, providing students with practical examples of renewable electricity utilization.A potentiometer is incorporated to support load adjustment and electrical experimentation.The trainer panel uses clearly printed circuits and symbols, helping students identify components and make experimental connections conveniently.Connections are brought out through 4 mm sockets, allowing experiments to be configured using patch cords.Fuse-based short-circuit protection is incorporated to improve suitability for repeated laboratory teaching.The equipment provides practical understanding of wind-energy conversion, renewable electricity generation, voltage, current, electrical loads, energy storage and energy transformation.

Micro Technologies supplies Wind Energy System Trainers and other Renewable Energy Trainers for engineering colleges, universities, polytechnic institutes, ITIs, vocational training centres and educational laboratories.

Features

• Wind energy educational training system
• Wind turbine generating unit
• Wind-energy conversion experiments
• Integrated voltage measurement
• Integrated current measurement
• Adjustable potentiometer
• Rechargeable energy-storage batteries
• LED application
• Lamp/bulb application
• Electric motor and fan experiment
• Buzzer application
• Radio demonstration
• Wind-system V-I characteristic studies
• Electrical load experiments
• Clearly printed trainer panel
• 4 mm connection sockets
• Patch-cord based experimentation
• Fuse-based short-circuit protection
• ABS plastic trainer cabinet
• Suitable for repeated educational use

Benefits

• Provides hands-on understanding of wind energy
• Demonstrates conversion of wind energy into electricity
• Enables voltage and current measurement
• Supports V-I characteristic experiments
• Demonstrates renewable-energy storage
• Provides practical electrical load experiments
• Demonstrates lighting applications
• Demonstrates electrical-to-mechanical energy conversion
• Demonstrates sound-energy applications
• Introduces students to wind turbine technology
• Connects renewable energy theory with practical experiments
• Suitable for technical and engineering education

Product Specifications

Experiments Performed

• Study of wind-energy generation
• Demonstration of wind-to-electrical energy conversion
• Study of renewable-energy storage
• Operation of an LED using generated energy
• Operation of a lamp/bulb
• Operation of an electric motor and fan
• Demonstration of electrical-to-mechanical energy conversion
• Operation of a buzzer
• Demonstration of electrical-to-sound energy conversion
• Study of wind-energy V-I characteristics
• Measurement of generated voltage
• Measurement of generated current
• Study of different electrical loads
• Investigation of energy storage using rechargeable batteries
• Practical study of wind-generated electricity utilization

Applications

• Renewable Energy Laboratories
• Wind Energy Laboratories
• Green Energy Laboratories
• Electrical Engineering Laboratories
• Electronics Engineering Laboratories
• Energy Engineering Laboratories
• Sustainable Energy Laboratories
• Engineering Colleges
• Universities
• Polytechnic Institutes
• ITIs
• Vocational Training Institutes
• Technical Training Centres
• STEM & Educational Laboratories

FAQs

What is a Wind Energy System Trainer used for?

It is used for practical teaching of wind-energy conversion, electricity generation, voltage and current measurement, energy storage and operation of electrical loads.

Does the trainer include a wind turbine?

Yes. The system includes a wind-energy generating unit for practical renewable-energy experiments.

Can wind-energy V-I characteristics be studied?

Yes. Students can measure voltage and current under suitable experimental conditions to investigate the electrical characteristics of the wind-energy system.

Can voltage and current be measured directly?

Yes. The trainer includes dedicated voltage and current measurement facilities.

Does the trainer provide energy-storage experiments?

Yes. Rechargeable batteries enable students to study the storage of electricity generated from wind energy.

Can an LED and bulb be operated?

Yes. LED and lamp/bulb loads are included for practical lighting demonstrations.

Can mechanical energy applications be demonstrated?

Yes. A motor-driven fan demonstrates the conversion of generated electrical energy into mechanical output.

Can sound-energy conversion be demonstrated?

Yes. A buzzer is included for demonstrating electrical-to-sound energy conversion.

What type of connections are provided?

The trainer uses 4 mm connection sockets and patch cords for convenient laboratory experimentation.

Does the trainer include short-circuit protection?

Yes. Fuse-based protection is provided for short-circuit protection.

Where should this product be categorized?

The best website placement is Renewable Energy Trainers → Wind Energy Trainers.

Who can use this trainer?

It is suitable for engineering colleges, universities, polytechnic institutes, ITIs, vocational institutes and renewable-energy training laboratories.

Why Choose Our Products

• Practical wind-energy generation studies
• Wind turbine experiments
• V-I characteristic analysis
• Voltage and current measurements
• Renewable-energy storage experiments
• Multiple electrical load applications
• Lighting, mechanical and sound demonstrations
• Student-friendly connection system
• Short-circuit protection
• Suitable for institutional laboratory setup
• Customized configurations available
• Bulk and tender supply support

Call to Action

Equip your Wind and Renewable Energy Laboratory with the Wind Energy System Trainer from Micro Technologies. Designed for practical study of wind-generated electricity, V-I characteristics, energy storage and electrical applications, the trainer provides an effective hands-on platform for renewable-energy education. Contact us for technical specifications, customized laboratory setups, institutional quotations, bulk requirements or tender supply.
