Vertical Water Still
Product Specification Sheet
Vertical Water Still
Model Number: MTWS-01
The Vertical Water Still from Micro Technologies is a laboratory water distillation system designed for producing high-quality distilled and pyrogen-free water for suitable laboratory applications. Based on a vertical glass assembly with an N.P.L.-type design, the unit is available in single-stage and double-stage configurations with output capacities of approximately 3, 5 and 10 litres per hour.
Product Specification
The Vertical Water Still is designed for laboratory applications requiring a continuous source of distilled water for analytical, research, testing and general laboratory procedures.
The unit incorporates a vertical glass assembly based on an N.P.L.-type design. Its compact vertical arrangement helps utilize laboratory space efficiently while providing a practical water-distillation setup.
An inbuilt bottom heater provides the heat required to boil the feed water. The generated steam passes through the glass distillation assembly, where it is condensed and collected as distilled water.
The system is designed for producing pyrogen-free distilled water under appropriate operating conditions, making it suitable for applications requiring purified laboratory water.
Depending on purification requirements, the Water Still is available in single-stage and double-stage models. The single-stage model performs one distillation cycle, while the double-stage configuration provides a second distillation stage for applications requiring enhanced purity.
Output capacities of 3 litres/hour, 5 litres/hour and 10 litres/hour are available, enabling laboratories to select the appropriate configuration according to their daily distilled-water requirement.
A low-water cut-off device is provided to improve operational safety by helping protect the heating system when an inadequate water level is detected.
Key Features
- Vertical laboratory water still
- N.P.L.-type glass assembly
- Designed for distilled water production
- Suitable for pyrogen-free water requirements
- Single-stage configuration available
- Double-stage configuration available
- Inbuilt bottom heating system
- Low-water cut-off device
- Multiple output capacities
- 3 litres/hour option
- 5 litres/hour option
- 10 litres/hour option
- Compact vertical construction
- Continuous distillation operation
- Suitable for laboratory applications
Available Capacities
| Output Capacity | Single Stage | Double Stage |
|---|---|---|
| 3 Litres/Hour | Available | Available |
| 5 Litres/Hour | Available | Available |
| 10 Litres/Hour | Available | Available |
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Vertical Water Still |
| Equipment Type | Laboratory Water Distillation Unit |
| Design | Vertical N.P.L.-Type |
| Assembly | Glass |
| Distillation Options | Single Stage / Double Stage |
| Output Capacity | 3, 5 or 10 Litres/Hour |
| Heating System | Inbuilt Bottom Heater |
| Water Output | Distilled Water |
| Safety System | Low-Water Cut-Off |
| Installation | Vertical Laboratory Setup |
| Operation | Continuous Distillation |
| Application | Laboratory Water Purification |
Electrical load, cooling-water consumption, conductivity and other performance parameters depend on the selected capacity and stage configuration.
Working Principle
Water Heating
Feed water enters the distillation system and is heated using the inbuilt bottom heater until steam is generated.
Steam Generation
As the water reaches boiling conditions, water vapour rises through the vertical glass assembly while many non-volatile impurities remain behind.
Condensation
The generated vapour enters the condenser section, where cooling water removes heat and converts the vapour back into liquid.
Distilled Water Collection
The condensed purified water is collected through the outlet for suitable laboratory use.
Double Distillation
In the double-stage configuration, the distilled water undergoes an additional distillation stage to provide enhanced purification compared with a single-stage process.

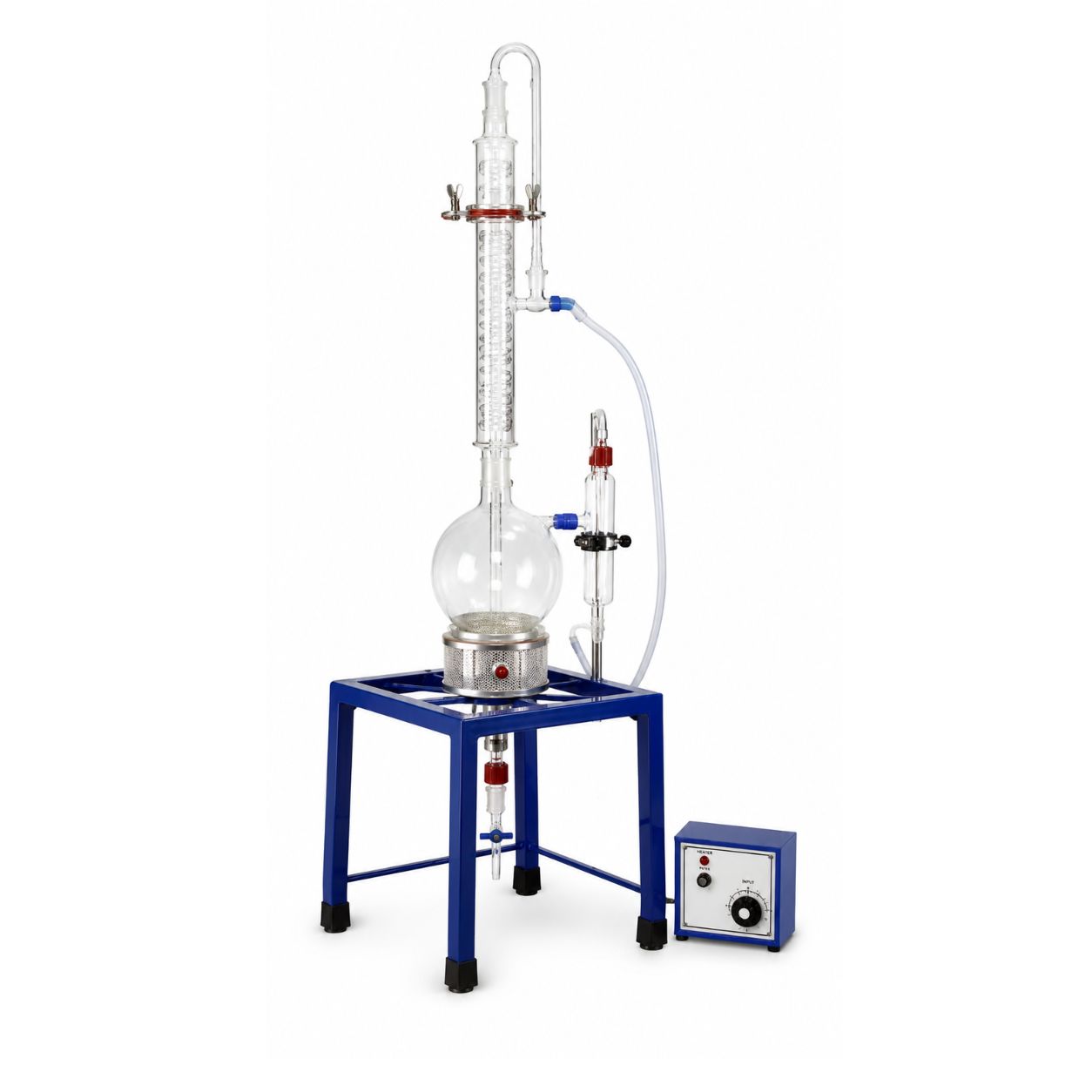

Single Stage Water Still
Single Distillation Process
The single-stage model performs one complete evaporation and condensation cycle. It is suitable for routine laboratory distilled-water requirements where single-stage purification meets the intended application.

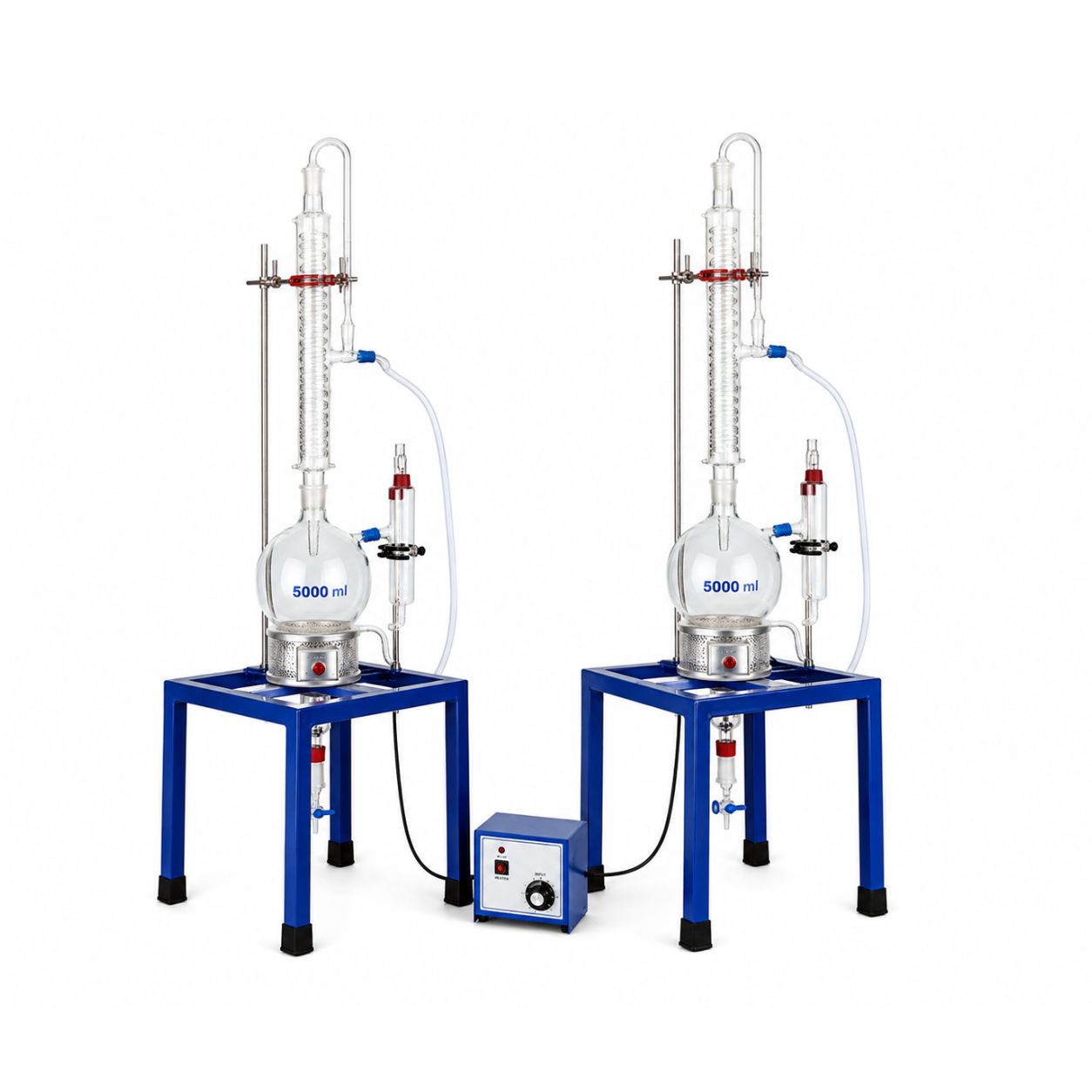

Double Stage Water Still
Double Distillation Process
The double-stage model performs an additional distillation cycle, making it suitable for applications requiring a higher degree of water purity.
Safety Features
Low-Water Cut-Off Device
The integrated low-water cut-off system helps protect the heating element by interrupting or controlling operation when insufficient water is available.
Inbuilt Heating Arrangement
The bottom-heater arrangement provides direct and convenient heating for efficient steam generation during the distillation process.
Benefits
- Produces laboratory-grade distilled water
- Single and double-stage options
- Three output capacities available
- Continuous water production
- Compact vertical design
- Glass distillation assembly
- Built-in heating arrangement
- Low-water safety protection
- Suitable for routine laboratory requirements
- Convenient distilled-water generation
- Reduced dependence on externally purchased distilled water
- Suitable for research and analytical laboratories
Scope of Application
- Laboratory Distilled Water Production
- Analytical Sample Preparation
- Reagent Preparation
- Solution Preparation
- Glassware Washing
- Research Applications
- Chemical Analysis
- Quality Control Testing
- General Laboratory Procedures
- Research & Development
Applications
- Research Laboratories
- Chemical Laboratories
- Pharmaceutical Laboratories
- Analytical Laboratories
- Biotechnology Laboratories
- Medical Laboratories
- Quality Control Laboratories
- Research Institutes
- Universities
- Colleges
- Industrial Laboratories
- Research & Development Centers
Items Supplied
- Vertical Water Still
- Glass Distillation Assembly
- Inbuilt Bottom Heater
- Condenser Assembly
- Low-Water Cut-Off System
- Required Connecting Components
- Operating Instructions
Frequently Asked Questions
What is a Vertical Water Still?
A Vertical Water Still is a laboratory distillation apparatus that heats feed water, generates steam and condenses the vapour to produce purified distilled water.
What output capacities are available?
The unit is available with output capacities of approximately 3 litres/hour, 5 litres/hour and 10 litres/hour.
Are single-stage and double-stage models available?
Yes. All three listed capacities are available in single-stage and double-stage configurations.
What is the difference between single-stage and double-stage models?
A single-stage model performs one distillation cycle, while a double-stage model provides an additional distillation stage for enhanced purification.
Does the unit have an inbuilt heater?
Yes. The specified unit incorporates an inbuilt bottom heater for water heating and steam generation.
Does it have low-water protection?
Yes. A low-water cut-off device is provided to help protect the heating system when the water level becomes insufficient.
What type of construction is used?
The distillation section uses a vertical glass assembly based on an N.P.L.-type design.
Can it produce pyrogen-free distilled water?
The unit is designed for applications requiring pyrogen-free distilled water, subject to correct operation, maintenance, feed-water quality and the selected configuration.
Which capacity should I choose?
The appropriate capacity depends on laboratory consumption. Models are available with nominal production rates of 3, 5 and 10 litres per hour.
Where can a Vertical Water Still be used?
It is suitable for research, pharmaceutical, chemical, analytical, biotechnology, medical, institutional and quality-control laboratories.
Why Choose Micro Technologies?
- Single and double-stage models
- 3, 5 and 10 litres/hour capacities
- Vertical N.P.L.-type design
- Glass distillation assembly
- Inbuilt bottom heater
- Low-water cut-off protection
- Suitable for distilled-water production
- Compact laboratory installation
- Multiple capacity options
- Institutional and bulk supply
- Technical assistance
