Universal Gate Trainer (NAND and NOR Gates)
Product Specification Sheet
Universal Gate Trainer (NAND and NOR Gates)
Model Number: MT-E072
The Universal Gate Trainer (NAND and NOR Gates) is a professional laboratory training system designed for studying universal logic gates and Boolean algebra. Manufactured by Micro Technologies, this trainer enables practical verification of NAND and NOR gate operations, logic implementation, and digital circuit design, making it ideal for engineering colleges, universities, polytechnic institutes, technical training centers, and digital electronics laboratories.
Product Specification
The Universal Gate Trainer (NAND and NOR Gates) is specially designed to provide students with practical knowledge of universal logic gates through hands-on laboratory experimentation. Manufactured by Micro Technologies, this trainer enables learners to understand how NAND and NOR gates can be used as universal gates to implement any Boolean function and construct all basic digital logic circuits.
The trainer allows students to study the characteristics and operation of NAND and NOR gates, verify Boolean algebra identities, implement equivalent logic functions, and design combinational logic circuits using only universal gates. Through practical experimentation, learners gain a thorough understanding of digital logic simplification, gate-level implementation, and circuit realization.
The trainer incorporates onboard NAND and NOR gate circuits with multiple practical experiments permanently mounted on the front panel. Students can verify truth tables, construct AND, OR, NOT, XOR, and other logic functions using only NAND or NOR gates, demonstrating the versatility of universal gates in digital electronics.
Four independent TTL logic input switches allow users to apply HIGH and LOW logic levels during experimentation. Each input is equipped with an LED indicator for clear visualization of input status. Two independent buffered logic output indicators display HIGH and LOW logic conditions, enabling students to observe gate responses accurately during experiments.
The trainer operates using a regulated +5 V DC, 150 mA power supply, ensuring reliable operation of all onboard digital integrated circuits. Carefully selected electronic components provide stable performance, accurate logic operation, and long operational life.

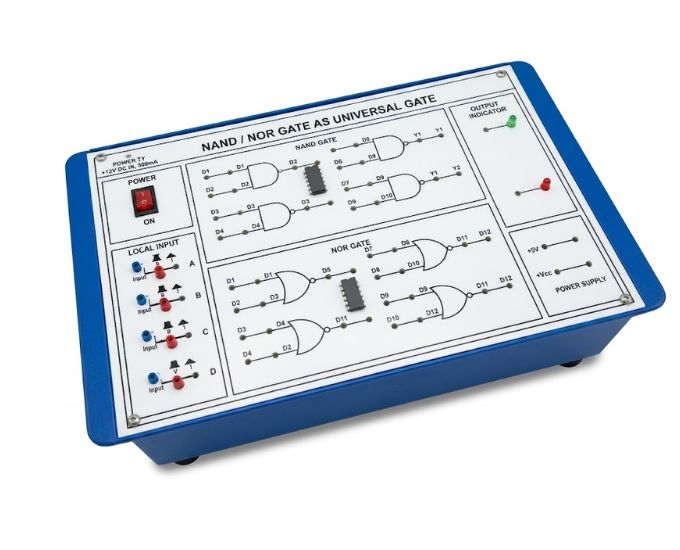

The front panel is manufactured using a premium insulated printed circuit board with permanently printed circuit diagrams and symbols for easy identification of logic gates and experimental terminals. Color-coded 2 mm safety sockets simplify laboratory wiring while minimizing connection errors.
The trainer is enclosed in a rugged ABS plastic cabinet designed for continuous educational use. Its compact tabletop construction makes it suitable for classroom demonstrations, laboratory practical sessions, and digital electronics training.
The Universal Gate Trainer is extensively used in engineering colleges, universities, diploma institutes, polytechnic colleges, industrial training institutes (ITI), vocational education centers, digital electronics laboratories, computer engineering laboratories, embedded systems laboratories, and research institutions.
Every Universal Gate Trainer manufactured by Micro Technologies undergoes comprehensive quality inspection and functional testing to ensure operational reliability, safety, and long service life.
Features
- Study of NAND as a universal gate
- Study of NOR as a universal gate
- Verification of universal gate theory
- Built-in NAND gate circuits
- Built-in NOR gate circuits
- Boolean algebra verification
- Logic function implementation
- Four independent TTL logic inputs
- LED logic input indicators
- Two buffered logic output indicators
- Regulated +5 V DC power supply
- High-quality insulated PCB
- Printed circuit diagrams
- Color-coded 2 mm safety sockets
- Rugged ABS plastic cabinet
- Compact tabletop design
- Ready-to-use laboratory trainer
- Reliable experimental performance
- Low maintenance
- Instruction manual included
Benefits
- Demonstrates universal gate concepts clearly
- Enhances understanding of Boolean algebra
- Supports digital electronics laboratory education
- Simplifies logic circuit implementation
- Easy laboratory setup
- Safe low-voltage operation
- Improves digital circuit design skills
- Strengthens understanding of combinational logic
- Durable educational equipment
- Suitable for repeated classroom demonstrations
- Cost-effective engineering trainer
- Builds a strong foundation in digital electronics
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Universal Gate Trainer (NAND and NOR Gates) |
| Experiments | NAND & NOR as Universal Gates |
| Logic Gates | NAND and NOR |
| DC Power Supply | +5 V DC, 150 mA |
| Input Supply | 230 V AC ±10%, 50 Hz |
| Logic Inputs | Four Independent TTL Logic Inputs |
| Input Indicators | LED Logic Status Indicators |
| Logic Indicators | Two Buffered HIGH/LOW Logic Indicators |
| Connection Type | 2 mm Color-Coded Safety Sockets |
| Circuit Board | High-Quality Insulated PCB |
| Cabinet | Heavy-Duty ABS Plastic |
| Trainer Size | Approximately 12" × 8" |
Applications
- Engineering Colleges
- Polytechnic Institutes
- Universities
- Digital Electronics Laboratories
- Computer Engineering Laboratories
- Embedded Systems Laboratories
- Electronics Laboratories
- Diploma Colleges
- Industrial Training Institutes (ITI)
- Technical Training Centers
- Vocational Education Centers
- Research Laboratories
Optional Accessories
- Digital Multimeter
- Logic Probe
- Logic Pulser
- Oscilloscope
- Function Generator
- Patch Cords (2 mm)
- Breadboard Trainer Kit
- Electronics Tool Kit
- Laboratory Workstation
- User Instruction Manual
SKU System
MT-UGT-001
FAQs
What is the Universal Gate Trainer used for?
It is used to study how NAND and NOR gates function as universal gates and how they can be used to implement various digital logic circuits.
Which logic gates are provided on the trainer?
The trainer incorporates:
- NAND Gates
- NOR Gates
Which experiments can be performed?
Students can study:
- NAND as Universal Gate
- NOR as Universal Gate
- Boolean Algebra Verification
- Logic Gate Realization
- Truth Table Verification
- Digital Logic Circuit Design
How many logic inputs are available?
The trainer provides four independent TTL logic input switches, each with LED indication.
How many output indicators are available?
The trainer includes two buffered HIGH/LOW logic output indicators for observing logic gate outputs.
What power supply is included?
The trainer operates on a regulated +5 V DC, 150 mA power supply.
How are experimental connections made?
All experimental connections are made through 2 mm color-coded safety sockets, ensuring secure and reliable laboratory operation.
Can the Universal Gate Trainer be supplied in bulk?
Yes. Micro Technologies supplies Universal Gate Trainers for engineering colleges, universities, government institutions, OEM projects, distributors, laboratory installations, and bulk procurement.
Why Choose Our Products
- Premium-quality digital electronics trainer kits
- Complete universal gate experiments
- Built-in NAND and NOR gate circuits
- High-quality insulated PCB construction
- Rugged ABS cabinet
- Reliable laboratory performance
- OEM and institutional supply available
- Competitive B2B pricing
- Strict quality inspection
- Reliable technical support
- Excellent after-sales service
- Long operational life
Call to Action
Build a strong foundation in digital electronics with the Universal Gate Trainer (NAND and NOR Gates) from Micro Technologies. Contact us today for pricing, institutional procurement, OEM requirements, government tenders, distributor inquiries, and bulk order quotations.
