Triple Pulley on Rod
Product Specification Sheet
Triple Pulley on Rod
Model Number: MTM-20

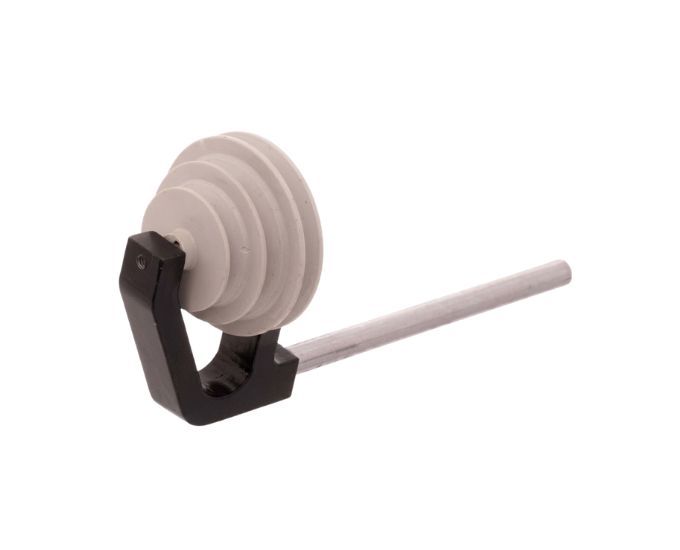

The Triple Pulley on Rod from Micro Technologies is a compact mechanics laboratory accessory featuring a three-step pulley wheel mounted on a supporting bracket with an extended rod. The multiple pulley diameters allow cords to be positioned at different effective radii, making the apparatus suitable for force, tension, torque, mechanical advantage and rotational mechanics experiments.
Product Specification
The Triple Pulley on Rod from Micro Technologies is designed for physics and mechanics laboratory experiments requiring a multi-step pulley arrangement that can be conveniently incorporated into compatible laboratory support systems.
The apparatus features a triple stepped pulley, providing three pulley sections of different effective diameters on a common axis. This arrangement allows different cord positions and effective radii to be selected according to the requirements of an experiment.
A rigid supporting bracket holds the pulley assembly and maintains its position during rotation. The bracket is connected to an extended mounting rod, providing a convenient arrangement for integration with compatible laboratory stands and experimental setups.
The stepped configuration makes the apparatus useful for investigating how the radius of application influences turning effect or torque. A force applied through a cord at different pulley radii can produce different moments about the rotational axis.
The apparatus can therefore support practical demonstrations involving the relationship Torque = Force × Perpendicular Distance, helping connect force magnitude with its distance from the axis of rotation.
The Triple Pulley on Rod is also useful for experiments involving tension and suspended loads. A cord can be routed around an appropriate pulley step and connected to compatible masses or force-measuring apparatus.
Using different pulley diameters allows the experimental geometry to be changed without replacing the entire pulley assembly. This provides a convenient way to compare mechanical effects under different radius conditions.
The pulley may also be incorporated into suitable mechanical advantage and rotational mechanics experiments, depending on the overall laboratory setup and associated apparatus.
Its rod-mounted configuration makes it particularly convenient for modular laboratory systems. The apparatus can be positioned with compatible stands, clamps and supports to create different experimental arrangements.
The multiple grooves help keep cords located at the selected pulley radius during suitable experiments. Correct cord alignment should be maintained to minimize unwanted lateral forces on the pulley.
For quantitative experiments, known masses or compatible Spring Balances may be used to provide or measure applied forces. The resulting behaviour can then be compared for different pulley steps.
The compact construction makes the apparatus convenient for routine handling and storage while providing multiple pulley radii within a single laboratory accessory.
The Triple Pulley on Rod can complement other mechanics equipment such as mass sets, Spring Balances, laboratory stands, cords and force apparatus for broader experimental investigations.
Manufactured and supplied by Micro Technologies, the Triple Pulley on Rod is suitable for physics laboratories, mechanics laboratories and scientific facilities requiring a compact multi-step pulley for force and rotational mechanics experiments.
Features
- Triple stepped pulley arrangement
- Three pulley sections
- Multiple effective pulley radii
- Common rotational axis
- Supporting bracket
- Extended mounting rod
- Suitable for cord-based experiments
- Compact laboratory configuration
- Useful for force investigations
- Suitable for tension experiments
- Supports torque demonstrations
- Useful for rotational mechanics
- Compatible with suitable laboratory supports
- Reusable experimental accessory
- Convenient handling and storage
Benefits
- Three pulley radii available in one assembly
- Allows comparison of forces at different effective radii
- Useful for demonstrating torque and moments
- Supports tension and suspended-load experiments
- Rod mounting provides flexible laboratory installation
- Multiple steps reduce the need for separate pulley wheels
- Suitable for quantitative and demonstration experiments
- Can be combined with masses and Spring Balances
- Compact design simplifies laboratory storage
- Useful for a variety of mechanics investigations
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Triple Pulley on Rod |
| Product Type | Multi-Step Laboratory Pulley |
| Pulley Configuration | Triple / Three Step |
| Number of Pulley Sections | 3 |
| Pulley Diameters | Multiple / Stepped |
| Mounting | Rod Mounted |
| Support | Pulley Bracket |
| Cord Arrangement | Grooved Pulley Sections |
| Primary Application | Force / Torque / Tension Experiments |
| Use | Physics / Mechanics Laboratory |
Applications
- Torque experiments
- Moment of force demonstrations
- Force and radius investigations
- Tension experiments
- Suspended-load experiments
- Pulley mechanics experiments
- Rotational mechanics studies
- Mechanical advantage demonstrations
- Force comparison experiments
- Turning-effect investigations
- Laboratory stand experiments
- Mechanics laboratory practicals
- Physics laboratory experiments
- General pulley demonstrations
Available Variants
Triple Pulley on Rod, Three Step Pulley on Rod, Stepped Pulley Apparatus, Multi-Groove Laboratory Pulley, Three Groove Pulley, Rod Mounted Triple Pulley, Mechanics Laboratory Pulley, Physics Lab Stepped Pulley
SKU System
MT-TPR-Series
FAQs
What is a Triple Pulley on Rod used for?
It is used for laboratory experiments involving force, tension, torque, moments and rotational mechanics.
How many pulley sections are provided?
The apparatus incorporates three stepped pulley sections on a common rotational axis.
Why are different pulley diameters provided?
Different effective radii allow users to investigate how changing the distance from the rotational axis influences the turning effect of an applied force.
Can it be used for torque experiments?
Yes. The stepped pulley arrangement is useful for suitable demonstrations involving the relationship between force, radius and torque.
Is the pulley mounted on a rod?
Yes. The pulley assembly incorporates an extended mounting rod for installation in compatible laboratory support arrangements.
Can it be used with hanging masses?
Yes. In a suitable setup, cords and compatible laboratory masses can be used to apply known forces to the pulley.
Can it be used with a Spring Balance?
Yes. A compatible Spring Balance can be incorporated into suitable arrangements for measuring or comparing applied forces.
What is the advantage of a stepped pulley?
A stepped pulley provides multiple effective radii in one compact assembly, enabling different experimental configurations without changing the complete pulley.
Is it suitable for mechanics laboratories?
Yes. It is suitable for physics and mechanics laboratory investigations involving pulley action, force and rotational effects.
What additional equipment can be used with it?
Depending on the experiment, it can be combined with laboratory stands, clamps, cords, masses and Spring Balances.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Three-step pulley configuration
- Convenient rod-mounted design
- Multiple effective pulley radii
- Suitable for force and torque investigations
- Useful for tension and rotational mechanics experiments
- Compact reusable laboratory accessory
- Institutional and bulk supply available
- OEM requirements supported
Call to Action
Expand practical mechanics experiments with the Triple Pulley on Rod from Micro Technologies, a versatile solution for force, tension, torque and rotational investigations. Contact us for competitive institutional pricing, bulk laboratory supply, OEM requirements and customized quotations.
