Travelling Microscope (MT-273 Series)
Product Specification Sheet

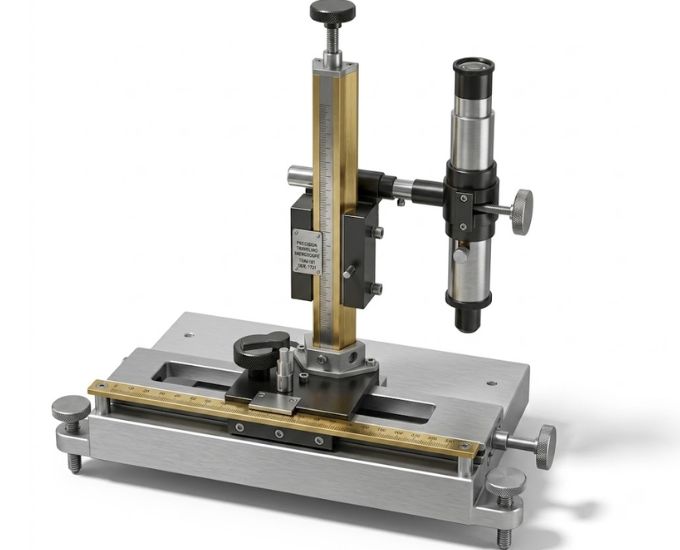

Travelling Microscope (MT-273 Series)
Model Number: MTTM-01
The Travelling Microscope (MT-273 Series) is a precision optical measuring instrument designed for accurate linear measurements, laboratory experiments, engineering applications, and industrial inspection. Manufactured by Micro Technologies, it features a rigid cast iron base, precision vernier scales, smooth X-Y movement, and 100X magnification for reliable dimensional measurements and microscopic observation.
Product Specification
The Travelling Microscope (MT-273 Series) is a high-precision laboratory instrument developed for accurate measurement of small distances and detailed observation of fine objects. Manufactured by Micro Technologies, it is widely used in physics laboratories, engineering colleges, research institutes, industrial quality control departments, and educational institutions.
The microscope is built on a heavy-duty cast iron base with a precision-machined V-top surface that ensures excellent rigidity and stability during operation. Three leveling screws allow accurate alignment on laboratory benches, minimizing measurement errors caused by uneven surfaces.
The instrument incorporates a precision metallic carriage with spring-loaded movement, enabling smooth and accurate travel along both X and Y axes. High-quality vernier scales provide precise readings with excellent repeatability, making the microscope suitable for experiments requiring high measurement accuracy.
The microscope features a 100X optical magnification, allowing users to examine small components, engraved markings, fibers, biological specimens, and precision mechanical parts with clarity. Its precision lead screw mechanism ensures controlled movement during measurement procedures.
The MT-273 Series is extensively used for measuring small dimensions, determining refractive index, observing capillary action, conducting optical experiments, and inspecting textile fibers, printed circuit boards (PCB), precision machined components, skin samples, hair fibers, and microbiological specimens.
Manufactured by Micro Technologies, every Travelling Microscope undergoes stringent quality inspection to ensure reliable performance, high measuring accuracy, and long operational life. The MT-273 Series is trusted by universities, research laboratories, industrial testing facilities, calibration laboratories, and quality assurance departments.
Features
- Heavy-duty cast iron construction
- Precision machined V-top base
- Three-point leveling system
- Metallic carriage with spring loading
- Precision vernier scales
- Smooth X and Y movement
- High measuring accuracy
- 100X optical magnification
- Precision lead screw mechanism
- Stable laboratory construction
- Easy operation
- Long service life
Benefits
- Highly accurate linear measurements
- Smooth precision movement
- Excellent optical clarity
- Reliable experimental results
- Stable during operation
- Suitable for laboratory research
- Durable industrial construction
- Low maintenance
- Easy calibration
- Long operational life
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Travelling Microscope (MT-273 Series) |
| Product Type | Precision Measuring Microscope |
| Base Material | Heavy-Duty Cast Iron |
| Base Surface | Precision Machined V-Top |
| Leveling | Three Leveling Screws |
| Vernier Least Count | 0.001 mm |
| Travel (X-Axis) | 150 mm |
| Travel (Y-Axis) | 100 mm |
| Main Screw Length | 200 mm |
| Main Screw Pitch | 1 mm |
| Screw Travel Length | 140 mm |
| Screw Pitch | 1 mm |
| Magnification | 100X |
| Applications | Physics Laboratories, Engineering Measurements, Industrial Inspection, Optical Experiments |
Available Models
| Model | Description |
|---|---|
| MT-273(A) | Standard Travelling Microscope |
Optional Accessories
- Digital Readout System
- Calibration Certificate
- Protective Dust Cover
- Carrying Case
- Extra Eyepiece
- LED Illumination Attachment
- Spare Vernier Scale
- Tool Kit
SKU System
- MT-273-A
FAQs
What is the MT-273 Travelling Microscope used for?
The MT-273 Series is used for precision linear measurements, optical experiments, engineering measurements, physics laboratory experiments, and industrial inspection.
What is the least count of the vernier scale?
The microscope provides a least count of 0.001 mm, enabling highly accurate measurements.
What is the travel range of the microscope?
The microscope offers 150 mm travel in the X-direction and 100 mm travel in the Y-direction.
What magnification does the microscope provide?
The MT-273 Series provides 100X optical magnification for precise observation and measurement.
Which industries commonly use this microscope?
It is widely used in engineering laboratories, physics departments, textile inspection, PCB inspection, calibration laboratories, quality control facilities, research institutes, and educational institutions.
Can the microscope be used for industrial inspection?
Yes. It is suitable for inspecting precision components, printed circuit boards, textile fibers, hair, skin samples, and other fine materials requiring accurate measurement.
Can the MT-273 Series be supplied in bulk?
Yes. Micro Technologies offers OEM manufacturing, institutional procurement, government tender supply, distributor support, export orders, and bulk laboratory equipment supply.
Why Choose Our Products
- Precision measurement accuracy
- Heavy-duty cast iron construction
- Smooth X-Y movement
- High optical magnification
- Stable laboratory performance
- Reliable engineering measurements
- OEM and customized manufacturing
- Competitive pricing
- Bulk supply capability
- Strict quality inspection
- Professional technical support
- Reliable after-sales service
Call to Action
Looking for a reliable Travelling Microscope (MT-273 Series)? Micro Technologies manufactures and supplies high-precision travelling microscopes designed for physics laboratories, engineering colleges, research institutes, industrial quality control departments, calibration laboratories, and educational institutions. Contact us today for customized specifications, OEM manufacturing, government tenders, distributor inquiries, bulk orders, or a competitive quotation.
