Transparent Wire Wound Resistance Coil
Product Specification Sheet

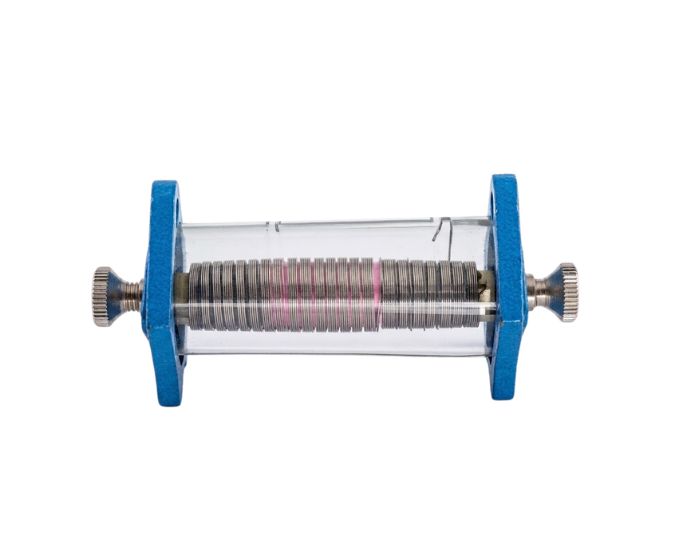

Transparent Wire Wound Resistance Coil
Model Number: MT-1004
The Transparent Wire Wound Resistance Coil from Micro Technologies is a fixed-resistance laboratory component featuring a transparent body that allows the internal wire winding to remain visible. The MT-1004 Series is designed for convenient integration into electrical circuits and is available in eight resistance values ranging from 0.5 Ω to 100 Ω, making it suitable for electrical measurements, circuit studies, and laboratory experiments.
Product Specification
The Transparent Wire Wound Resistance Coil from Micro Technologies is a compact electrical laboratory component designed to provide a known fixed resistance in experimental circuits. Its transparent construction provides clear visibility of the internal wire-wound element while allowing the unit to be conveniently incorporated into laboratory circuit arrangements.
The MT-1004 Series uses a wire-wound resistance element housed inside a transparent cylindrical body. The visible construction makes it particularly useful in laboratory environments where the physical arrangement of a resistance coil needs to be observed alongside its electrical function.
Terminal connections are provided at both ends of the resistance coil for convenient integration with compatible laboratory leads and circuit components. This arrangement makes the unit straightforward to connect, disconnect, and reposition during practical experiments.
The series is offered in several fixed resistance values to meet different circuit requirements. Available options include 0.5 Ω, 1 Ω, 3 Ω, 5 Ω, 10 Ω, 20 Ω, 50 Ω, and 100 Ω.
Each resistance value is provided under a separate Micro Technologies model number, enabling easy identification and selection according to the experimental requirement. The compact design also makes the coils convenient to store and organize as part of a laboratory electrical apparatus collection.
Manufactured and supplied by Micro Technologies, the Transparent Wire Wound Resistance Coil is suitable for physics laboratories, electrical laboratories, electronics laboratories, research facilities, testing laboratories, colleges, universities, and other environments requiring fixed resistance components.
Features
- Transparent cylindrical construction
- Visible wire-wound resistance element
- Fixed resistance configuration
- Terminal connections at both ends
- Eight resistance values available
- Range from 0.5 Ω to 100 Ω
- Compact laboratory design
- Convenient circuit integration
- Easy identification of individual resistance values
- Suitable for repeated laboratory use
Benefits
- Transparent body provides visibility of the internal coil
- Provides known fixed resistance for circuit experiments
- Multiple resistance options suit different requirements
- Terminal arrangement simplifies circuit connection
- Compact construction saves laboratory bench space
- Useful for resistance and electrical circuit studies
- Simple design provides convenient handling and storage
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Transparent Wire Wound Resistance Coil |
| Model Series | MT-1004 Series |
| Product Type | Fixed Laboratory Resistance Coil |
| Body Type | Transparent |
| Resistance Element | Wire Wound |
| Configuration | Cylindrical |
| Resistance Type | Fixed |
| Minimum Resistance | 0.5 Ω |
| Maximum Resistance | 100 Ω |
| Available Values | 0.5, 1, 3, 5, 10, 20, 50 & 100 Ω |
| Connection | End Terminals |
| Application | Circuit Experiments & Resistance Studies |
Available Models & Resistance Values
| Model No. | Resistance |
|---|---|
| MT-1004A | 0.5 Ω |
| MT-1004B | 1 Ω |
| MT-1004C | 3 Ω |
| MT-1004D | 5 Ω |
| MT-1004E | 10 Ω |
| MT-1004F | 20 Ω |
| MT-1004G | 50 Ω |
| MT-1004H | 100 Ω |
Applications
- Resistance measurement experiments
- Ohm's law experiments
- Series circuit studies
- Parallel circuit studies
- Current and voltage experiments
- Electrical circuit testing
- Physics laboratory practicals
- Electronics laboratory experiments
- Resistance comparison experiments
- General electrical demonstrations
Available Variants
0.5 Ohm Transparent Resistance Coil, 1 Ohm Transparent Resistance Coil, 3 Ohm Transparent Resistance Coil, 5 Ohm Transparent Resistance Coil, 10 Ohm Transparent Resistance Coil, 20 Ohm Transparent Resistance Coil, 50 Ohm Transparent Resistance Coil, 100 Ohm Transparent Resistance Coil
SKU System
MT-TRC-1004A, MT-TRC-1004B, MT-TRC-1004C, MT-TRC-1004D, MT-TRC-1004E, MT-TRC-1004F, MT-TRC-1004G, MT-TRC-1004H
FAQs
What is a Transparent Wire Wound Resistance Coil used for?
It is used to provide a known fixed resistance in electrical circuits for resistance measurements, current-voltage studies, circuit experiments, and other laboratory applications.
What is the model series of this Resistance Coil?
The Micro Technologies model series is MT-1004 Series.
What resistance values are available?
The series is available in 0.5 Ω, 1 Ω, 3 Ω, 5 Ω, 10 Ω, 20 Ω, 50 Ω, and 100 Ω.
What is the advantage of the transparent body?
The transparent construction allows the internal wire-wound resistance element to remain visible, making the physical construction of the component easy to observe.
Which model provides 50 Ohm resistance?
The MT-1004G model provides a fixed resistance of 50 Ω.
Which model provides 100 Ohm resistance?
The MT-1004H model provides a fixed resistance of 100 Ω.
Is the resistance fixed or adjustable?
The MT-1004 Series consists of fixed-resistance coils, with each model providing a specified resistance value.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Transparent body with visible wire winding
- Eight fixed resistance values
- Range from 0.5 Ω to 100 Ω
- Compact circuit-friendly construction
- Suitable for bulk and institutional procurement
- OEM and distributor supply available
Call to Action
Choose the Transparent Wire Wound Resistance Coil – MT-1004 Series from Micro Technologies for reliable fixed resistance in electrical and physics laboratory applications. Contact us today for bulk orders, institutional requirements, OEM supply, distributor inquiries, and customized quotations.
