Tangent Galvanometer – Current & Magnetic Field Apparatus
Product Specification Sheet
Tangent Galvanometer – Current & Magnetic Field Apparatus
Model Number: MTMI-02
The Tangent Galvanometer is designed to investigate the magnetic field produced by an electric current. It allows users to study how current direction, coil turns, and applied voltage affect magnetic-field strength and direction. The compact apparatus provides clear observations of electromagnetic effects and is supplied with complete operating instructions.
Product Specification
The Tangent Galvanometer is a practical apparatus designed to investigate the magnetic field produced by an electric current. It provides a clear experimental arrangement for observing how a current-carrying coil generates a magnetic field and how the strength of this field changes under different electrical conditions.
When current passes through the coil, a magnetic field is produced around it. The apparatus allows this magnetic effect to be observed and investigated in relation to the direction and magnitude of the applied current.

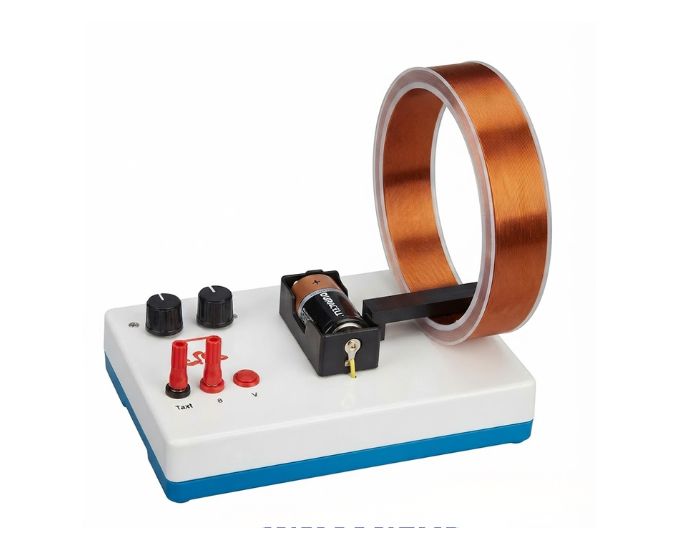

Micro Technologies supplies the apparatus with a coil assembly, electrical terminals, control arrangement, and an integrated magnetic indicator for performing controlled magnetism experiments.
One of the important investigations possible with this apparatus is the relationship between magnetic-field strength and the number of turns in the coil. Increasing or changing the effective number of coil turns allows the resulting magnetic effect to be compared.
The apparatus can also be used to investigate how magnetic-field strength changes with the voltage applied across the coils and the resulting electric current.
Another important observation is that a current-carrying conductor produces a magnetic field oriented relative to the direction of current. Reversing the current direction produces a corresponding reversal in the magnetic-field direction.
The Tangent Galvanometer therefore provides a convenient experimental platform for studying the relationship between electric current, coil turns, applied voltage, magnetic-field strength, and magnetic-field direction.
Complete operating instructions are supplied with the apparatus for convenient setup and experimental use.
Features
- Tangent Galvanometer apparatus
- Current-carrying coil arrangement
- Demonstrates magnetic field produced by electric current
- Investigates magnetic-field direction
- Investigates magnetic-field strength
- Allows current variation experiments
- Supports coil-turn comparison
- Supports applied-voltage investigations
- Electrical connection terminals provided
- Integrated magnetic indication arrangement
- Compact bench-top construction
- Complete instructions supplied
- Suitable for repeated experiments
Benefits
- Clearly demonstrates the magnetic effect of electric current
- Allows magnetic-field strength to be compared under different conditions
- Helps investigate the relationship between current and magnetic field
- Supports experiments with different effective coil turns
- Demonstrates the effect of changing applied voltage
- Shows the effect of reversing current direction
- Integrated construction reduces experimental setup
- Provides both qualitative and comparative observations
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Tangent Galvanometer |
| Internal Model No. | MT-41187N |
| Product Type | Current & Magnetic Field Investigation Apparatus |
| Experimental Element | Current-Carrying Coil |
| Magnetic Indicator | Integrated |
| Electrical Connections | Terminal Connections |
| Variable Parameters | Current, Voltage & Coil Turns |
| Primary Investigation | Magnetic Field Produced by Current |
| Field Direction Investigation | Supported |
| Field Strength Investigation | Supported |
| Current Reversal Experiment | Supported |
| Instructions | Included |
| Primary Application | Electricity & Magnetism Experiments |
Applications
- Tangent galvanometer experiments
- Magnetic field produced by current
- Current-carrying coil experiments
- Magnetic-field strength investigations
- Magnetic-field direction experiments
- Current versus magnetic-field experiments
- Coil turns versus magnetic-field strength
- Applied voltage experiments
- Current reversal investigations
- Electromagnetism experiments
Available Variants
- MT-41187N – Tangent Galvanometer
- Current & Magnetic Field Demonstrator
- Coil Magnetic Field Investigation Apparatus
- Magnetic Field Strength Demonstrator
- Customized configurations for bulk requirements
FAQs
What is a Tangent Galvanometer used for?
It is used to investigate magnetic fields produced by electric current and study how magnetic-field strength and direction vary under different experimental conditions.
What happens when current passes through the coil?
The current-carrying coil produces a magnetic field that can be observed using the magnetic indication arrangement of the apparatus.
Can magnetic-field strength be investigated?
Yes. The apparatus allows changes in magnetic-field strength to be investigated by varying experimental parameters such as current, applied voltage, and coil turns.
Can the effect of coil turns be investigated?
Yes. The apparatus can be used to demonstrate how the magnetic field varies with the number of effective turns in the coil.
Can the effect of applied voltage be studied?
Yes. The voltage applied across the coil can be varied under suitable experimental conditions to investigate the resulting changes in current and magnetic-field strength.
What happens when the current direction is reversed?
Reversing the current reverses the direction of the magnetic field generated by the coil.
Does magnetic-field strength depend on current?
Yes. Under a fixed coil configuration, increasing current increases the magnetic field produced by the coil.
Can the relationship between electricity and magnetism be demonstrated?
Yes. The apparatus clearly demonstrates that an electric current produces a magnetic field.
Does the apparatus require an external electrical supply?
A suitable controlled electrical supply is required to pass current through the coil during experiments.
Are electrical terminals provided?
Yes. Electrical connection terminals are incorporated into the apparatus for experimental circuit connections.
Are operating instructions supplied?
Yes. Complete instructions are provided with the standard apparatus.
Can Tangent Galvanometers be supplied in bulk?
Yes. Micro Technologies can supply Tangent Galvanometers for bulk orders, laboratory procurement, distributors, universities, colleges, research facilities, and scientific equipment requirements.
Why Choose Our Products
- Clear current and magnetic-field demonstration
- Coil-based experimental arrangement
- Magnetic-field strength investigations
- Current and voltage comparison
- Coil-turn experiments
- Current reversal demonstrations
- Complete instructions supplied
- Compact and reusable construction
- Bulk supply available
Call to Action
Explore the relationship between electric current and magnetic fields with the Tangent Galvanometer from Micro Technologies. Contact us for quotations, bulk orders, distributor requirements, institutional procurement, and complete magnetism and electromagnetism laboratory equipment solutions.
