System of Pulleys Demonstration Apparatus
Product Specification Sheet

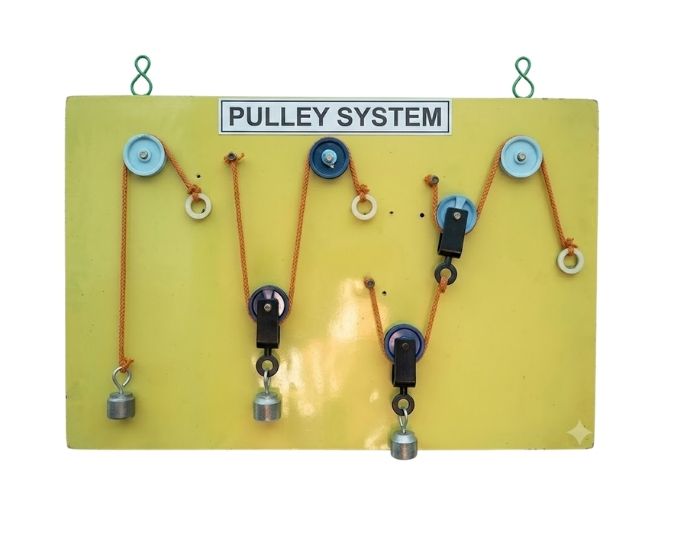

System of Pulleys Demonstration Apparatus
Model Number: MT-1294
The System of Pulleys Demonstration Apparatus from Micro Technologies is a complete mechanics demonstration setup designed for practical investigation of fixed pulleys, movable pulleys, compound pulley arrangements, effort, load, tension and mechanical advantage. The MT-1294 incorporates multiple pulley configurations mounted on a demonstration board for clear observation and comparative experiments.
Product Specification
The System of Pulleys Demonstration Apparatus from Micro Technologies is designed for practical physics and mechanics laboratory investigations involving different pulley arrangements. The apparatus brings multiple pulley configurations together on a common demonstration board, making it convenient to compare their mechanical behaviour.
The MT-1294 incorporates a combination of fixed and movable pulley arrangements with suitable cords and attachment points. The open board-mounted construction keeps the complete cord path, pulley movement and load arrangement clearly visible during experiments.
The apparatus can be used to investigate the fundamental relationship between load and effort in different pulley systems. By comparing the applied effort with the supported load, users can study how pulley arrangements influence mechanical advantage.
Fixed pulley arrangements can be used to demonstrate how a pulley changes the direction of an applied force, while movable pulley arrangements illustrate how multiple supporting sections of cord can reduce the effort required to support or raise a load.
Compound configurations combine fixed and movable pulleys, allowing more detailed investigation of mechanical advantage, tension and load distribution. This makes the apparatus useful for comparative mechanics experiments using a single integrated setup.
The visible cord paths help demonstrate how tension is transmitted through a pulley system. Users can examine the relationship between the number of supporting cord sections and the resulting theoretical mechanical advantage.
The board-mounted configuration keeps the components organized and provides convenient access during laboratory demonstrations. It also eliminates the need to assemble every pulley arrangement separately before basic experiments.
The apparatus can support discussions and experiments involving simple machines, force multiplication, direction of effort, load lifting, tension and mechanical efficiency.
Manufactured and supplied by Micro Technologies, the System of Pulleys Demonstration Apparatus is suitable for physics laboratories, mechanics laboratories, engineering laboratories, research and demonstration facilities and technical training applications.
Features
- Complete system of pulleys demonstration setup
- Multiple pulley arrangements
- Fixed pulley configuration
- Movable pulley configuration
- Compound pulley arrangements
- Visible cord paths
- Board-mounted construction
- Load and effort demonstration
- Mechanical advantage investigation
- Tension and force-distribution study
- Clear component arrangement
- Suitable for comparative experiments
- Compact laboratory demonstration setup
Benefits
- Demonstrates several pulley principles using one apparatus
- Helps compare fixed and movable pulley systems
- Provides practical investigation of mechanical advantage
- Demonstrates load and effort relationships
- Helps visualize tension through pulley systems
- Useful for studying force direction and force multiplication
- Board-mounted construction keeps experiments organized
- Suitable for repeated mechanics demonstrations
Product Specifications
| Specification | Details |
|---|---|
| Product Name | System of Pulleys Demonstration Apparatus |
| Model No. | MT-1294 |
| Product Type | Mechanics Demonstration Apparatus |
| Pulley System | Multiple |
| Pulley Arrangements | Fixed, Movable & Compound |
| Mounting | Demonstration Board |
| Cord Arrangement | Visible |
| Parameters Studied | Load, Effort, Tension & Mechanical Advantage |
| Application | Pulley Mechanics Experiments |
| Configuration | Laboratory Demonstration Type |
Available Model
| Model No. | Product |
|---|---|
| MT-1294 | System of Pulleys Demonstration Apparatus |
Applications
- System of pulleys experiments
- Fixed pulley demonstrations
- Movable pulley demonstrations
- Compound pulley investigations
- Mechanical advantage experiments
- Load and effort comparison
- Force multiplication demonstrations
- Tension investigations
- Load-distribution studies
- Simple machine experiments
- Physics laboratory demonstrations
- Mechanics laboratory experiments
Available Variants
System of Pulleys Apparatus, Pulley System Demonstrator, Multiple Pulley System, Fixed and Movable Pulley Apparatus, Compound Pulley Apparatus, Mechanical Advantage Apparatus, Pulley Mechanics Demonstrator, Laboratory Pulley System
SKU System
MT-SOP-1294
FAQs
What is the System of Pulleys Apparatus used for?
The apparatus is designed for experiments involving fixed and movable pulleys, load, effort, tension, force direction and mechanical advantage.
What types of pulley arrangements can be demonstrated?
The apparatus provides multiple arrangements that can support demonstrations of fixed, movable and compound pulley systems.
Can mechanical advantage be investigated?
Yes. The setup can be used to compare load and effort and investigate mechanical advantage for different pulley configurations.
Can fixed and movable pulleys be compared?
Yes. One of the main benefits of the apparatus is the ability to compare the behaviour of fixed and movable pulley arrangements within a common setup.
What does a fixed pulley demonstrate?
A fixed pulley primarily demonstrates how the direction of an applied force can be changed while lifting or supporting a load.
What does a movable pulley demonstrate?
A movable pulley can demonstrate how a load may be supported by multiple cord sections, thereby providing mechanical advantage in an appropriate arrangement.
Can tension be investigated with this apparatus?
Yes. The visible cord arrangements make the apparatus useful for studying tension and force transmission through pulley systems.
Where can the System of Pulleys Apparatus be used?
It is suitable for physics laboratories, mechanics laboratories, engineering laboratories and technical demonstration facilities.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Multiple pulley configurations in one setup
- Fixed, movable and compound pulley demonstrations
- Clear board-mounted arrangement
- Suitable for mechanical advantage experiments
- Convenient for comparative mechanics demonstrations
- Durable and reusable laboratory apparatus
- Institutional, OEM and bulk supply available
Call to Action
Equip your laboratory with the System of Pulleys Demonstration Apparatus – MT-1294 from Micro Technologies for practical investigations of fixed and movable pulleys, mechanical advantage, tension, load and effort. Contact us for competitive pricing, institutional procurement, bulk orders, OEM supply and customized quotations.
