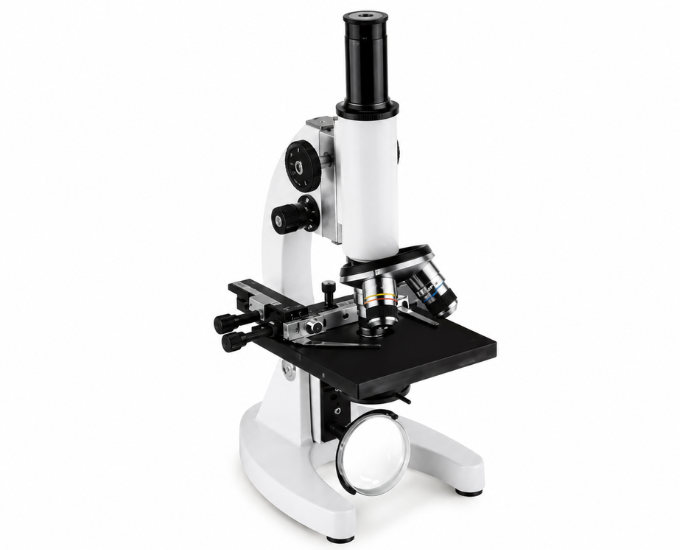

Student Monocular Biological Microscope with LED Illumination
Product Specification Sheet
Student Monocular Biological Microscope with LED Illumination
Model Number: MTM-039
The Student Monocular Biological Microscope from Micro Technologies is designed for schools, colleges, biology laboratories, and training institutes. Featuring achromatic objectives, an Abbe condenser, precision focusing, and dual illumination options, it delivers clear and accurate microscopic observations for educational and laboratory applications.
Product Specification
The Student Monocular Biological Microscope with LED Illumination is a reliable and easy-to-use laboratory microscope developed for biology education, routine laboratory analysis, and scientific training. Manufactured with high-quality optical components and a durable laboratory-grade body, it offers excellent image clarity, smooth focusing, and dependable performance for long-term use.
The microscope features a monocular viewing head equipped with Huygens H10X and H16X eyepieces, providing comfortable viewing and multiple magnification options. It is fitted with 5X, 10X, and 40X achromatic objective lenses, delivering bright, sharp, and distortion-free images suitable for observing biological specimens, plant tissues, microorganisms, and prepared slides.
A 120 × 120 mm plain stage with a specimen holder securely supports microscope slides during observation. The N.A. 1.25 Abbe condenser with an iris diaphragm and filter holder ensures optimal light control and enhanced image contrast for accurate specimen examination.
The microscope incorporates a 50 mm coarse adjustment range and a 1.8–2.2 mm fine adjustment range, enabling smooth focusing and precise image refinement. Illumination is provided by a 50 mm concave-plan reflector along with an integrated LED lighting system, offering flexible lighting options for different laboratory environments.
Designed for educational and laboratory use, this microscope is ideal for schools, colleges, universities, biology laboratories, training centers, and research institutes. Micro Technologies supplies this microscope for institutional procurement, educational projects, OEM manufacturing, distributor partnerships, and government laboratory programs.
Features
- Monocular viewing head
- Huygens H10X and H16X eyepieces
- 5X, 10X, and 40X achromatic objective lenses
- 120 × 120 mm plain stage with specimen holder
- N.A. 1.25 Abbe condenser with iris diaphragm and filter holder
- 50 mm coarse focusing adjustment
- 1.8–2.2 mm fine focusing adjustment
- 50 mm concave-plan reflector
- Integrated LED illumination
- Rugged laboratory-grade construction
Benefits
- Produces bright and sharp microscopic images
- Easy operation for students and laboratory professionals
- Smooth focusing for accurate specimen observation
- Dual illumination options for versatile use
- Durable design ensures long service life
- Suitable for biology education and routine laboratory work
- Cost-effective solution for educational institutions
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Student Monocular Biological Microscope with LED Illumination |
| Model No. | MTM-039 |
| Product Type | Biological Compound Microscope |
| Viewing Head | Monocular |
| Eyepieces | H10X, H16X Huygens |
| Objectives | Achromatic 5X, 10X, 40X |
| Stage | Plain Stage with Specimen Holder |
| Stage Size | 120 × 120 mm |
| Condenser | N.A. 1.25 Abbe Condenser with Iris Diaphragm & Filter Holder |
| Coarse Adjustment Range | 50 mm |
| Fine Adjustment Range | 1.8–2.2 mm |
| Illumination | 50 mm Concave-Plan Reflector and LED |
| Body Material | Laboratory Grade Metal |
| Usage/Application | Schools, Colleges, Biology Laboratories, Universities, Research Institutes |
| Compliance Standard | Manufactured as per Standard Laboratory Equipment Practices |
Available Variants
- Student Biological Microscope
- Educational Monocular Microscope
- LED Laboratory Microscope
- Biology Teaching Microscope
- Compound Student Microscope
FAQs
Which eyepieces are included with this microscope?
The microscope includes Huygens H10X and H16X eyepieces for comfortable viewing and multiple magnification options.
What objective lenses are provided?
It comes with 5X, 10X, and 40X achromatic objective lenses for clear and detailed biological observation.
Does this microscope have LED illumination?
Yes. It includes an LED illumination system along with a 50 mm concave-plan reflector for flexible lighting.
Is this microscope suitable for schools and colleges?
Yes. It is specifically designed for schools, colleges, universities, biology laboratories, and training institutes.
What type of condenser does it use?
The microscope features an N.A. 1.25 Abbe condenser with an iris diaphragm and filter holder for improved illumination control.
Can institutions order this microscope in bulk?
Yes. Micro Technologies supplies this microscope in bulk for educational institutions, laboratories, distributors, OEM partners, and government procurement projects.
Why Choose Our Products
- Premium laboratory-grade optical instruments
- High-quality achromatic optics for superior image clarity
- Durable construction for long-term use
- Precision focusing for accurate observations
- Competitive pricing for institutional buyers
- Reliable technical support and after-sales service
- Bulk supply, OEM manufacturing, and export capabilities
