Student Microscope (MT-254 Series)
Product Specification Sheet
Student Microscope (MT-254 Series)
Model Number: MTSM-01

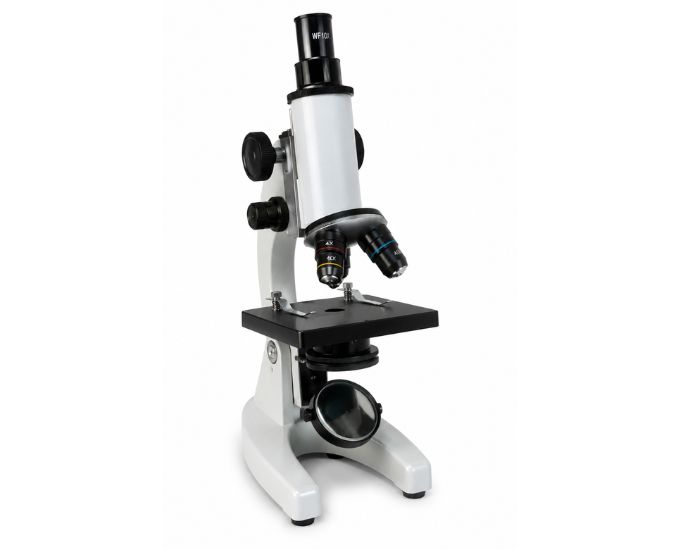

The Student Microscope (MT-254 Series) is a durable and easy-to-use compound microscope designed for schools, colleges, universities, biology laboratories, and educational institutions. Manufactured by Micro Technologies, it features a sturdy aluminum body, coarse and fine focusing, achromatic optics, triple revolving nosepiece, and mirror illumination for clear specimen observation and practical laboratory learning.
Product Specification
The Student Microscope (MT-254 Series) is a precision optical instrument specially developed for educational laboratories and science teaching applications. Manufactured by Micro Technologies, this microscope combines durable construction with quality optics to provide students with clear, accurate, and reliable specimen observation during laboratory experiments.
Built with a sturdy die-cast aluminum body, the microscope offers excellent stability and long service life. The body can be inclined up to 90°, allowing comfortable viewing during extended practical sessions while reducing operator fatigue.
The microscope is equipped with a 110 × 110 mm fixed square stage, providing stable support for microscope slides during examination. A triple revolving nosepiece with smooth click-stop mechanism enables quick and convenient objective selection during observation.
For precise image adjustment, the MT-254 Series incorporates both coarse and fine focusing knobs, allowing users to achieve sharp image resolution at different magnification levels. The optical system includes parfocal achromatic objectives (10x and 45x) together with a 10x Huygenian eyepiece, delivering bright, distortion-free images suitable for routine biological and educational studies.
A sub-stage Abbe condenser (N.A. 1.25) fitted with a fixed iris diaphragm enhances light concentration and image contrast. Illumination is provided through a reflecting mirror, making the microscope suitable for classroom and laboratory environments without requiring an integrated electric light source.
Manufactured by Micro Technologies, every Student Microscope undergoes strict quality inspection to ensure dependable optical performance, mechanical precision, and long operational life. The MT-254 Series is widely used in schools, colleges, universities, biology laboratories, educational institutions, medical training centres, and research laboratories.
Features
- Student compound microscope
- Heavy-duty die-cast aluminum body
- Body inclinable up to 90°
- Triple revolving nosepiece with click stops
- 110 × 110 mm fixed square stage
- Coarse and fine focusing controls
- Parfocal achromatic objectives
- 10x Huygenian eyepiece
- Abbe condenser (N.A. 1.25)
- Fixed iris diaphragm
- Mirror illumination system
- Sharp and clear image quality
- Durable laboratory construction
- Easy operation
- Long operational life
Benefits
- Ideal for student practical work
- Clear and accurate specimen observation
- Comfortable viewing position
- Smooth objective selection
- Precise image focusing
- Durable classroom construction
- Suitable for routine laboratory experiments
- Easy maintenance
- Reliable optical performance
- Long service life
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Student Microscope (MT-254 Series) |
| Product Type | Compound Educational Microscope |
| Body | Die-Cast Aluminum, Inclination up to 90° |
| Stage | Fixed Square Stage (110 × 110 mm) |
| Nosepiece | Triple Revolving with Click Stops |
| Focusing | Coarse & Fine Adjustment |
| Condenser | Abbe N.A. 1.25 |
| Diaphragm | Fixed Iris Diaphragm |
| Objectives | Achromatic 10x & 45x |
| Eyepiece | 10x Huygenian |
| Illumination | Reflecting Mirror |
| Applications | Biology, Zoology, Botany, Educational Laboratories |
Available Models
| Model | Description |
|---|---|
| MT-254(A) | Student Microscope |
Optional Accessories
- Mechanical Stage
- LED Illumination Kit
- Additional Achromatic Objectives
- Wide Field Eyepieces
- Dust Cover
- Wooden Carrying Case
- Prepared Slide Set
- Immersion Oil
SKU System
- MT-254-A
FAQs
What is the MT-254 Student Microscope used for?
The MT-254 Series is designed for biology, botany, zoology, microbiology, and general science education in schools, colleges, and universities.
What magnification does the microscope provide?
The microscope is supplied with 10x and 45x achromatic objectives along with a 10x Huygenian eyepiece, providing multiple magnification options.
Does the microscope have coarse and fine focusing?
Yes. The MT-254 Series features both coarse and fine focusing knobs for precise image adjustment.
What type of illumination is provided?
The microscope uses a reflecting mirror illumination system, making it suitable for routine educational laboratory use.
Is the microscope suitable for educational laboratories?
Yes. It is specifically designed for schools, colleges, universities, and science laboratories for practical teaching and demonstrations.
Can the MT-254 Series be supplied in bulk?
Yes. Micro Technologies offers OEM manufacturing, institutional procurement, government tender supply, distributor support, export orders, and bulk educational equipment supply.
