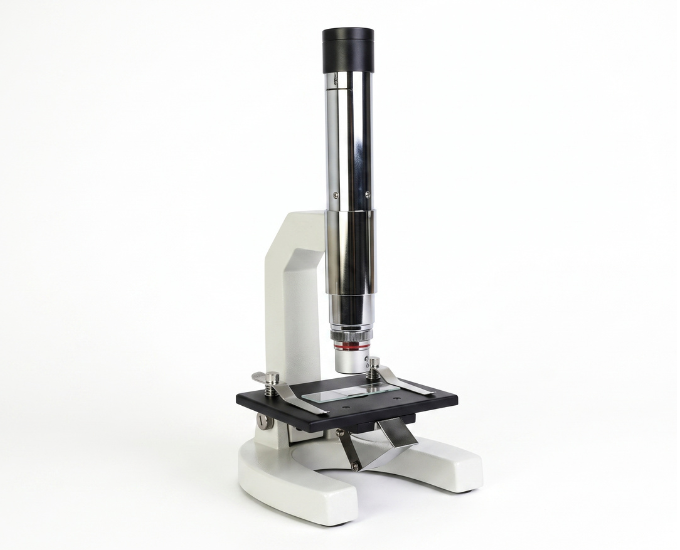

Straight Tube Monocular Student Microscope
Product Specification Sheet
Straight Tube Monocular Student Microscope
Model Number: MTM-040
The Straight Tube Monocular Student Microscope from Micro Technologies is designed for schools, science laboratories, and beginner microscopy applications. Featuring achromatic objectives, multiple magnification options, a vertical monocular head, and a lightweight design, it provides reliable performance for educational and laboratory training purposes.
Product Specification
The Straight Tube Monocular Student Microscope is a compact and user-friendly microscope developed for science education, laboratory demonstrations, and introductory biological studies. Built with durable materials and quality optical components, it provides clear image quality while remaining easy to operate, making it ideal for students and classroom environments.
The microscope features a vertical straight tube monocular head fitted with WF5X or WF10X plane-scope eyepieces, allowing users to choose suitable magnification levels based on their observation needs. It is equipped with a 45 mm achromatic objective lens available in 4X or 10X, producing sharp and distortion-free images.
Depending on the selected eyepiece and objective combination, the microscope offers 20X, 40X, 50X, or 100X total magnification, making it suitable for observing prepared slides, plant cells, insects, fibers, and other educational specimens.
The 95 × 80 mm plain stage with paired specimen clips securely holds microscope slides during observation. Focusing is achieved through a push-and-pull tube mechanism, allowing quick and simple image adjustment, making it especially suitable for beginner users.
The microscope incorporates a plastic prism light gathering system, providing efficient natural light collection for clear specimen viewing without requiring a complex illumination system.
Designed specifically for schools, training institutes, science laboratories, and educational institutions, this microscope offers an affordable and durable solution for introductory microscopy. Micro Technologies supplies this microscope for schools, colleges, laboratories, educational distributors, OEM manufacturing, and government educational projects.
Features
- Straight vertical monocular viewing tube
- 45 mm achromatic objective (4X or 10X)
- WF5X or WF10X plane-scope eyepiece
- Total magnification options: 20X, 40X, 50X, and 100X
- 95 × 80 mm plain stage with paired specimen clips
- Push-and-pull tube focusing mechanism
- Plastic prism light gathering system
- Compact and lightweight construction
- Easy operation for beginners
- Durable laboratory-grade design
Benefits
- Ideal for beginner microscopy and science education
- Produces clear images using achromatic optics
- Multiple magnification options for different specimens
- Simple focusing mechanism for easy operation
- Compact and portable for classroom use
- Durable construction for long service life
- Cost-effective solution for schools and training institutes
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Straight Tube Monocular Student Microscope |
| Model No. | MTM-040 |
| Product Type | Educational Monocular Microscope |
| Viewing Head | Vertical Straight Tube Monocular |
| Eyepiece | WF5X or WF10X Plane-Scope |
| Objective | 45 mm Achromatic Objective (4X or 10X) |
| Total Magnification | 20X, 40X, 50X, or 100X |
| Stage | Plain Stage with Paired Clips |
| Stage Size | 95 × 80 mm |
| Focusing System | Push-and-Pull Tube Focusing |
| Light System | Plastic Prism Light Gathering System |
| Body Material | Durable Engineering Plastic & Metal |
| Usage/Application | Schools, Colleges, Science Laboratories, Biology Education, Training Institutes |
| Compliance Standard | Manufactured as per Standard Educational Equipment Practices |
Available Variants
- Student Monocular Microscope
- Straight Tube Educational Microscope
- School Biology Microscope
- Beginner Laboratory Microscope
- Teaching Microscope
FAQs
What magnification levels are available?
The microscope offers 20X, 40X, 50X, and 100X total magnification, depending on the selected eyepiece and objective combination.
Which eyepieces are included?
It is available with WF5X or WF10X plane-scope eyepieces.
What type of objective lens does it use?
The microscope uses a 45 mm achromatic objective, available in 4X or 10X configurations.
How is focusing performed?
Focusing is achieved using a simple push-and-pull tube focusing mechanism, making it easy for students and beginners.
Is this microscope suitable for schools?
Yes. It is specifically designed for schools, colleges, science laboratories, and educational training institutes.
Can this microscope be supplied in bulk?
Yes. Micro Technologies supplies this microscope for schools, educational institutions, laboratory distributors, OEM partners, exporters, and government educational procurement projects.
Why Choose Our Products
- High-quality educational optical instruments
- Clear achromatic optics for accurate observation
- Lightweight and durable construction
- Easy-to-use design for students and beginners
- Competitive pricing for institutional purchases
- OEM and bulk supply available
- Reliable after-sales support and technical assistance
Call to Action
Equip your classrooms and laboratories with dependable microscopy solutions from Micro Technologies. Contact us today for bulk orders, institutional procurement, OEM manufacturing, distributor partnerships, export inquiries, or a customized quotation for our educational microscope range.
