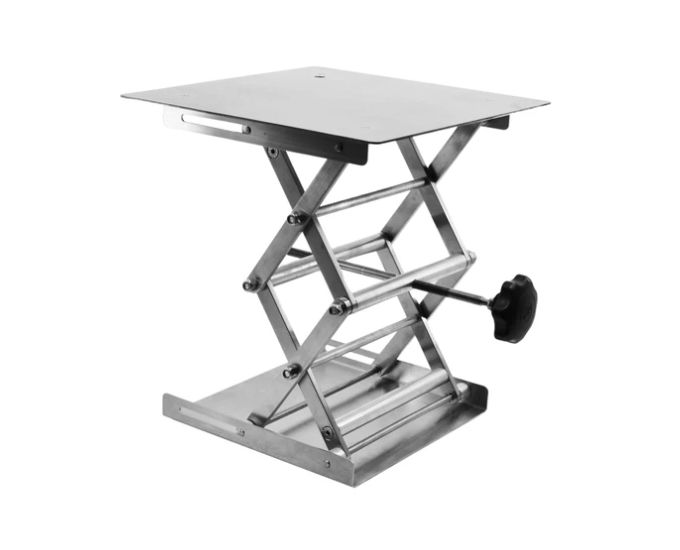

Stainless Steel Laboratory Jack, 25 x 25 cm

The Stainless Steel Laboratory Jack is a practical height-adjustment platform for laboratories where equipment needs to be raised or lowered accurately during an experiment. Its broad 25 x 25 cm stainless steel top surface provides a stable working area for supporting laboratory vessels, heating equipment and other compatible apparatus.

The jack uses a screw-operated lifting mechanism that allows smooth adjustment of the platform height. This makes it useful when the working distance between laboratory equipment needs to be changed during an experiment. Instead of using improvised supports or stacking objects beneath apparatus, the adjustable platform provides a more controlled and repeatable positioning method.

The stainless steel top plate offers a robust surface for routine laboratory use and is well suited to environments where equipment may be exposed to regular handling, cleaning and chemical laboratory operations. The platform measures 25 x 25 cm, providing sufficient working space for many common laboratory setups.

For stability, the unit incorporates slip-resistant rubber feet. These help maintain the jack's position on a laboratory bench while the height is adjusted or equipment is placed on the platform. The overall construction measures approximately 28 x 25 x 7 cm, with a product weight of around 3.6 kg.

The maximum opening height is approximately 28 cm. The manufacturer-listed dynamic load is 5 kg, while the static load rating is approximately 30 kg. Load requirements should always be considered according to the application and operating conditions rather than treating the static rating as a lifting capacity.

This laboratory jack can be used for positioning equipment during heating experiments, sample preparation, chemical reactions, microscopy setups and other laboratory procedures where controlled vertical adjustment is required. Its relatively large platform also makes it useful for supporting apparatus that needs a broader base.

Micro Technologies supplies this Stainless Steel Laboratory Jack for educational laboratories, research centers, pharmaceutical facilities and industrial testing environments. Its combination of adjustable height, stainless steel construction and stable footing makes it a useful addition to professional laboratory equipment inventories.

Features

• Stainless steel top plate for demanding laboratory use.
• 25 x 25 cm working platform.
• Smooth screw-operated height adjustment.
• Maximum opening height of approximately 28 cm.
• Slip-resistant rubber feet for improved bench stability.
• Approximate 5 kg dynamic load capacity.
• Approximate 30 kg static load capacity.
• Suitable for supporting and positioning laboratory apparatus.
• Overall dimensions approximately 28 x 25 x 7 cm.
• Approximate unit weight of 3.6 kg.

Benefits

• Controlled equipment positioning: Allows apparatus to be raised or lowered without changing the main laboratory setup.
• Stable working platform: Rubber feet help reduce unwanted movement on the bench.
• Durable working surface: Stainless steel construction provides a robust platform for routine laboratory applications.
• Better experimental flexibility: Adjustable height accommodates different apparatus sizes and working positions.
• Efficient laboratory setup: Reduces the need for makeshift supports during experiments.
• Suitable for repeated use: Robust mechanical construction supports regular laboratory operation.
• Procurement value: A versatile support accessory for chemistry, research and industrial laboratories.

Product Specifications

Specifications above are based on the available product information; the listed dimensions and load ratings are stated by the source manufacturer.

Available Variants

• 25 x 25 cm Stainless Steel Lab Jack
• Smaller and larger laboratory jack sizes can be supplied according to application requirements.
• Custom laboratory support configurations may be considered for suitable institutional requirements.

SKU System

• MT-LJ-2528 – 25 x 25 cm Stainless Steel Lab Jack
• MT-LJ-2528-BULK – Bulk Institutional Supply
• MT-LJ-2528-CUS – Custom Requirement

FAQs

What is a Stainless Steel Lab Jack used for?

A laboratory jack is used to raise, lower and position laboratory apparatus at a convenient working height.
It is useful in heating, reaction, sample preparation and equipment-support applications.
The adjustable platform helps provide controlled positioning during experiments.

What is the platform size of this lab jack?

The stainless steel top platform measures 25 x 25 cm.
This provides a reasonably broad support surface for laboratory apparatus and equipment.
The maximum platform height is approximately 28 cm.

How much load can the laboratory jack support?

The listed dynamic load capacity is approximately 5 kg, while the static load rating is approximately 30 kg.
The appropriate rating should be selected according to the actual application and movement conditions.
Users should avoid exceeding the specified operating limits.

Is the lab jack suitable for industrial and research laboratories?

Yes, its stainless steel construction and adjustable platform make it suitable for many professional laboratory environments.
It can be used in research, educational, pharmaceutical and industrial testing setups.
The supported equipment and load should always be compatible with the jack's specifications.

How is the Stainless Steel Lab Jack maintained?

Keep the platform clean and inspect the screw mechanism periodically for smooth movement.
Avoid excessive loads and protect the lifting mechanism from contamination that could interfere with adjustment.
The rubber feet should also be checked periodically for wear.

Can this laboratory jack be ordered in bulk?

Yes, bulk supply can be arranged for laboratories, educational institutions, distributors and industrial facilities.
Multiple units can be supplied according to project or procurement requirements.
Contact Micro Technologies with the required quantity for a commercial quotation.

Why Choose Our Products

• Reliable laboratory construction suitable for regular professional use.
• Quality-focused manufacturing with attention to platform stability and mechanical operation.
• Precision-oriented adjustment for controlled apparatus positioning.
• Durable stainless steel platform for demanding laboratory environments.
• Bulk supply capability for institutional, industrial and distributor requirements.

Call to Action

Upgrade your laboratory setup with a robust 25 x 25 cm Stainless Steel Lab Jack for controlled equipment positioning and height adjustment. Micro Technologies supports bulk inquiries, institutional procurement, distributor orders and quotation requests. Share your required quantity and application details to receive a suitable commercial quote.
